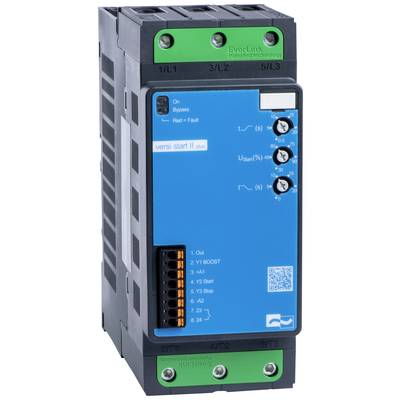

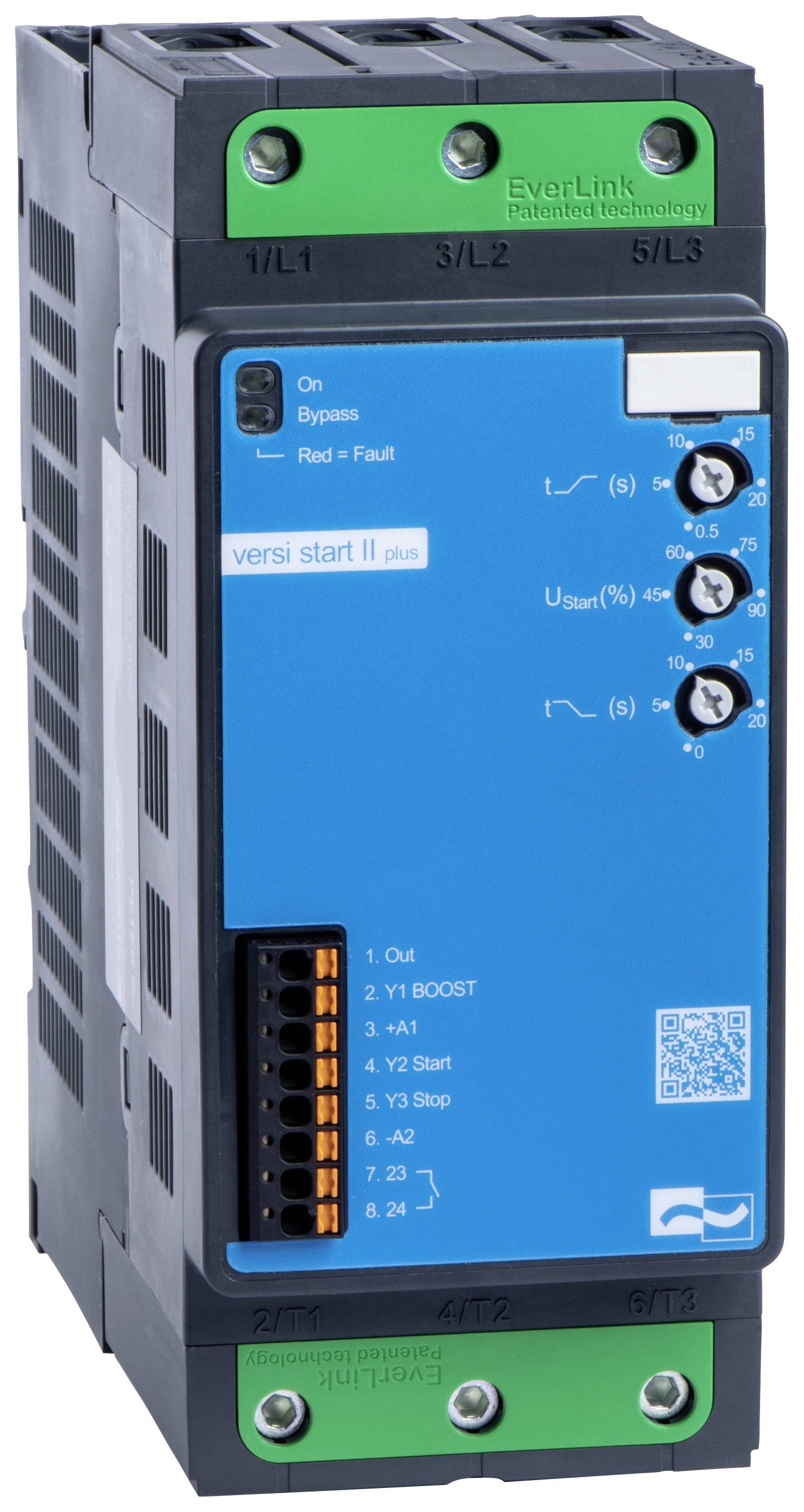

Peter Electronic VerssiStart II plus 480-80 B, 24VDC 26300.48080 Soft starter Motor power at 400 V 45 kW 480 V AC Nomina

The 2-phase soft starter VersiStart II plus (38 - 105A) was developed in order to master all the demanding soft-start and leak-off situations. The most common applications include pumps, fans, packaging machines, conveyor systems and door and door drives. The current and torque reductions achieved during start-up protect the motor from both electrical and mechanical points of view and ensure long-lasting system operation. The robust soft start-up device is extremely flexible and offers an ideal, application-oriented behavior in all operating states. Start and stop behavior can be individually configured via the adjuster, including entry of the start voltage. The main advantages of the 2-phase VersiStart II plus soft starters (38 - 105A) include the high maximum starting frequency, which allows several start-up cycles to be carried out within a very short time without any problems. The motor is protected by comprehensive, integrated protective functions. Permanent calculations of thermal images allow the associated motor to be switched off automatically during overload phases and the circuit to be interrupted to ensure maximum safety for the motor and soft starter. In addition, the soft starter takes over a number of other useful protection tasks, such as the diagnosis of undervoltage in the electronic supply, overheating, phase and ignition errors as well as other problems. Despite comprehensive equipment and performance, the 2-phase soft starter VersiStart II plus (38 - 65A) comes out with a compact housing of only 55 x 179 x 165 mm (width/depth/height) or the soft starter VersiStart II plus (80 - 105A) with 81 x 222 x 180 mm (width/depth/height).
