Pfannenberg 18611600036 Filter pad (W x H x D) 200 x 212 x 80 mm 5 pc(s)
EAN:
Part number:
Item no:
Product type
Filter pad
Width
200 mm
Height
212 mm
Depth
80 mm
Type
18611600036
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 3 Set(s) available
Highlights & Details

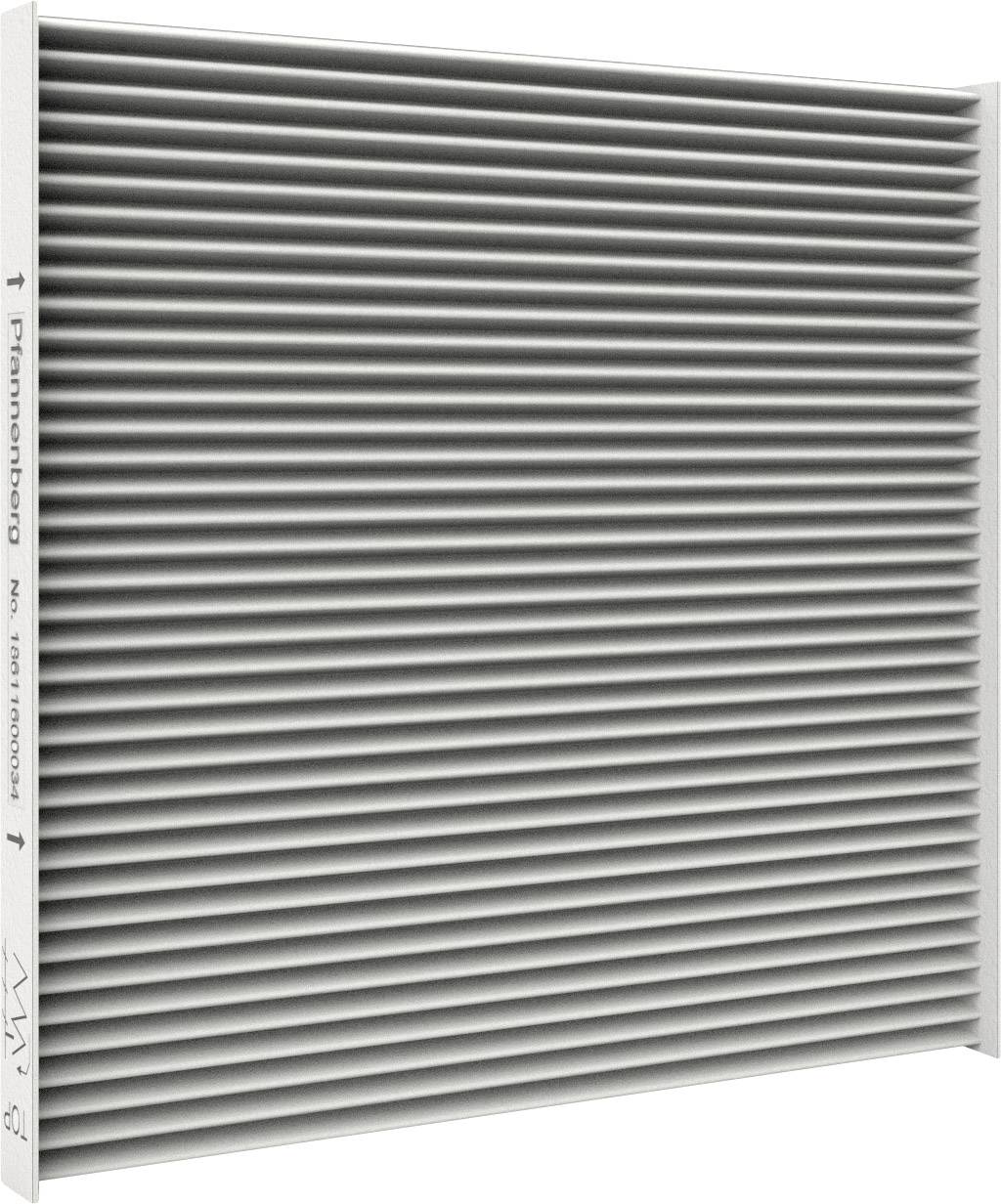

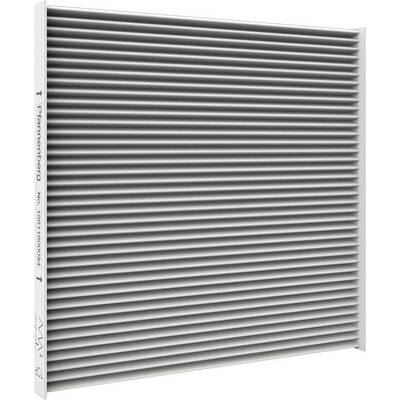

Original Pfannenberg replacement filter mat FFP (fluted filter) size 4, IP55, pack of 5
- Up to 300% longer service life compared to conventional fleece filter mats
- High protection class IP55 for demanding indoor and outdoor applications
- Effective protection against overheating, dust and dirt particles in the control cabinet
- Perfect fit for Pfannenberg filter fan and outlet filter size 4 (PF 4x.xxx / PFA 4x.xxx)
- Low maintenance: Saves time and costs due to longer replacement intervals
Technical specifications
- EMC type: No.
- Material: Plastic
- With filter mat: Yes
- Product type
Filter pad
- Type
18611600036
- Compatible with
Pfannenberg
- Factory colour
White
- Min. temperature
-40 °C
- Max. temperature
100 °C
IP55
- Width
200 mm
- Height
212 mm
- Depth
80 mm
- Dim
(W x H x D) 200 x 212 x 80 mm
- Weight
200 g
- Content
5 pc(s)
Documents & Downloads
Datasheet
Datasheet 3804682 Pfannenberg 18611600036 Filter pad (W x H x D) 200 x 212 x 80 mm 5 pc(s)
User & Safety Instructions
User & Safety Instructions 3804682 Pfannenberg 18611600036 Filter pad (W x H x D) 200 x 212 x 80 mm 5 pc(s)
Description
Secure your control cabinets reliably: The original Pfannenberg replacement filter mats provide optimum protection against overheating, short-circuits and flammable dust deposits in daily operation. Thanks to the innovative folded filter design the air throughput is optimally maintained, while particles are intercepted highly efficiently. The result is up to three times longer filter unit life compared to standard nonwoven materials. Trust certified quality to minimize unplanned system failures and costly maintenance.
This text is machine translated.
This text is machine translated.
Features
- High-quality, synthetic filter material (plastic / polyester)
- Pleated filter structure for maximized surface and constant air flow
- G4 as per EN 779 filter class
- Dimensions: 212 mm x 200 mm x 80 mm
Scope of delivery
- 1 pack of 5 spare filter mats (VE5)
