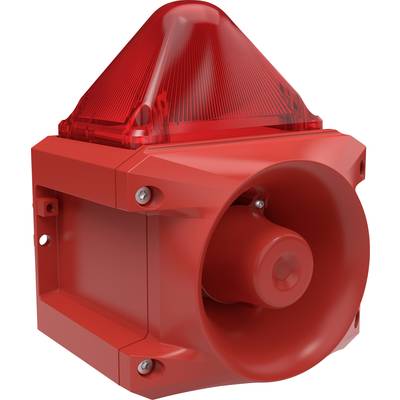

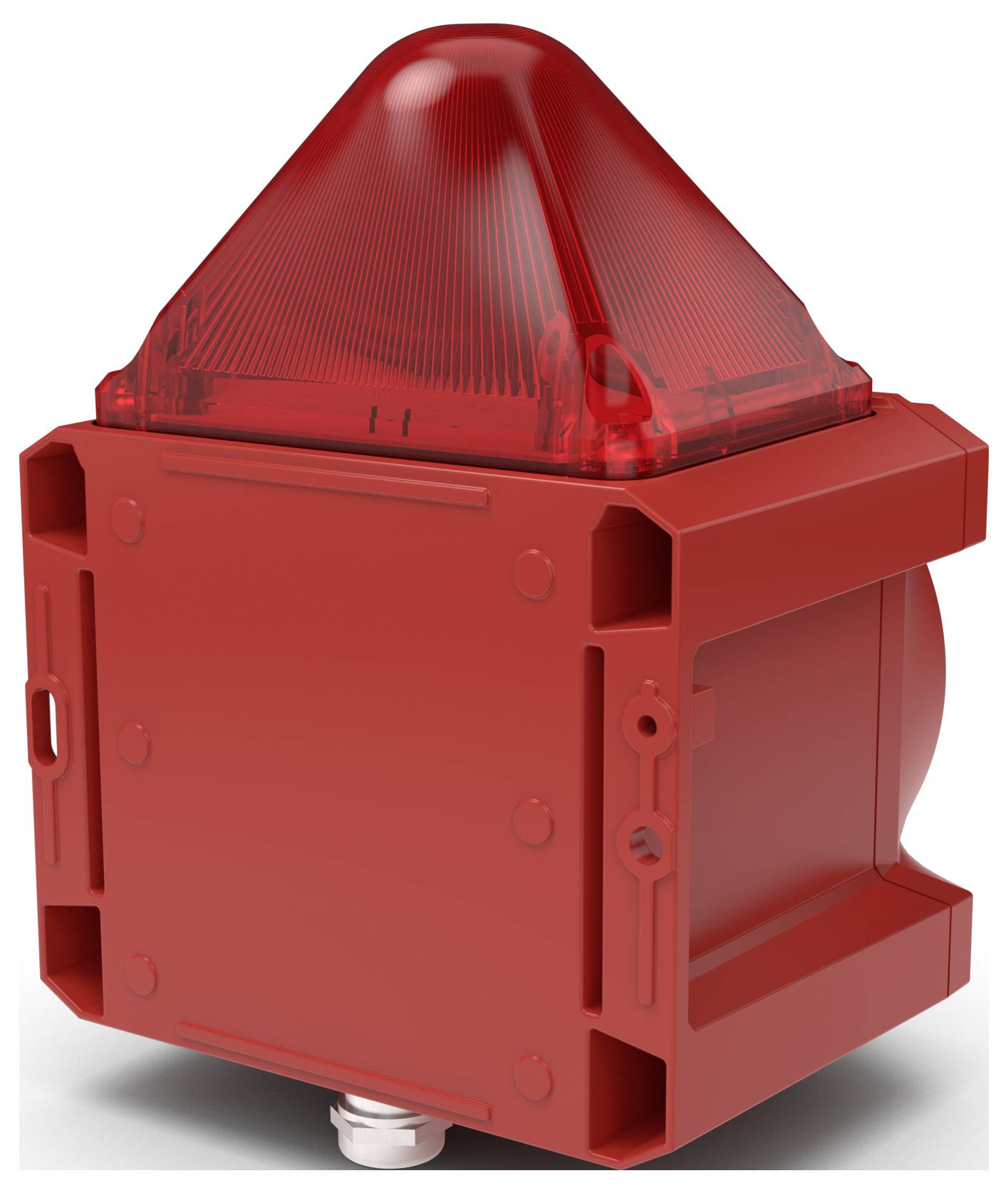

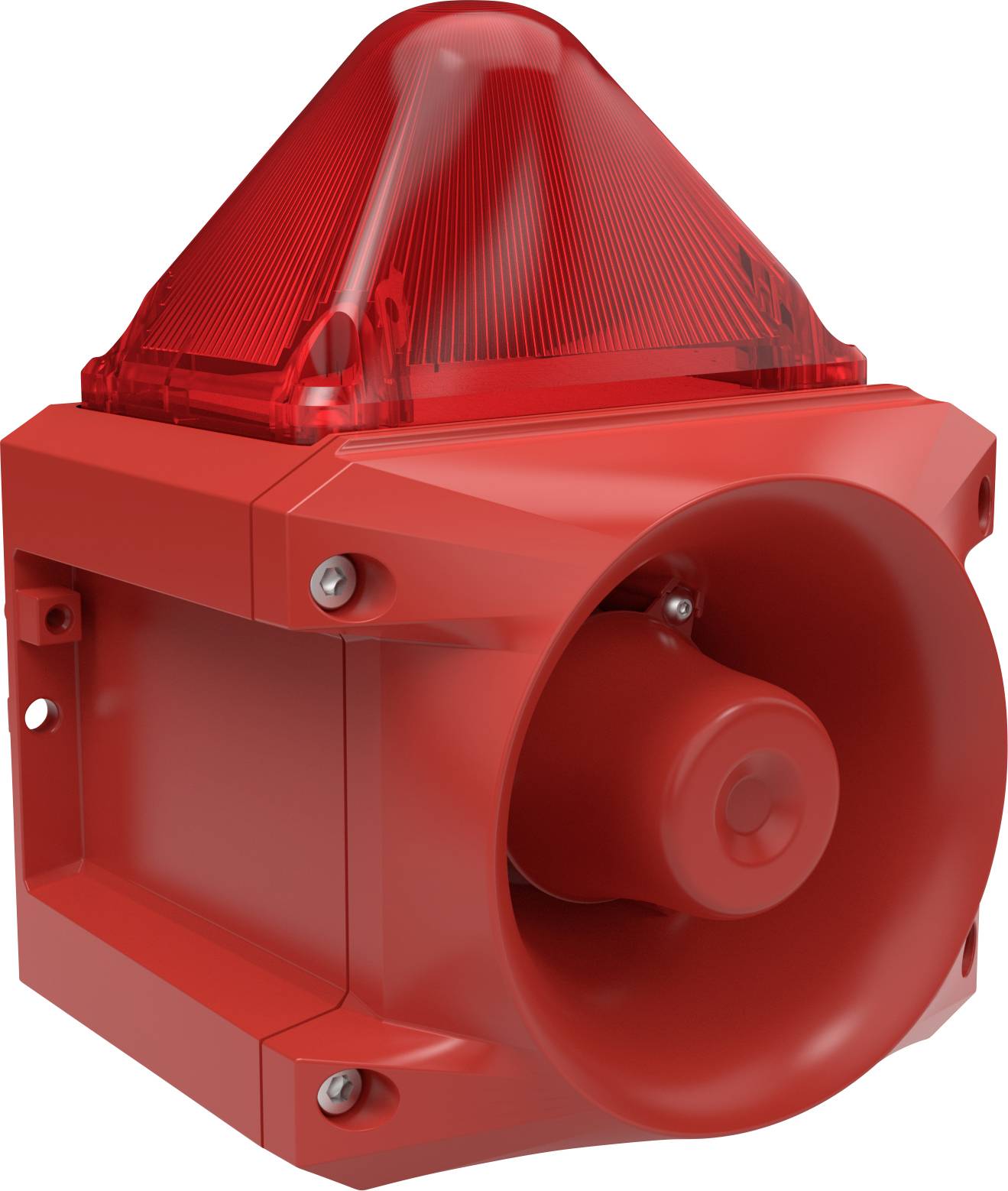

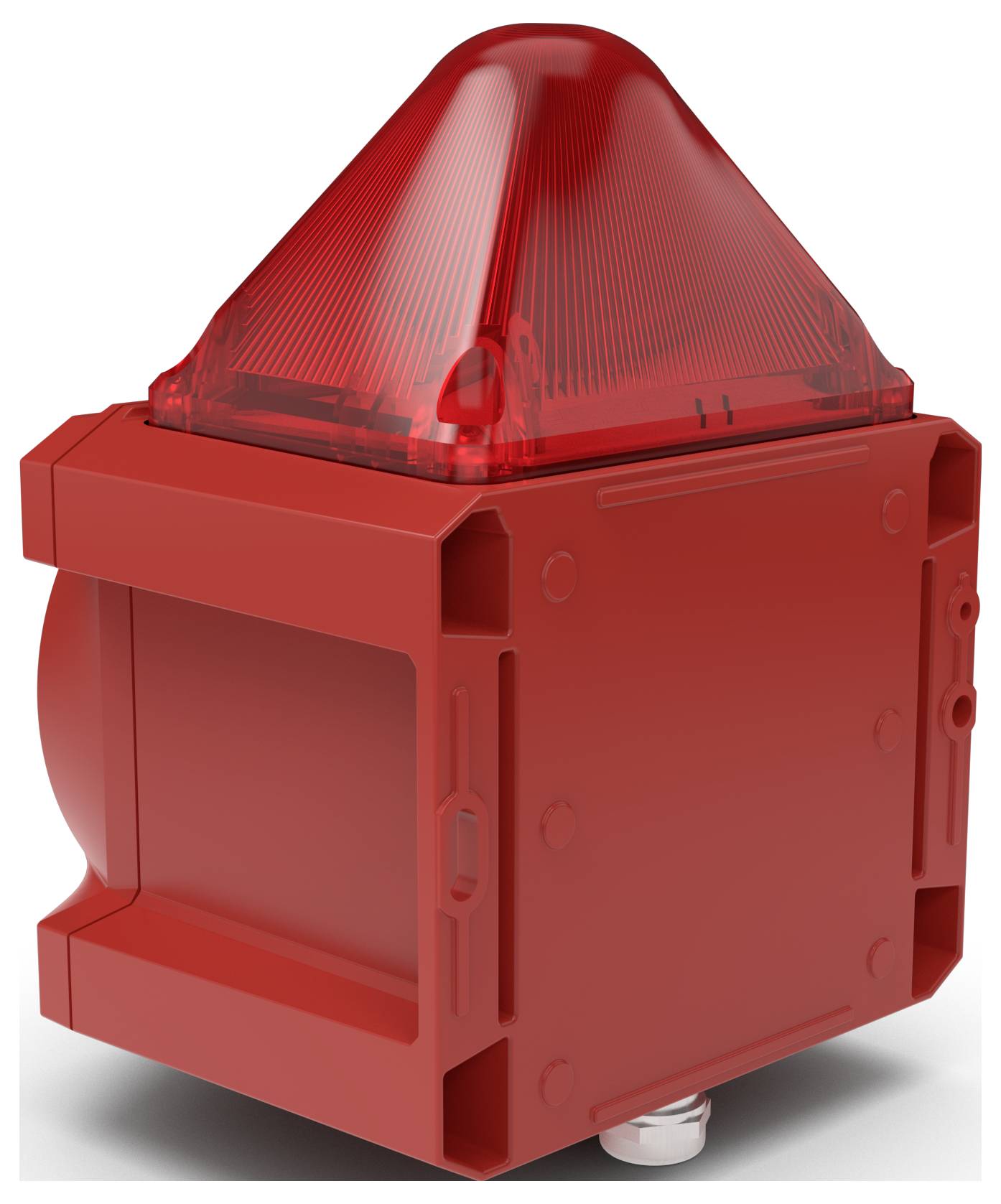

Pfannenberg Combo sounder Xenon PRO X 10 230V AC RD Multi-tone signal 230 V 116 dB
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 701.68 / piece)
€ 701.68
plus VAT.
14-day return policy included
Technical specifications
- Product type
Combo sounder
- Operating voltage
230 V
- Max. current consumption
0.145 A
- Factory colour
Red
- Signal type
Multi-tone signal
- Features
Xenon
IP67
- No. of tones
80
- Lighted picture
Xenon flash
- Material
Metal
- Type
PRO X 10 230V AC RD
- Noise emission (max.)
116 dB
230 V
Red
AC
116 dB
0.145 A
Metal
80
FALSE
IP67
4X
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3335197 Pfannenberg Combo sounder Xenon PRO X 10 230V AC RD Multi-tone signal 230 V 116 dB
User & Safety Instructions
User & Safety Instructions 3335197 Pfannenberg Combo sounder Xenon PRO X 10 230V AC RD Multi-tone signal 230 V 116 dB
Description
Universal signal transmitter for indoor and outdoor use
- Superior ruggedness - Aluminium cast housing (IP66/67) guarantees a long service life in harsh environments
- 2-sense alarm - Barrier-free and secure signaling using 2 technologies
- Separate operation of the sound generator and lighting unit is possible
- Excellent visibility - Ideal radiation characteristics and high penetration of acoustic obstacles reduce the number of devices required
- Maximum possible signaling range with effective Xenon technology
- 4 different flash frequencies can be selected via DIP switch
- A multi-voltage power supply - Designed for operation with different voltages
- Selectable tone - 80 different tones, 3 additional tones can be selected externally
- Reduced sound pressure level - Up to 30 dB, internally or externally selectable
- Pre & main alarm - Avoidance of shock reactions due to reduced sound pressure level during pre-alarm
- Safe & easy to use - Designed with undetachable seal and screws to significantly reduce wiring and installation times
This text is machine translated.
- Superior ruggedness - Aluminium cast housing (IP66/67) guarantees a long service life in harsh environments
- 2-sense alarm - Barrier-free and secure signaling using 2 technologies
- Separate operation of the sound generator and lighting unit is possible
- Excellent visibility - Ideal radiation characteristics and high penetration of acoustic obstacles reduce the number of devices required
- Maximum possible signaling range with effective Xenon technology
- 4 different flash frequencies can be selected via DIP switch
- A multi-voltage power supply - Designed for operation with different voltages
- Selectable tone - 80 different tones, 3 additional tones can be selected externally
- Reduced sound pressure level - Up to 30 dB, internally or externally selectable
- Pre & main alarm - Avoidance of shock reactions due to reduced sound pressure level during pre-alarm
- Safe & easy to use - Designed with undetachable seal and screws to significantly reduce wiring and installation times
This text is machine translated.
