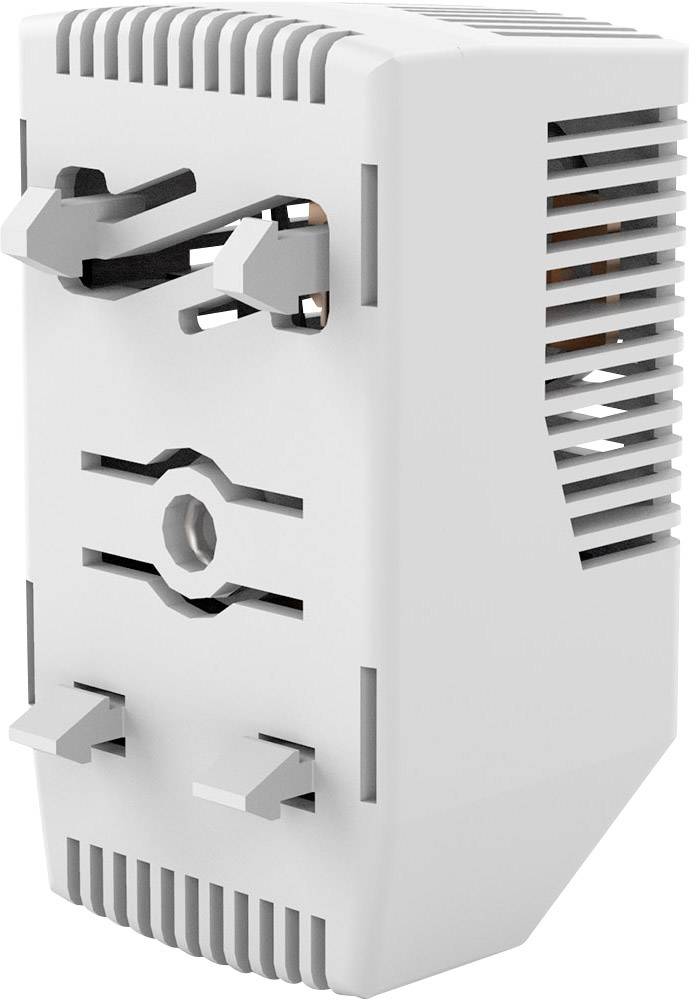

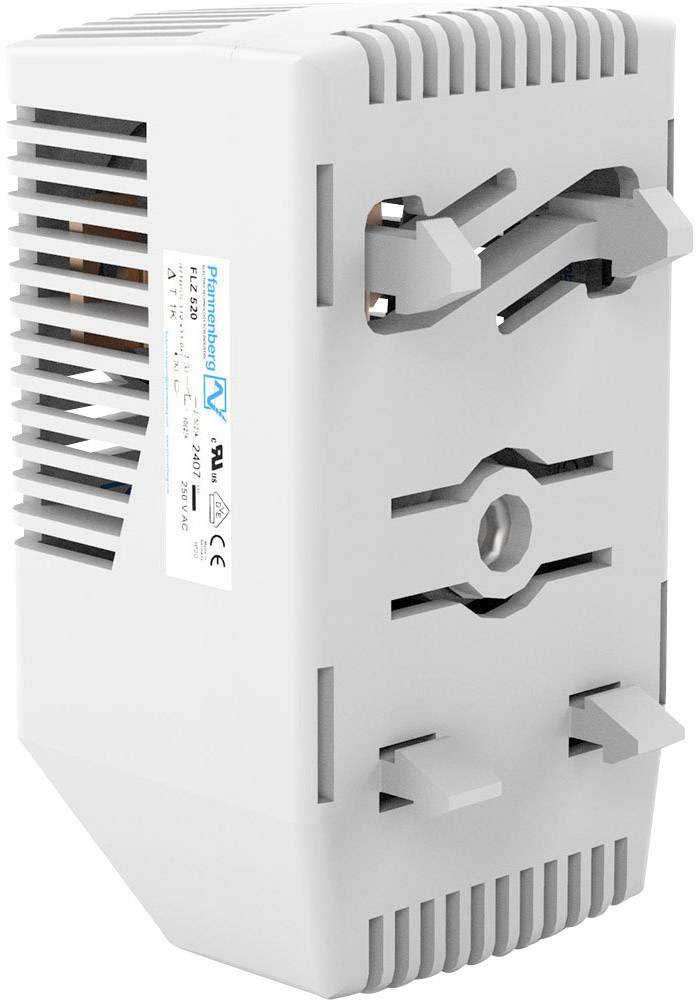

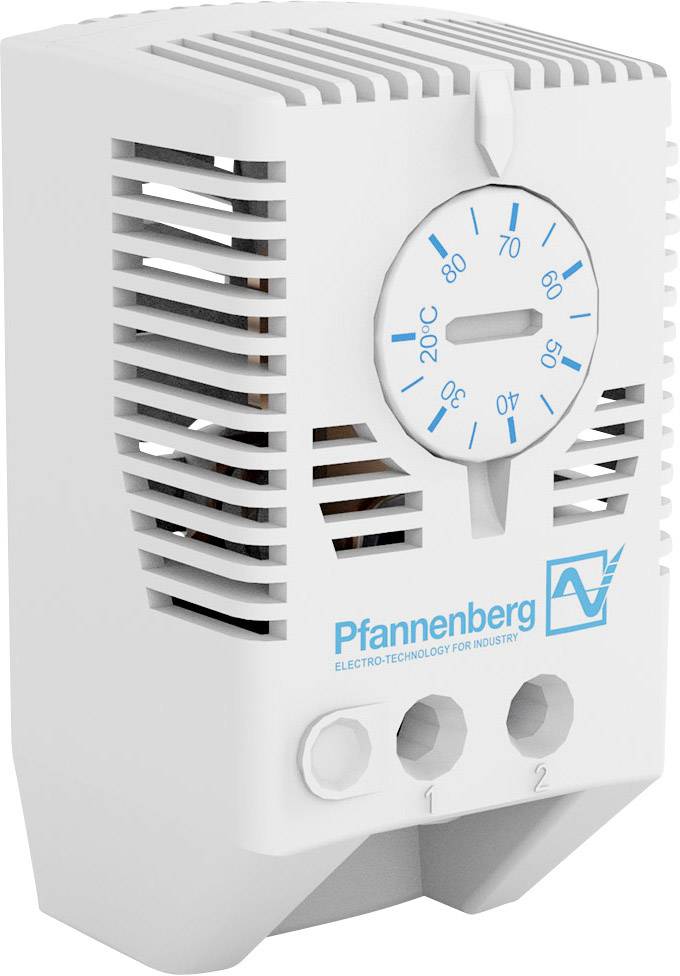

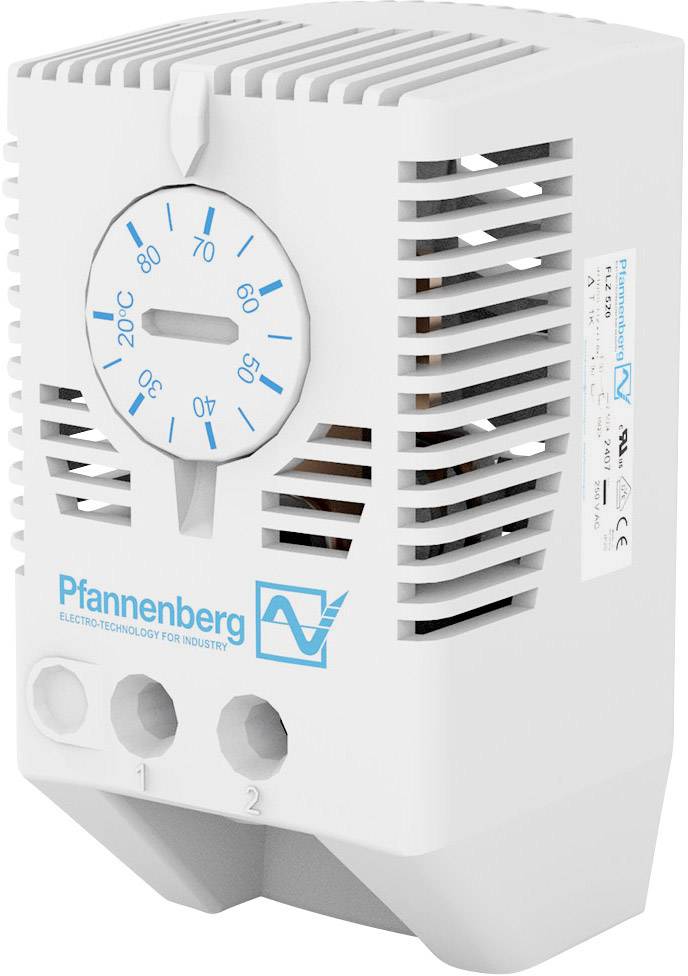

Pfannenberg Enclosure thermostat FLZ 530 THERMOSTAT +20..+80°C 240 V AC 1 maker (L x W x H) 36 x 40 x 72 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure thermostat
Connection
Screw terminal
Contact type
1 maker
Switching voltage (max.)
240 V AC
Switching current (max.)
15 A
Datasheet (PDF)
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
Technical specifications
- Product type
Enclosure thermostat
- Type
FLZ 530 THERMOSTAT +20..+80°C
- Connection
Screw terminal
- Adjustment range (min.) (temperature)
+20 °C
- Temperature adjustment range (max.)
+80 °C
- Mounting type
35mm section rail mount
- Contact type
1 maker
- Switching voltage (max.)
240 V AC
- Switching current (max.)
15 A
- Operating voltage
240 V AC
- Length
36 mm
- Width
40 mm
- Height
72 mm
- Dim
(L x W x H) 36 x 40 x 72 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2181591 Pfannenberg Enclosure thermostat FLZ 530 THERMOSTAT +20..+80°C 240 V AC 1 maker (L x W x H) 36 x 40 x 72 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2181591 Pfannenberg Enclosure thermostat FLZ 530 THERMOSTAT +20..+80°C 240 V AC 1 maker (L x W x H) 36 x 40 x 72 mm 1 pc(s)
Description
The series of FLZ thermostats consists of three variants. They are designed as NC, NO and CO contacts. In combination with switch cabinet heaters, they are used for temperature control in the control cabinet. In combination with filter fans the additional energy, material and time saving and thus a better environmental balance. In sum, more safety is created in the production process, reduced energy consumption through demand-oriented use and an improvement in the efficiency of the controlled heaters and filter fans.
