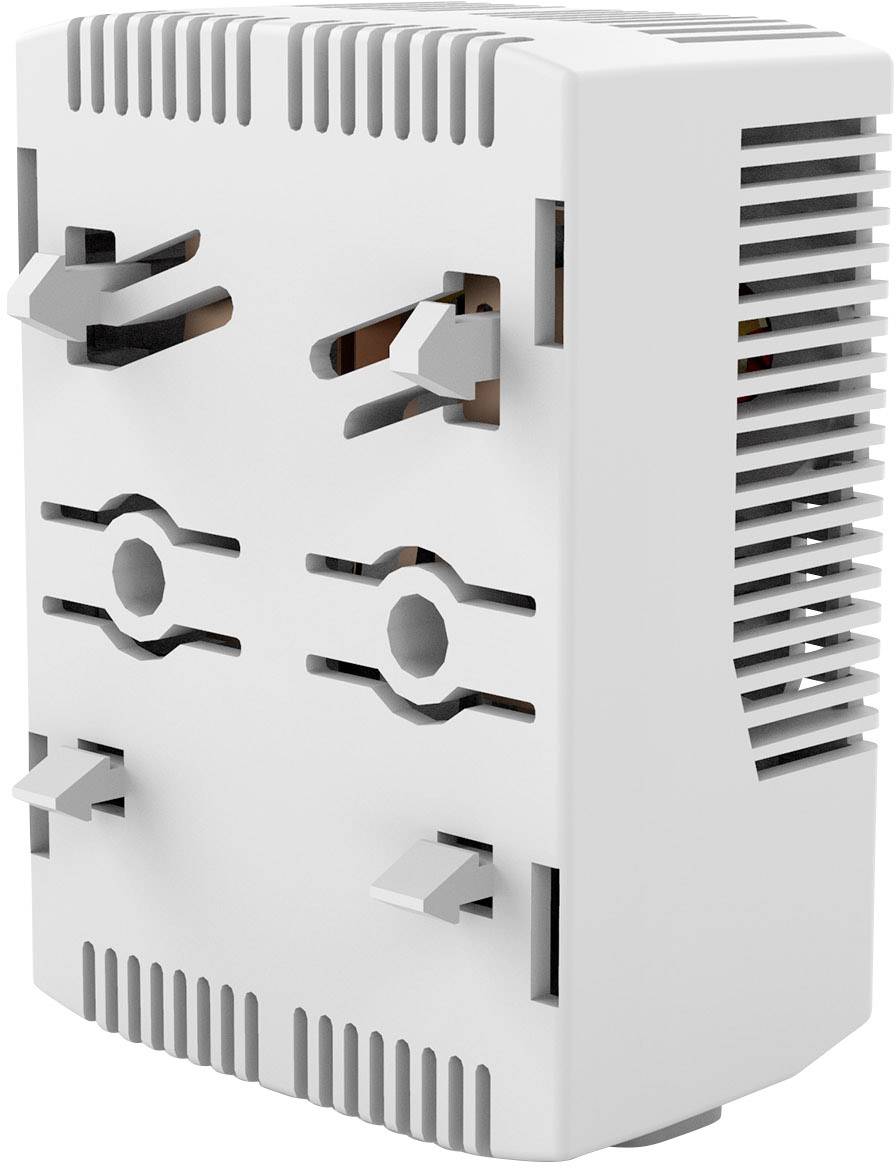

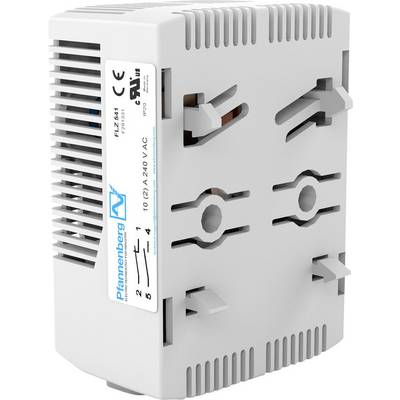

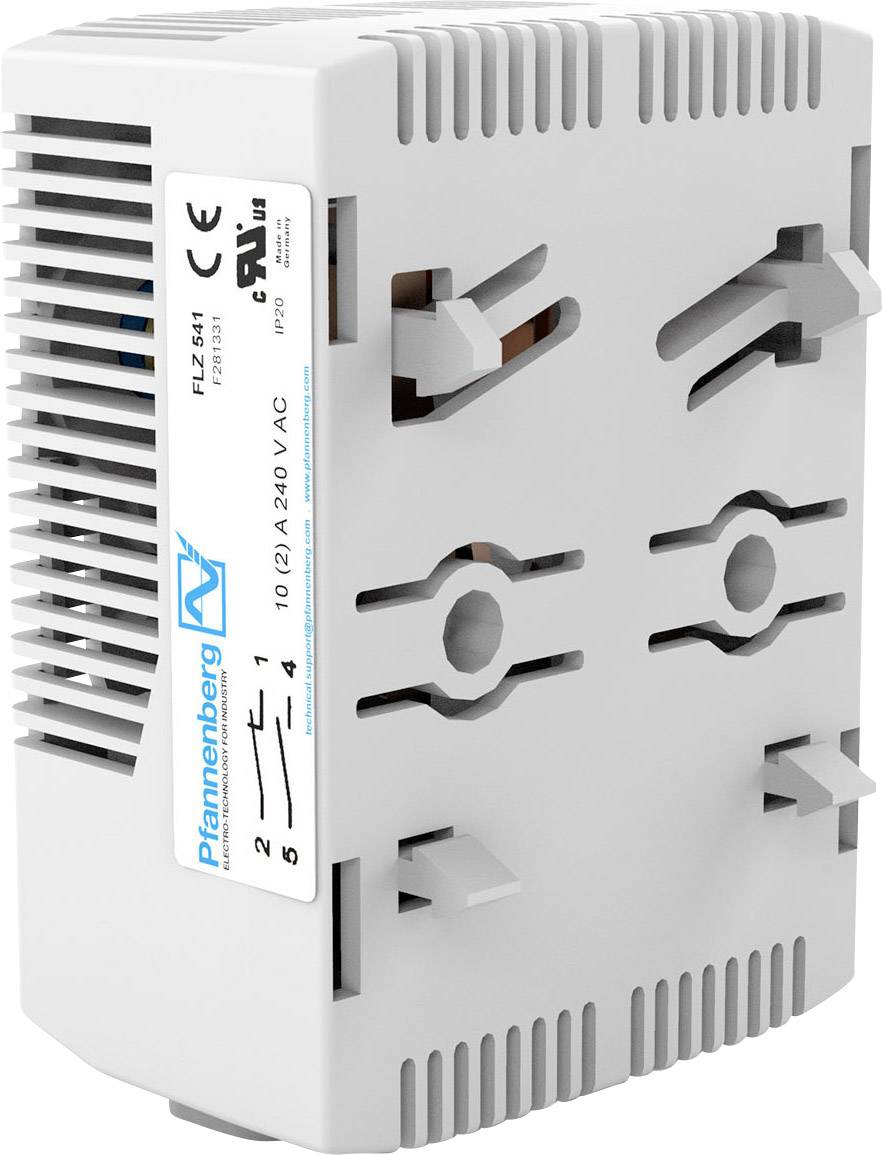

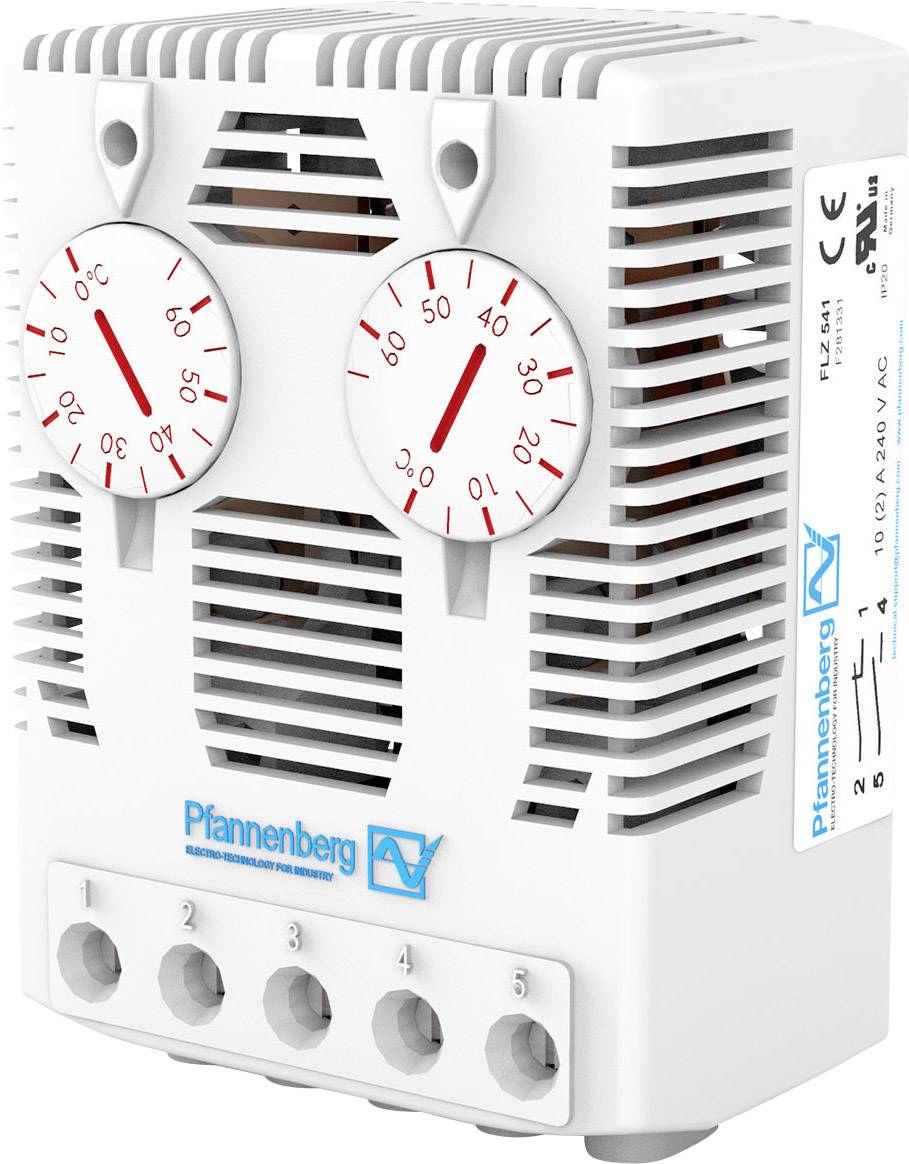

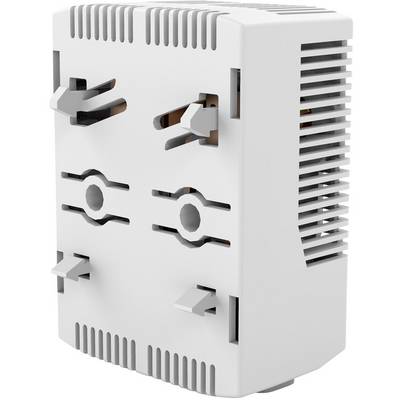

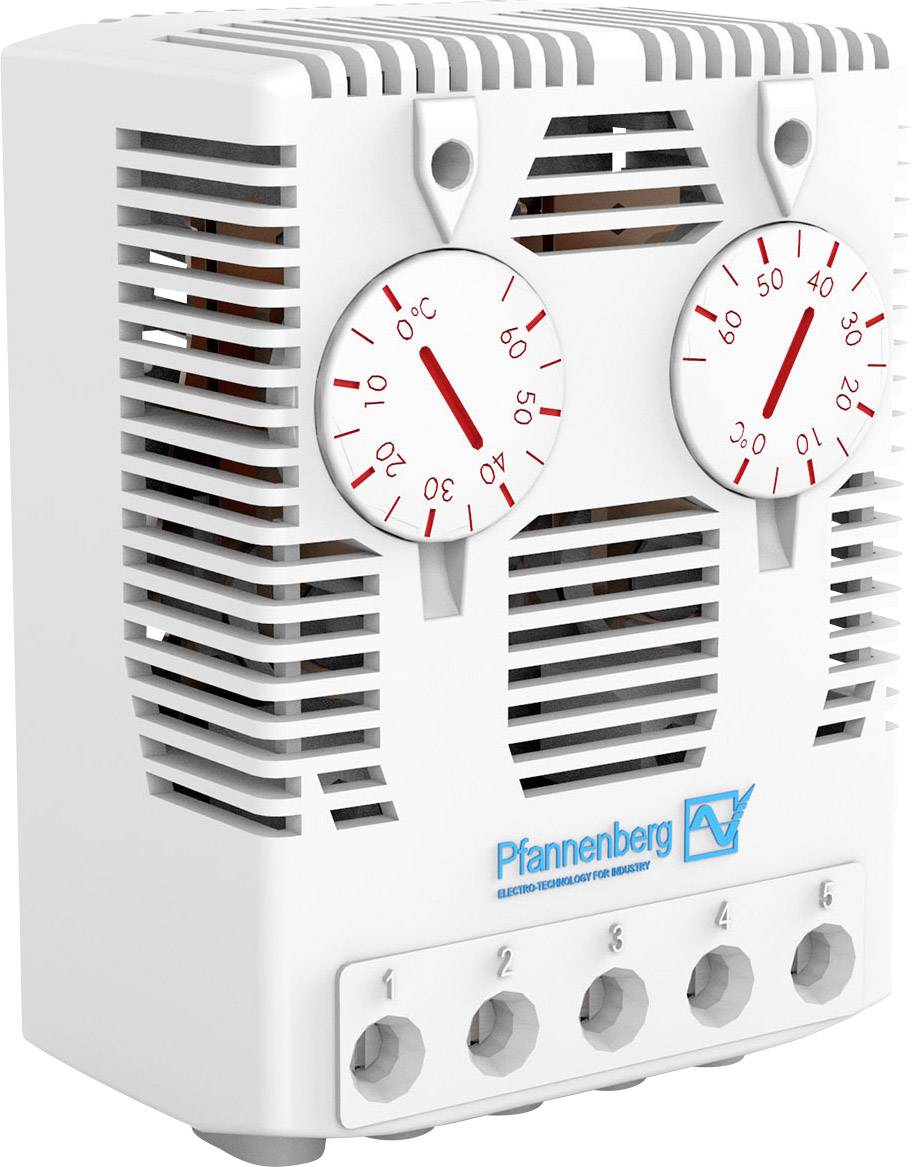

Pfannenberg Enclosure thermostat FLZ 542 THERMOSTAT O/O 0..60C 240 V AC 2 breakers (L x W x H) 38 x 59 x 80.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure thermostat
Connection
Screw terminal
Contact type
2 breakers
Switching voltage (max.)
240 V AC
Switching current (max.)
15 A
Datasheet (PDF)
Number
Total (€ 36.97 / piece)
€ 36.97
plus VAT.
14-day return policy included
Technical specifications
- Product type
Enclosure thermostat
- Type
FLZ 542 THERMOSTAT O/O 0..60C
- Connection
Screw terminal
- Adjustment range (min.) (temperature)
0 °C
- Temperature adjustment range (max.)
+60 °C
- Mounting type
35mm section rail mount
- Contact type
2 breakers
- Switching voltage (max.)
240 V AC
- Switching current (max.)
15 A
- Operating voltage
240 V AC
- Length
38 mm
- Width
59 mm
- Height
80.5 mm
- Dim
(L x W x H) 38 x 59 x 80.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2181593 Pfannenberg Enclosure thermostat FLZ 542 THERMOSTAT O/O 0..60C 240 V AC 2 breakers (L x W x H) 38 x 59 x 80.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2181593 Pfannenberg Enclosure thermostat FLZ 542 THERMOSTAT O/O 0..60C 240 V AC 2 breakers (L x W x H) 38 x 59 x 80.5 mm 1 pc(s)
Description
The FLZ series of twin thermostats integrates three independantly switching thermostats. They are designed as NC/NO, NC/NC and NO/NO. In contrast to thermostats with changeover contact, connected devices can be switched in different temperature ranges.
