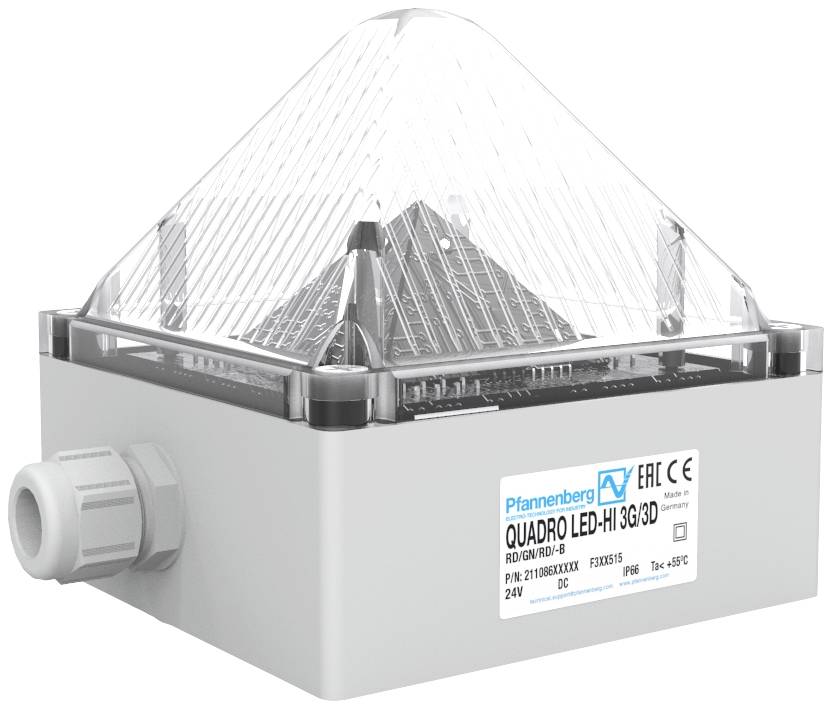

Pfannenberg Flasher LED QUADRO LED-HI 3G/3D 21108631009 Clear White Flash 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 685.00 / piece)
€ 685.00
incl. VAT
14-day return policy included
Technical specifications
- For ex-zone gas: 2
- For Ex-Zone Dust: 22
- Calotte color: Clear
- Power 4 J
- Light type: LED
- Mounting type: Other
- Nominal voltage: 24 V/DC
- Protection class (IP) IP67
- Power consumption 0,165 A
- Housing material: Plastic
- Product type
Flasher
- Operating voltage
24 V DC
- Max. current consumption
0.165 A
- Colour
White
- Height
130 mm
- Features
LED
IP67
- Factory colour
White
- Material
Plastic
- Signal type
Flash
- Type
QUADRO LED-HI 3G/3D
- Light intensity
75 cd
- Calotte colour
Clear
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2890854 Pfannenberg Flasher LED QUADRO LED-HI 3G/3D 21108631009 Clear White Flash 24 V DC
User & Safety Instructions
User & Safety Instructions 2890854 Pfannenberg Flasher LED QUADRO LED-HI 3G/3D 21108631009 Clear White Flash 24 V DC
Description
Extremely bright, multi-functional LED light with a clear hood
Suitable for use in zone 2 according to EN 60079-10-1 and zone 22 according to EN 60079-10-2, certified for categories 3G and 3D (gases and dust in hazardous areas)
- Brightness: 75 cd (reducible)
- Various types of signal and flashing speeds are selectable (internal, external): Permanent light, flashing light ( 1 / 2 Hz ), flash light ( 0.1 / 0.5 / 0.75 / 1 / 2 Hz )
- Multi-voltage power supply 11V - 60V DC
- Integrated switch-on current limitation. Protection of switching components like for example of relay contacts.
- The housing and hood are made of impact-resistant polycarbonate
- Life of the bulb: > 50000h
- Dimensions: LxBxH 130 x 130 x 130mm
- Maximum visibility: 201m
- Protection class: IP 66 / IP 67
- Impact resistant housing: IK 08
- Operating temperature: -20C - +55C
This text is machine translated.
Suitable for use in zone 2 according to EN 60079-10-1 and zone 22 according to EN 60079-10-2, certified for categories 3G and 3D (gases and dust in hazardous areas)
- Brightness: 75 cd (reducible)
- Various types of signal and flashing speeds are selectable (internal, external): Permanent light, flashing light ( 1 / 2 Hz ), flash light ( 0.1 / 0.5 / 0.75 / 1 / 2 Hz )
- Multi-voltage power supply 11V - 60V DC
- Integrated switch-on current limitation. Protection of switching components like for example of relay contacts.
- The housing and hood are made of impact-resistant polycarbonate
- Life of the bulb: > 50000h
- Dimensions: LxBxH 130 x 130 x 130mm
- Maximum visibility: 201m
- Protection class: IP 66 / IP 67
- Impact resistant housing: IK 08
- Operating temperature: -20C - +55C
This text is machine translated.
