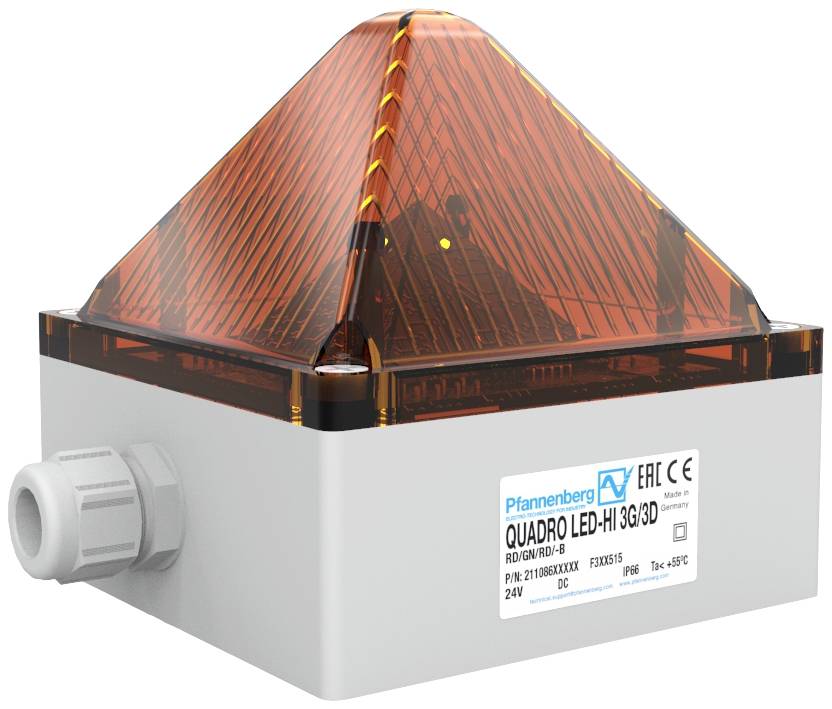

Pfannenberg Flasher LED QUADRO LED-HI-3G/3D LV AM 21108634009 Orange Flash 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 542.02 / piece)
€ 542.02
plus VAT.
Technical specifications
- Mounting type: OtherPower [W]: 4 W.For Ex zone gas: 2For Ex-Zone dust: 22
- Product type
Flasher
- Operating voltage
24 V DC
- Max. current consumption
0.165 A
- Features
LED
IP67
- Lighted picture
Flash
- Material
Plastic
- Signal type
Flash
- Type
QUADRO LED-HI-3G/3D LV AM
- Calotte colour
Orange
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2586078 Pfannenberg Flasher LED QUADRO LED-HI-3G/3D LV AM 21108634009 Orange Flash 24 V DC
User & Safety Instructions
User & Safety Instructions 2586078 Pfannenberg Flasher LED QUADRO LED-HI-3G/3D LV AM 21108634009 Orange Flash 24 V DC
Warranty Terms
Warranty Terms 2586078 Pfannenberg Flasher LED QUADRO LED-HI-3G/3D LV AM 21108634009 Orange Flash 24 V DC
Description
Extremely bright multi-functional LED lamp with orange hoodSuitable for use in zone 2 according to EN 60079-10-1 and zone 22 according to EN 60079-10-2 certified for categories 3G and 3D (gases and dust in hazardous areas)- Brightness: 75 cd (can be reduced)- Different signal types and flashing frequencies can be selected (internal, external): Continuous light, flashing light ( 1 / 2 Hz ), flashing light ( 0.1 / 0.5 / 0.75 / 1 / 2 Hz ) - Multi voltage power supply 11V - 60V DC- Switch-on current limitation integrated. Protection of the switching components such as the relay contacts.- Housing and hood are made of impact-resistant polycarbonate- Life of the bulb: > 50000h- Dimensions: LxWxH 130 x 130 x 130mm- Maximum visibility: 201M- Protection class: IP 66 / IP 67- Impact-resistant housing: IK 08- Operating temperature: -20C - +55C10-year guarantee
