Name: Pfannenberg Flasher LED QUADRO LED-HI-3G/3D LV RD 21108635009 Red Red Flash 24 V DC
Brand: Pfannenberg
SKU: 2586079
Availability: BackOrder

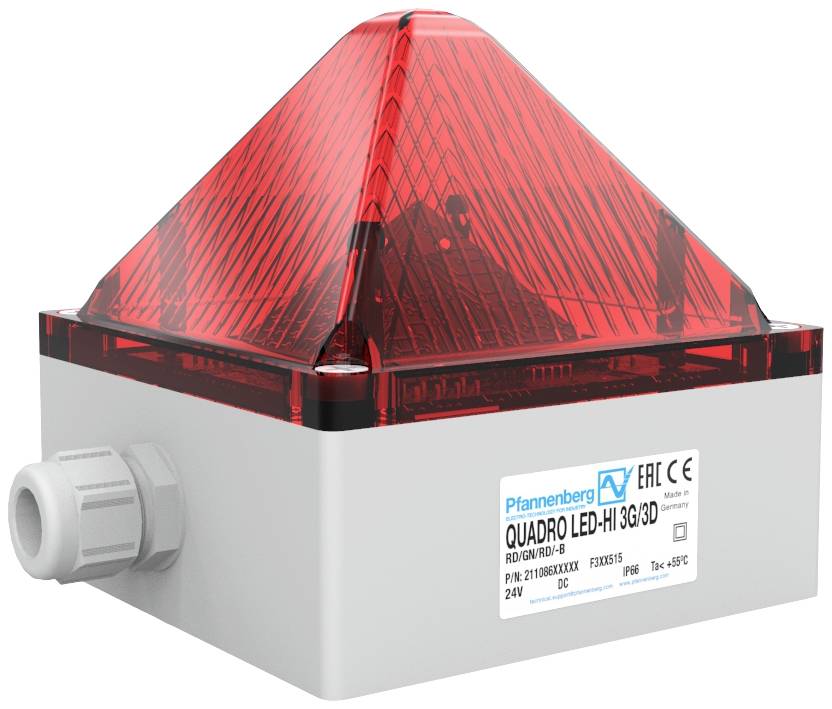

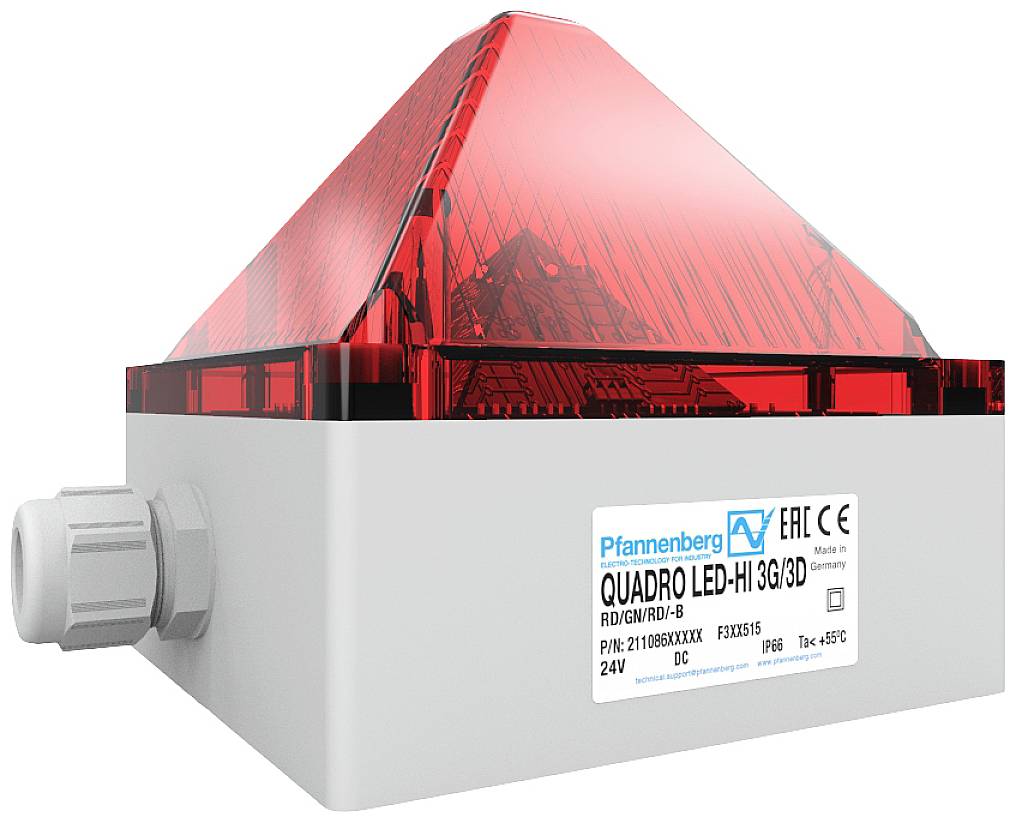

A red, pyramid-shaped warning light by Pfannenberg with technical designation 'QUADRO LED-HI 3G/3D', mounted on a grey enclosure.

1/2

Datasheet (PDF)

Dispatches on Tue 20 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 645.00 / piece)

€ 645.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: OtherPower [W]: 4 W.For Ex zone gas: 2For Ex-Zone dust: 22

Product type: Flasher

Operating voltage: 24 V DC

Max. current consumption: 0.165 A

Colour: Red

Height: 130 mm

Features: LED

: IP67

Factory colour: Red

Lighted picture: Flash

Material: Plastic

Signal type: Flash

Type: QUADRO LED-HI-3G/3D LV RD

Light intensity: 75 cd

Calotte colour: Red

Max. temperature: 55 °C

Min. temperature: -20 °C

UKCA: not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2586079 Pfannenberg Flasher LED QUADRO LED-HI-3G/3D LV RD 21108635009 Red Red Flash 24 V DC

User & Safety Instructions

User & Safety Instructions 2586079 Pfannenberg Flasher LED QUADRO LED-HI-3G/3D LV RD 21108635009 Red Red Flash 24 V DC

Warranty Terms

Warranty Terms 2586079 Pfannenberg Flasher LED QUADRO LED-HI-3G/3D LV RD 21108635009 Red Red Flash 24 V DC

Description

Extremely bright multifunctional LED lamp with red hoodSuitable for use in zone 2 according to EN 60079-10-1 and zone 22 according to EN 60079-10-2 certified for categories 3G and 3D (gases and dust in hazardous areas)- Brightness: 75 cd (can be reduced)- Different signal types and flashing frequencies can be selected (internal, external): Continuous light, flashing light ( 1 / 2 Hz ), flashing light ( 0.1 / 0.5 / 0.75 / 1 / 2 Hz ) - Multi voltage power supply 11V - 60V DC- Switch-on current limitation integrated. Protection of the switching components such as the relay contacts.- Housing and hood are made of impact-resistant polycarbonate- Life of the bulb: > 50000h- Dimensions: LxWxH 130 x 130 x 130mm- Maximum visibility: 201M- Protection class: IP 66 / IP 67- Impact-resistant housing: IK 08- Operating temperature: -20C - +55C10-year guarantee

This text is machine translated.
