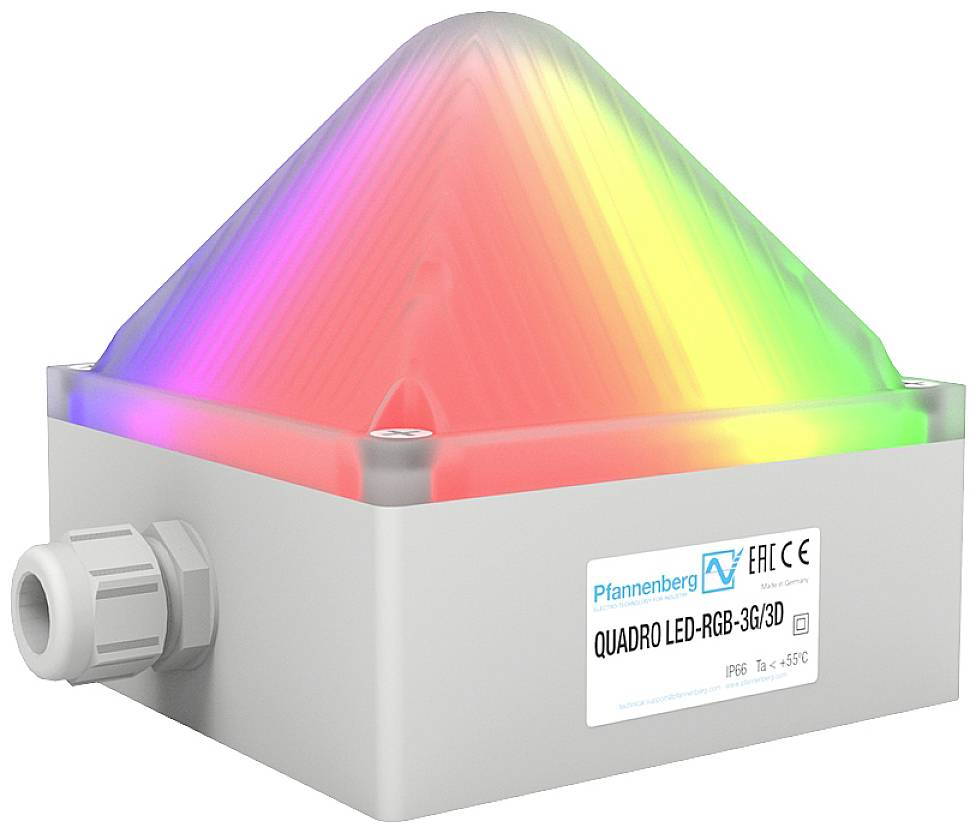

A square LED signal device with rainbow colours. Printed text: 'Pfannenberg', 'QUADRO LED-RGB-3G/3D'.

A square LED signal device with rainbow colours. Printed text: 'Pfannenberg', 'QUADRO LED-RGB-3G/3D'.

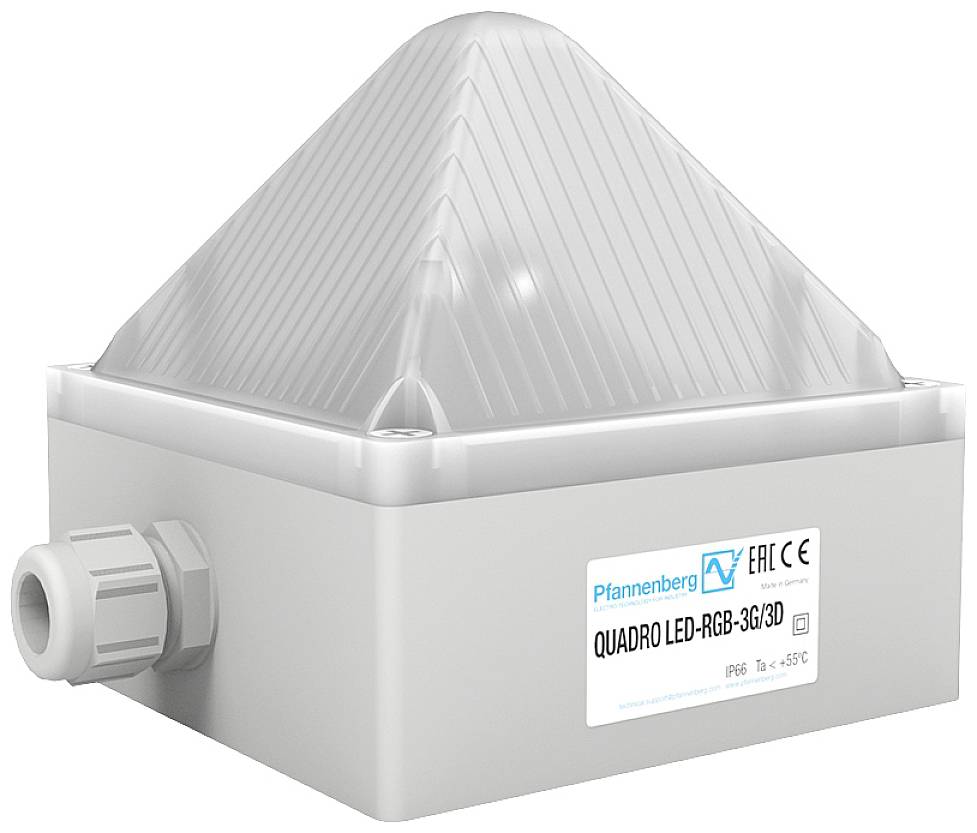

Grey, pyramid-shaped LED light from Pfannenberg. Model 'QUADRO LED-RGB-3G/3D' is suitable for IP66 environments.

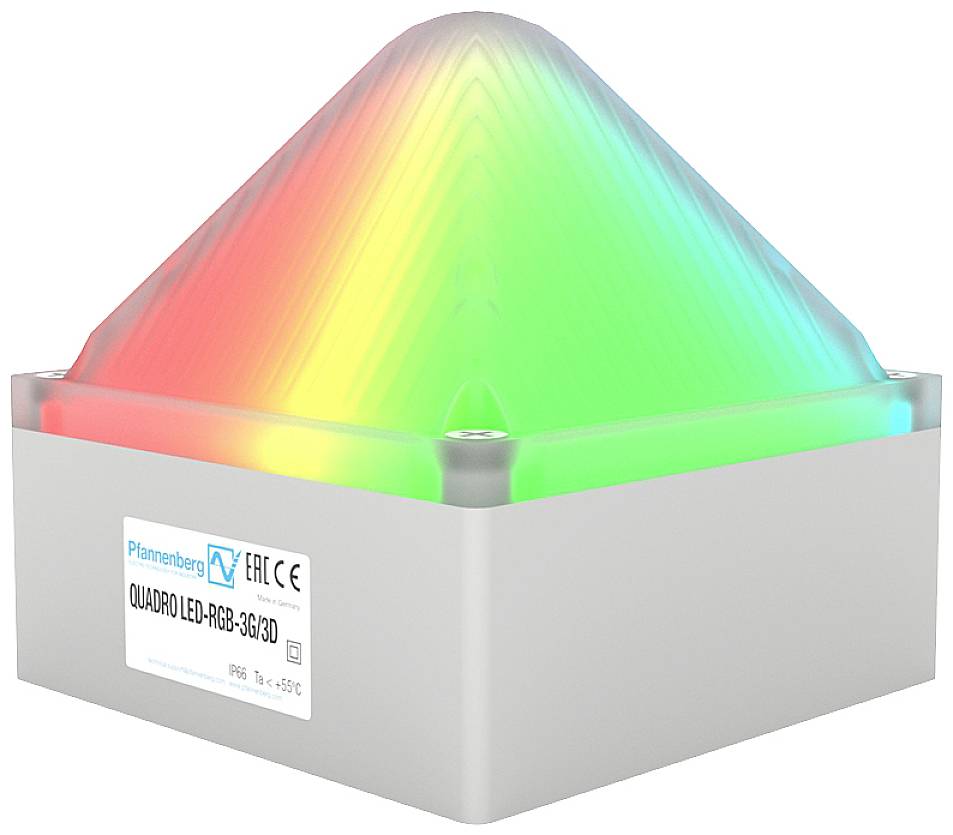

A pyramid-shaped LED light with a gradient transitioning from red to green, mounted on a white, square base.

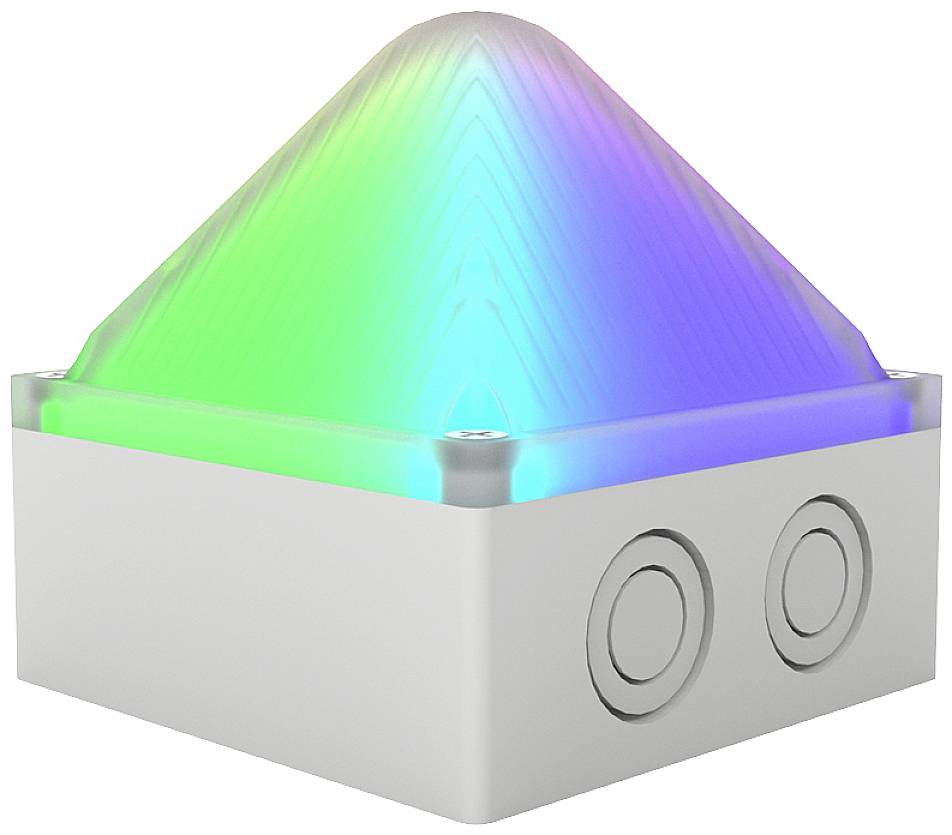

A white, cube-shaped device with a glowing, pyramid-shaped tip in rainbow colours. Two round buttons on the front side.

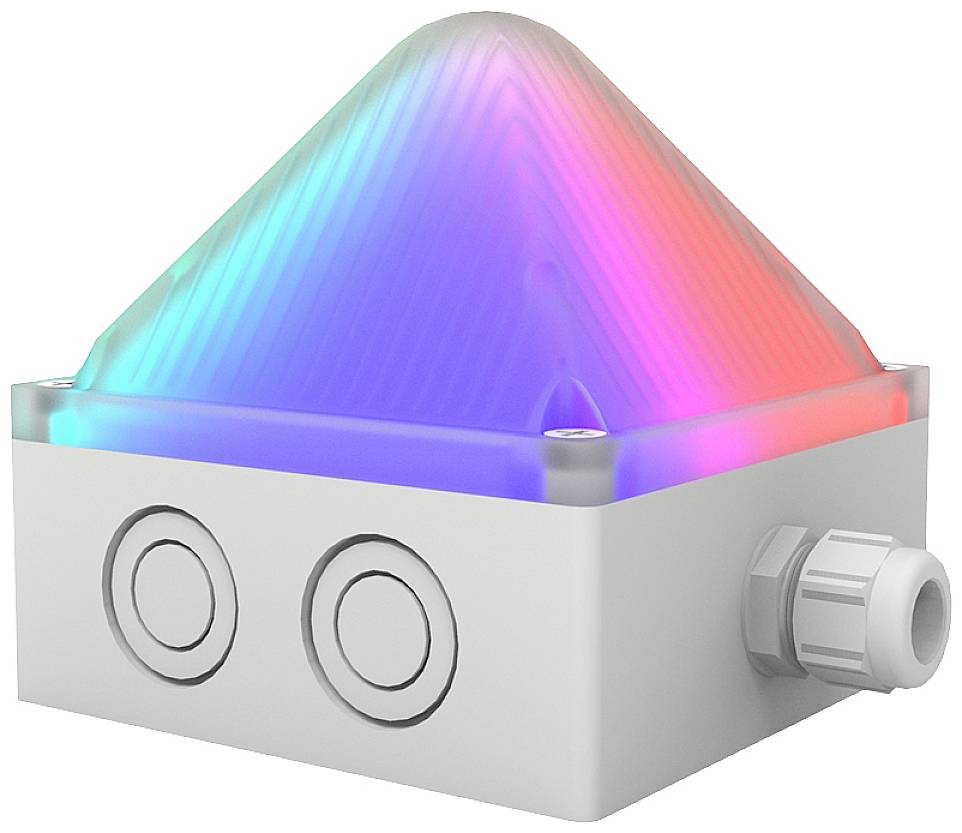

A square device with a pyramid-shaped surface that glows in blue and pink. Contains two circular buttons and a cable connection.

1/5

Pfannenberg

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 675.00 / piece)

€ 675.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Mounting type: OtherPower [W]: -For Ex zone gas: 2For Ex-Zone dust: 22

Product type: Flasher

Operating voltage: 24 V DC

Max. current consumption: 0.12 A

Colour: RGB

Height: 130 mm

Features: LED

: IP66

Factory colour: White

Case colour: White

Lighted picture: Flash

Material: Plastic

Signal type: Flash

Type: QUADRO LED-RGB-3G/3D LV

Calotte colour: White

Max. temperature: 55 °C

Min. temperature: -20 °C

UKCA: not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2586082 Pfannenberg Flasher LED QUADRO LED-RGB-3G/3D LV 21109638009 White RGB Flash 24 V DC

User & Safety Instructions

User & Safety Instructions 2586082 Pfannenberg Flasher LED QUADRO LED-RGB-3G/3D LV 21109638009 White RGB Flash 24 V DC

Warranty Terms

Warranty Terms 2586082 Pfannenberg Flasher LED QUADRO LED-RGB-3G/3D LV 21109638009 White RGB Flash 24 V DC

Description

Multifunctional LED-RGB lamp with white hoodSuitable for use in zone 2 according to EN 60079-10-1 and zone 22 according to EN 60079-10-2 certified for categories 3G and 3D (gases and dust in hazardous areas- Different colors, signal types and flashing frequencies can be selected (internal and external): Continuous light, flashing light ( 1 / 2 Hz ), flashing light ( 0.1 / 0.5 / 0.75 / 1 / 2 Hz ) - Multi voltage power supply 10V - 57V DC- Switch-on current limitation integrated. Protection of the switching components such as the relay contacts.- Housing and hood are made of impact-resistant polycarbonate- Life of the bulb: > 50000h- Dimensions: LxWxH 130 x 130 x 130mm- Protection class: IP 66 / IP 67- Impact-resistant housing: IK 08- Operating temperature: -20C - +55C10-year guarantee

This text is machine translated.

Description

Multifunctional LED-RGB lamp with white hoodSuitable for use in zone 2 according to EN 60079-10-1 and zone 22 according to EN 60079-10-2 certified for categories 3G and 3D (gases and dust in hazardous areas- Different colors, signal types and flashing frequencies can be selected (internal and external): Continuous light, flashing light ( 1 / 2 Hz ), flashing light ( 0.1 / 0.5 / 0.75 / 1 / 2 Hz ) - Multi voltage power supply 10V - 57V DC- Switch-on current limitation integrated. Protection of the switching components such as the relay contacts.- Housing and hood are made of impact-resistant polycarbonate- Life of the bulb: > 50000h- Dimensions: LxWxH 130 x 130 x 130mm- Protection class: IP 66 / IP 67- Impact-resistant housing: IK 08- Operating temperature: -20C - +55C10-year guarantee

This text is machine translated.
