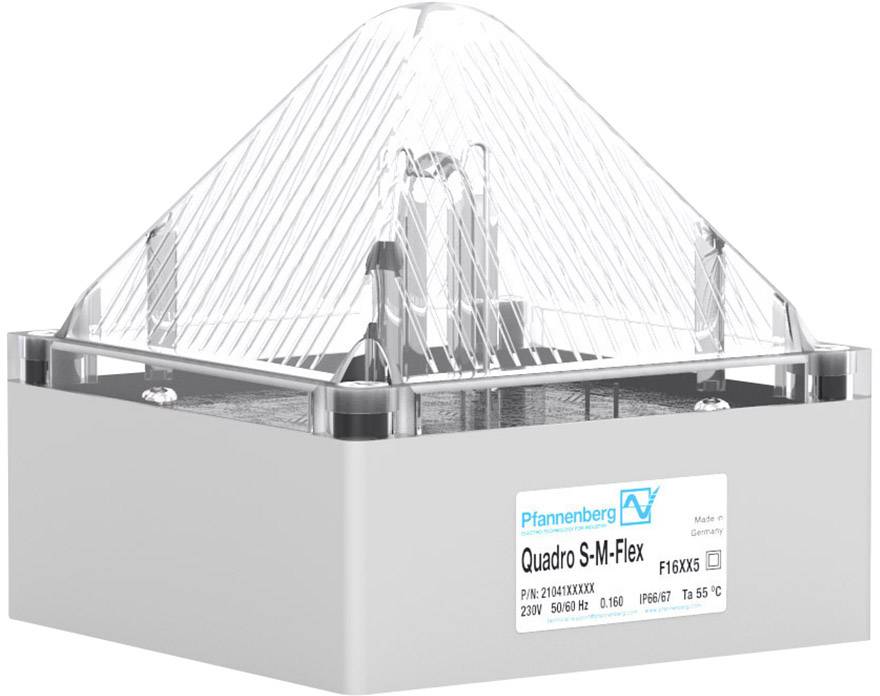

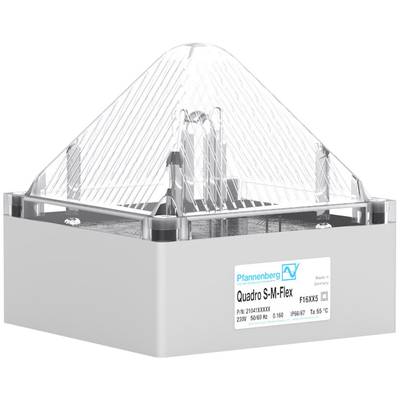

Pfannenberg Flasher QUADRO S-M-FLEX 230 AC CL 21042101179 Clear Clear 230 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 567.23 / piece)
€ 567.23
plus VAT.
Technical specifications
- Mounting type: Construction
- Bulb: Xenon
- Product type
Flasher
- Operating voltage
230 V AC
- Max. current consumption
0.25 A
- Colour
Clear
IP67
- Factory colour
Clear
- Material
Plastic
- Type
QUADRO S-M-FLEX 230 AC CL
- Calotte colour
Clear
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2181686 Pfannenberg Flasher QUADRO S-M-FLEX 230 AC CL 21042101179 Clear Clear 230 V AC
User & Safety Instructions
User & Safety Instructions 2181686 Pfannenberg Flasher QUADRO S-M-FLEX 230 AC CL 21042101179 Clear Clear 230 V AC
Description
Synchronous flashing of up to 10 lights in series without additional control unit
Inrush current is limited to below 1 A.
Integrated function monitoring with fault signaling contact
Variable brightness and flash frequency setting on site at the device
Use of double pole terminals for easy connection of parallel operated lamps
This text is machine translated.
Inrush current is limited to below 1 A.
Integrated function monitoring with fault signaling contact
Variable brightness and flash frequency setting on site at the device
Use of double pole terminals for easy connection of parallel operated lamps
This text is machine translated.
