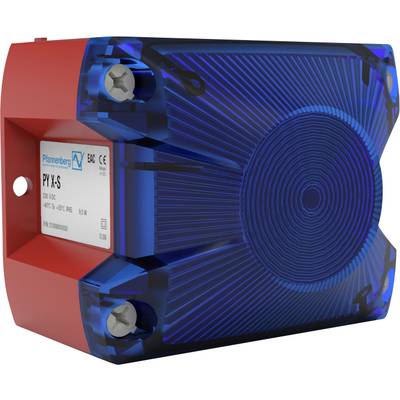

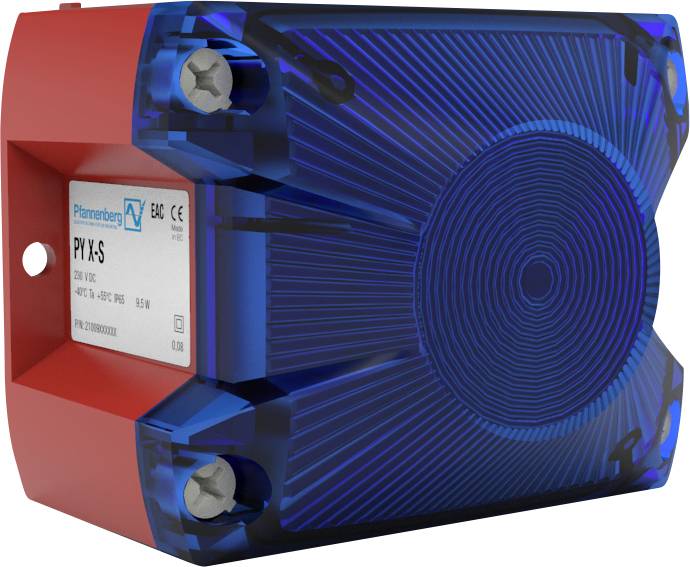

Pfannenberg Flasher Xenon PY X-S-05 230 AC BU 21510107000 Blue Blue Flash 230 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
14-day return policy included
Technical specifications
- Product type
Flasher
- Operating voltage
230 V AC
- Max. current consumption
0.055 A
- Colour
Blue
- Height
81 mm
- Features
Xenon
IP66
- Factory colour
Blue
- Lighted picture
Xenon flash
- Material
Plastic
- Signal type
Flash
- Type
PY X-S-05 230 AC BU
- Calotte colour
Blue
- Max. temperature
55 °C
- Min. temperature
-40 °C
Surface mounting
5 J
AC
Plastic
Xenon
Blue
FALSE
230-230 V
IP66
TRUE
4X
FALSE
167 m³
0.055-0.055 A
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3335190 Pfannenberg Flasher Xenon PY X-S-05 230 AC BU 21510107000 Blue Blue Flash 230 V AC
User & Safety Instructions
User & Safety Instructions 3335190 Pfannenberg Flasher Xenon PY X-S-05 230 AC BU 21510107000 Blue Blue Flash 230 V AC
Description
- The compact flashing light with blue hood and red base not only fits many applications, but also stands out for its safe and easy installation

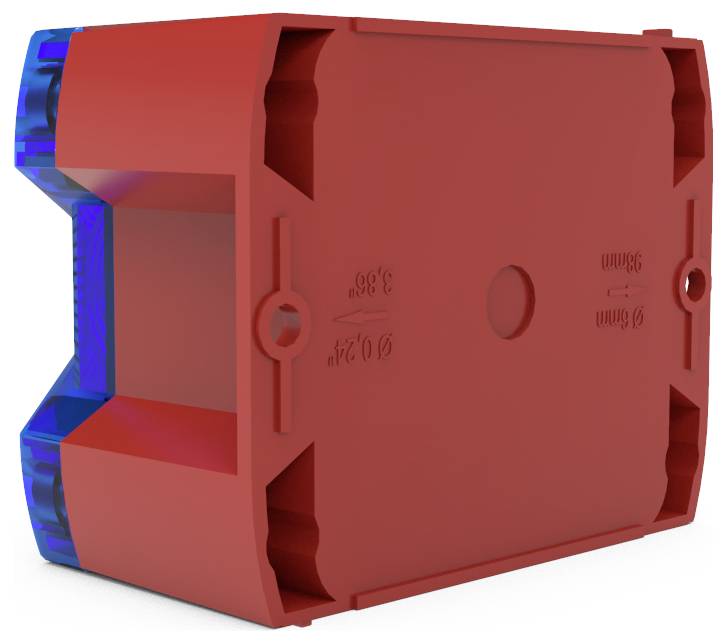

- Can be mounted via external lugs or internal holes
- Polycarbonate impact-resistant dome. Stabilization of the XENON tube for increased shock and vibration strength
- Also suitable for control panel installation
- Certified according to EN54-23 and VdS and therefore suitable for fire alarm
- Lifetime: After 8 MIO. Flashes still 70% light emission
- Dimensions: LxBxH: 86 x 110 x 81 mm
- Maximum visibility 164 m.
- Optional with Soft-Start Module (SSM) to reduce starting current
- Optional with GL and MED certification
- Easily connectable housing
- Case colors: Grey (RAL 7035), red (RAL 3000) or white (RAL 9003)
- 7 hood colors: Clear, white, yellow, orange, red, green, blue
- Ambient temperatures: -40C to +55C. Suitable for all applications and applications

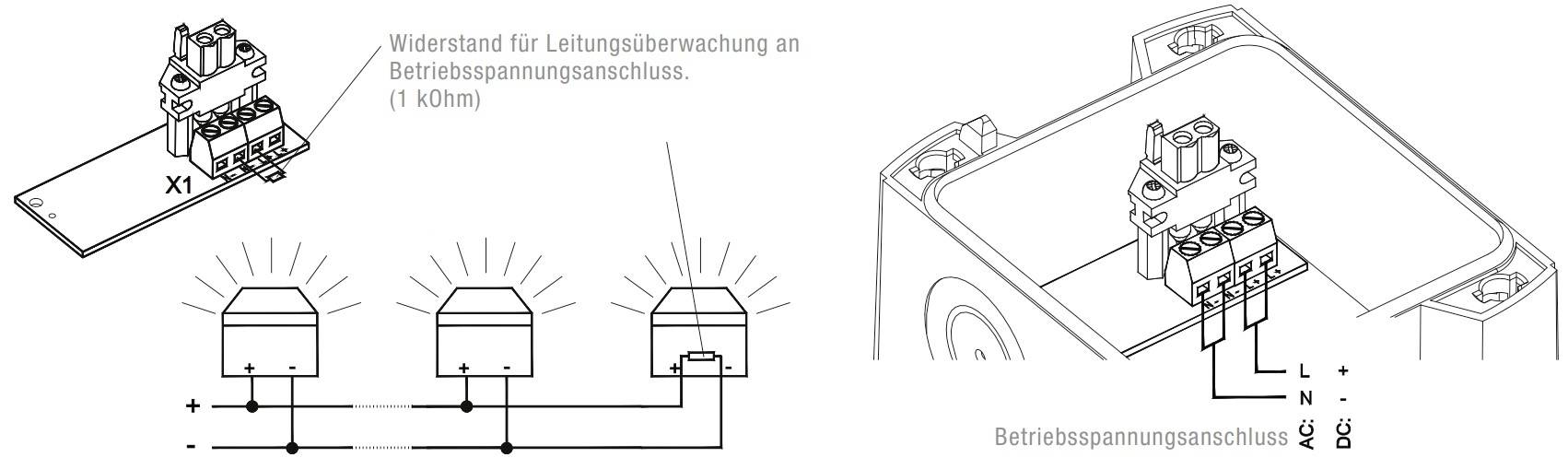

- Electrical contact only in the assembled base. Cables can be connected according to the principle 'junction box'. No '3-hand' mounting (device - screwdriver - strand). No tension/pressure on the clamping points or other components, no 'squeezing' of the lines
This text is machine translated.
- Can be mounted via external lugs or internal holes
- Polycarbonate impact-resistant dome. Stabilization of the XENON tube for increased shock and vibration strength
- Also suitable for control panel installation
- Certified according to EN54-23 and VdS and therefore suitable for fire alarm
- Lifetime: After 8 MIO. Flashes still 70% light emission
- Dimensions: LxBxH: 86 x 110 x 81 mm
- Maximum visibility 164 m.
- Optional with Soft-Start Module (SSM) to reduce starting current
- Optional with GL and MED certification
- Easily connectable housing
- Case colors: Grey (RAL 7035), red (RAL 3000) or white (RAL 9003)
- 7 hood colors: Clear, white, yellow, orange, red, green, blue
- Ambient temperatures: -40C to +55C. Suitable for all applications and applications
- Electrical contact only in the assembled base. Cables can be connected according to the principle 'junction box'. No '3-hand' mounting (device - screwdriver - strand). No tension/pressure on the clamping points or other components, no 'squeezing' of the lines
This text is machine translated.
