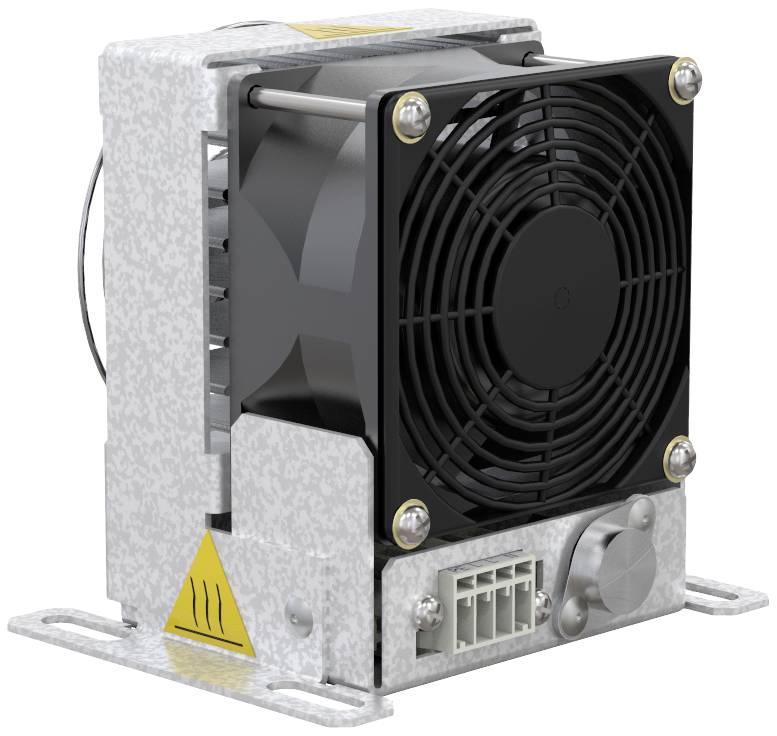

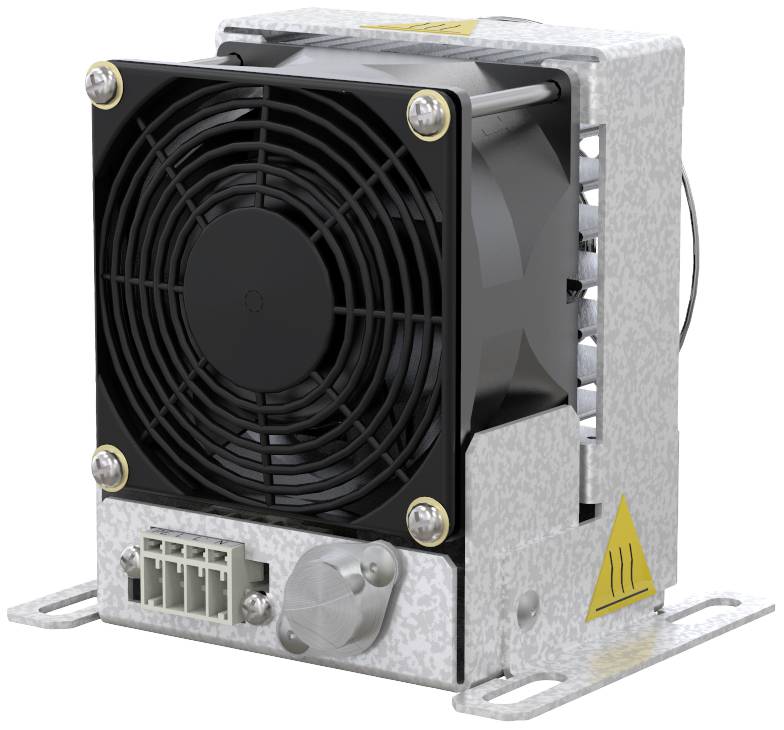

Pfannenberg FLH 275SLM-UL 230V AC Enclosure fan heater 207 - 258 V AC 275 W (L x W x H) 118 x 110.5 x 92.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure fan heater
Connection
Plug & Clip
Max. operating voltage
258 V AC
Type
FLH 275SLM-UL 230V AC
Features
Fan
Datasheet (PDF)
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
14-day return policy included
Technical specifications
- Protection class: IAir volume flow: 50 m³/h.Weight: 1200 gDevice construction: Galvanized steel sheet
- Product type
Enclosure fan heater
- Type
FLH 275SLM-UL 230V AC
- Features
Fan
- Connection
Plug & Clip
- Adjustment range (min.) (temperature)
-40 °C
- Temperature adjustment range (max.)
70 °C
- Min. operating voltage
207 V AC
- Max. operating voltage
258 V AC
- Operating voltage
207 - 258 V AC
275 W
IP20
- Mounting type
Screw fastening
- Length
118 mm
- Width
110.5 mm
- Height
92.5 mm
- Dim
(L x W x H) 118 x 110.5 x 92.5 mm
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-40 °C
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2586058 Pfannenberg FLH 275SLM-UL 230V AC Enclosure fan heater 207 - 258 V AC 275 W (L x W x H) 118 x 110.5 x 92.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2586058 Pfannenberg FLH 275SLM-UL 230V AC Enclosure fan heater 207 - 258 V AC 275 W (L x W x H) 118 x 110.5 x 92.5 mm 1 pc(s)
Description
The fan heater is ideal for use in large control cabinets. It has an integrated fan, which supports the natural convection and thus ensures a fast and uniform distribution of heat in the control cabinet. The heating fans are mainly used to avoid too low temperatures or too high humidity in the control cabinet in combination with a thermostat or hygrostat and thus also prevent corrosion.The advantages at a glance:- Fan construction with ball bearing guarantees a long life- High volume flow, produced by the powerful fan, ensures a fast and uniform heat distribution- Unique shock and vibration resistance- Electrical connection via plug-in terminal connection- The compact design allows for use in housings with very little available space- Mounting: Integrated galvanized mounting bracket with four M6 slots- Range between -40C and 70C- Approvals: CURus
