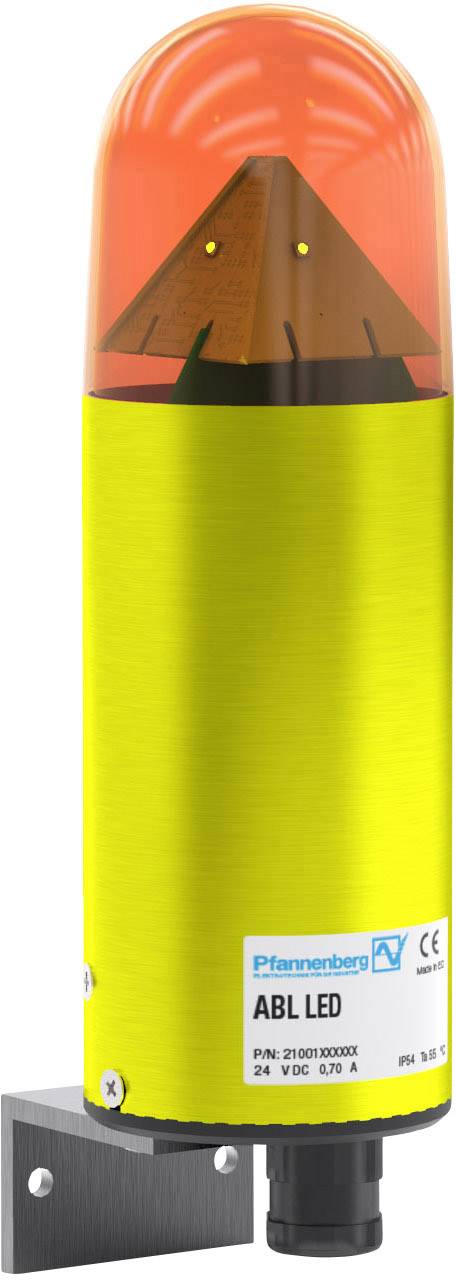

Pfannenberg Light ABL LED HI 90-253 AC AM 21118644000 Orange Orange Flash, Flasher, Non-stop light signal 230 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 348.74 / piece)
€ 348.74
plus VAT.
Technical specifications
- Mounting type: Construction
- Lamp: LED not replaceable
- Product type
Light
- Operating voltage
230 V AC
- Max. current consumption
0.045 A
- Colour
Orange
IP54
- Factory colour
Orange
- Lighted picture
Flash
- Material
Metal
- Signal type
Flash
Flasher
Non-stop light signal
- Type
ABL LED HI 90-253 AC AM
- Calotte colour
Orange
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2181704 Pfannenberg Light ABL LED HI 90-253 AC AM 21118644000 Orange Orange Flash, Flasher, Non-stop light signal 230 V AC
User & Safety Instructions
User & Safety Instructions 2181704 Pfannenberg Light ABL LED HI 90-253 AC AM 21118644000 Orange Orange Flash, Flasher, Non-stop light signal 230 V AC
Description
Fully compatible with the established ABL/ABS Xenon flash lamp
Metal housing – designed for rugged requirements under industrial conditions
For use indoors and outdoors.
Extremely insensitive to shock and vibration
3 different signal options are adjustable internally and externally (DC) as standard: 1) continuous light 2) flashing light 3) flashing light
Standard with inrush current limiting on 24 V DC devices
Economical and flexible; can be used as standard with wide-range power supply and with high direct currents (90–253 V DC)
Optional with protective cage
This text is machine translated.
Metal housing – designed for rugged requirements under industrial conditions
For use indoors and outdoors.
Extremely insensitive to shock and vibration
3 different signal options are adjustable internally and externally (DC) as standard: 1) continuous light 2) flashing light 3) flashing light
Standard with inrush current limiting on 24 V DC devices
Economical and flexible; can be used as standard with wide-range power supply and with high direct currents (90–253 V DC)
Optional with protective cage
This text is machine translated.
