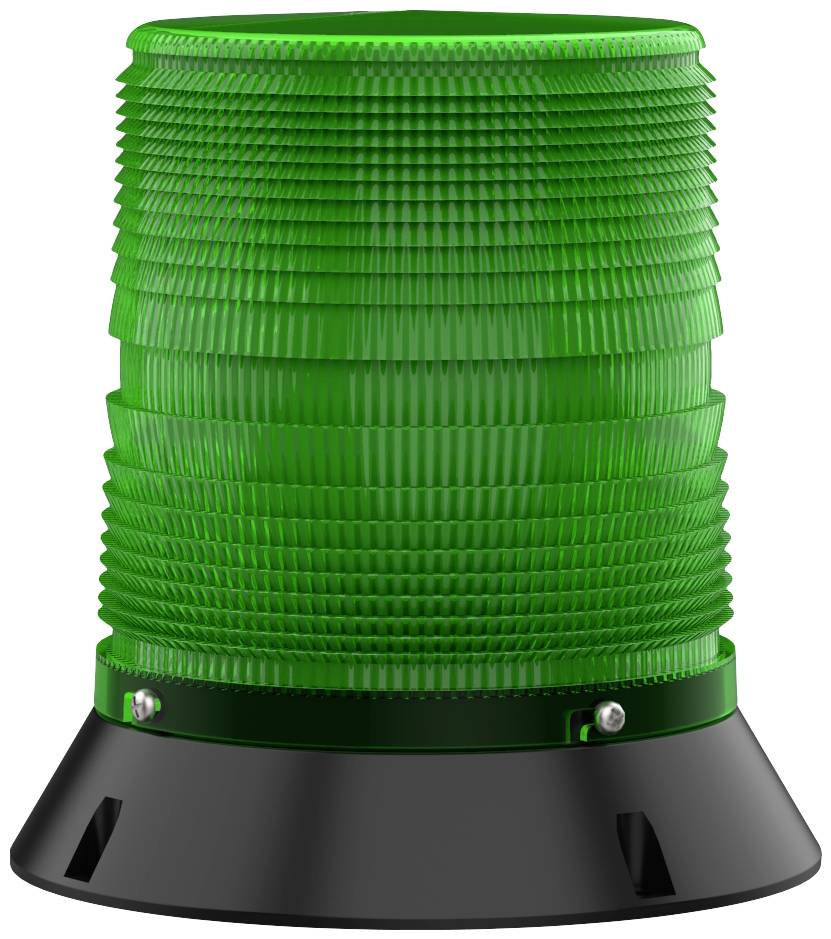

Pfannenberg Light LED PMF LED-HI 21155636006 Green Green Flash, Flasher 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 415.97 / piece)
€ 415.97
plus VAT.
14-day return policy included
Technical specifications
- Number of modes: 3
- Version: Other
- Function flashing light: Yes
- Flash function: Yes
- Continuous light function: No.
- Black enclosure
- Calotte color: Green
- Power: 7.9 W
- Bulb: LED not replaceable
- Mounting type: Other
- Nominal voltage: 24 V/DC
- Protection class (IP) IP55
- Solar powered: No.
- Standby time of up to 0 hrs
- Current consumption: 0.9 A
- Ambient temperature: -40 °C - 55 °C
- Housing material: Plastic
- Product type
Light
- Operating voltage
24 V DC
- Max. current consumption
0.9 A
- Colour
Green
- (Ø)
177 mm
- Height
185 mm
- Features
LED
IP55
- Dim
(Ø x H) 177 mm x 185 mm
- Factory colour
Green
- Case colour
Black
- Lighted picture
Flash
- Material
Plastic
- Signal type
Flash
Flasher
- Type
PMF LED-HI
- Light intensity
315 cd
- Calotte colour
Green
- Max. temperature
55 °C
- Min. temperature
-40 °C
7/9 W
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2890815 Pfannenberg Light LED PMF LED-HI 21155636006 Green Green Flash, Flasher 24 V DC
User & Safety Instructions
User & Safety Instructions 2890815 Pfannenberg Light LED PMF LED-HI 21155636006 Green Green Flash, Flasher 24 V DC
Description
Extremely bright all-round flashing light with green cover and Fresnel lens
- 3 different signal modes adjustable: Flash, flash, rotating mirror effect
- Standard with switch-on current limitation and wide-range power supply 10 - 30 V DC
- For signaling hazardous conditions in safety-relevant applications such as process and plant safety
- Low power consumption, high reliability and long service life through the use of state-of-the-art electronic components - without replacement of mechanical or electrical wearing parts
- Up to 2 out of 4 quadrants can be switched off, saving energy and signaling
- Multiple mounting options - directly with supplied flat seal (DM) or with a stainless steel angle (WM)
- 315 CD, automatically reducible (day/night operation)
- Life of the bulb: > 50000h
- Maximum visibility: 411 m.
- Degree of protection: IP 55 (vertical mounting)
- Dimensions: 177 mm diameter x 185 mm (depending on the type of installation)
- Operating temperature: -40C - +55C
This text is machine translated.
- 3 different signal modes adjustable: Flash, flash, rotating mirror effect
- Standard with switch-on current limitation and wide-range power supply 10 - 30 V DC
- For signaling hazardous conditions in safety-relevant applications such as process and plant safety
- Low power consumption, high reliability and long service life through the use of state-of-the-art electronic components - without replacement of mechanical or electrical wearing parts
- Up to 2 out of 4 quadrants can be switched off, saving energy and signaling
- Multiple mounting options - directly with supplied flat seal (DM) or with a stainless steel angle (WM)
- 315 CD, automatically reducible (day/night operation)
- Life of the bulb: > 50000h
- Maximum visibility: 411 m.
- Degree of protection: IP 55 (vertical mounting)
- Dimensions: 177 mm diameter x 185 mm (depending on the type of installation)
- Operating temperature: -40C - +55C
