Pfannenberg Light PMF LED-HI 21155635007 Red Red Flash, Flasher 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 385.71 / piece)
€ 385.71
plus VAT.
Technical specifications
- Number of modes: 3
- Version: Other
- Function flashing light: Yes
- Flash function: Yes
- Continuous light function: No.
- Black enclosure
- Calotte color: Red
- Power: 6.5 W
- Bulb: LED not replaceable
- Mounting type: Other
- Nominal voltage: 24 V/DC
- Protection class (IP) IP55
- Solar powered: No.
- Standby time of up to 0 hrs
- Power consumption: 0.78 A
- Ambient temperature: -40 °C - 55 °C
- Housing material: Plastic
- Product type
Light
- Operating voltage
24 V DC
- Max. current consumption
0.78 A
- Colour
Red
IP55
- Case colour
Black
- Signal type
Flash
Flasher
- Type
PMF LED-HI
- Calotte colour
Red
- Max. temperature
55 °C
- Min. temperature
-40 °C
6.5 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2890814 Pfannenberg Light PMF LED-HI 21155635007 Red Red Flash, Flasher 24 V DC
User & Safety Instructions
User & Safety Instructions 2890814 Pfannenberg Light PMF LED-HI 21155635007 Red Red Flash, Flasher 24 V DC
Description

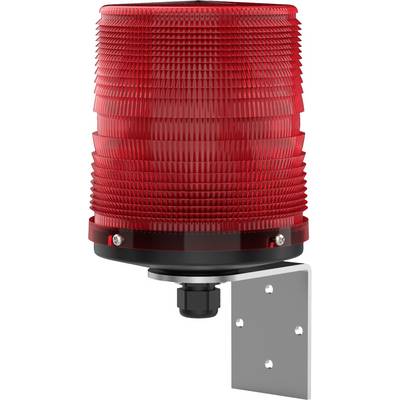

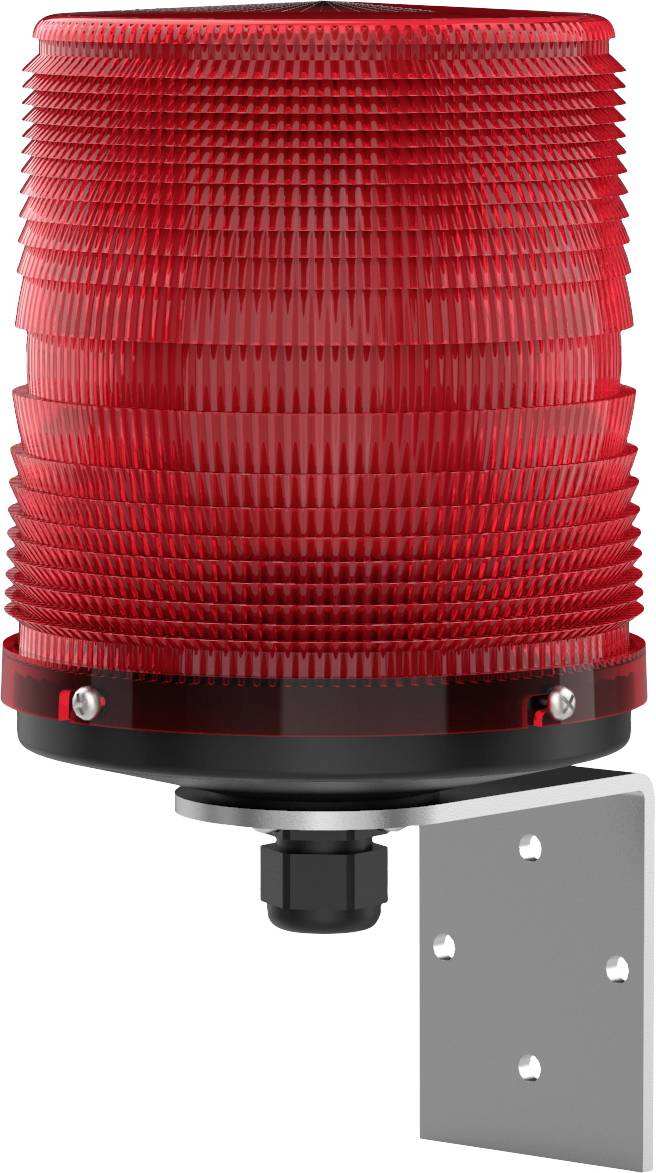

Extremely bright all-round flashing light with red cover and Fresnel lens
- 3 different signal modes adjustable: Flash, flash, rotating mirror effect
- Standard with switch-on current limitation and wide-range power supply 10 - 30 V DC
- For signaling hazardous conditions in safety-relevant applications such as process and plant safety
- Low power consumption, high reliability and long service life through the use of state-of-the-art electronic components - without replacement of mechanical or electrical wearing parts
- Up to 2 out of 4 quadrants can be switched off, saving energy and signaling
- Multiple mounting options - directly with supplied flat seal (DM) or with a stainless steel angle (WM)
- 315 CD, automatically reducible (day/night operation)
- Life of the bulb: > 50000h
- Maximum visibility: 411 m.
- Degree of protection: IP 55 (vertical mounting)
- Dimensions: 177 mm diameter x 185 mm (depending on the type of installation)
- Operating temperature: -40C - +55C
This text is machine translated.
- 3 different signal modes adjustable: Flash, flash, rotating mirror effect
- Standard with switch-on current limitation and wide-range power supply 10 - 30 V DC
- For signaling hazardous conditions in safety-relevant applications such as process and plant safety
- Low power consumption, high reliability and long service life through the use of state-of-the-art electronic components - without replacement of mechanical or electrical wearing parts
- Up to 2 out of 4 quadrants can be switched off, saving energy and signaling
- Multiple mounting options - directly with supplied flat seal (DM) or with a stainless steel angle (WM)
- 315 CD, automatically reducible (day/night operation)
- Life of the bulb: > 50000h
- Maximum visibility: 411 m.
- Degree of protection: IP 55 (vertical mounting)
- Dimensions: 177 mm diameter x 185 mm (depending on the type of installation)
- Operating temperature: -40C - +55C
This text is machine translated.
