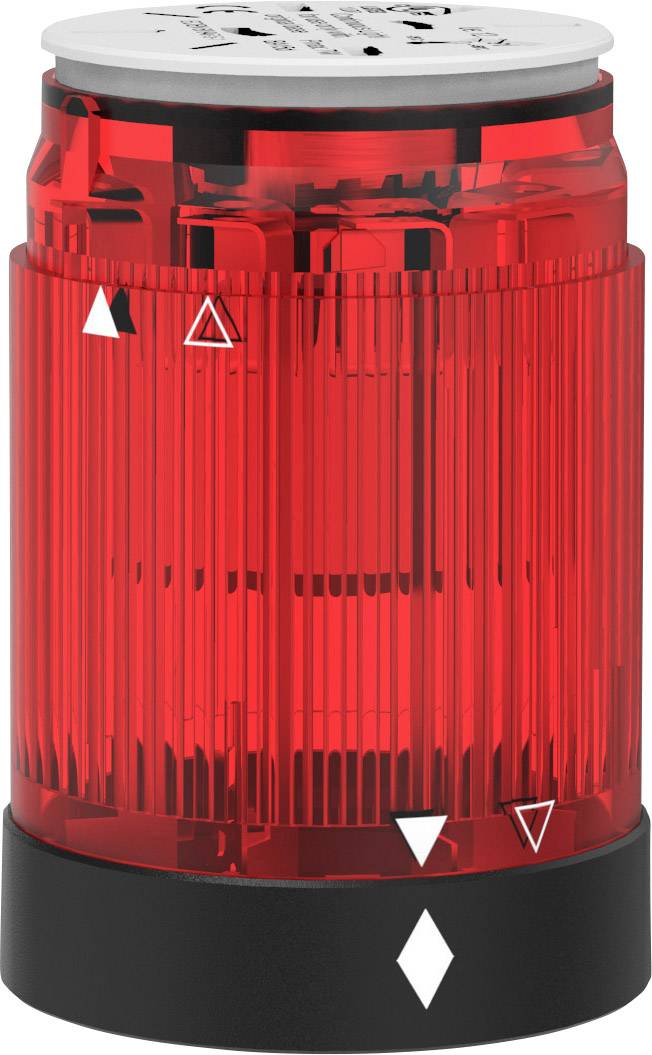

Pfannenberg Signal tower component 28250368050 BR50-LED-M-RD 24V LED MONITOR. Red 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 130.24 / piece)
€ 130.24
plus VAT.
14-day return policy included
Technical specifications
- Type of bulb: LED
- Product type
Signal tower component
- Operating voltage
24 V DC
- Factory colour
Red
- Signal type
Non-stop light signal
- (Ø)
54 mm
IP54
- Dim
(Ø) 54 mm
- Case colour
Black
- Colour
Red
- Type
BR50-LED-M-RD 24V LED MONITOR.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2181985 Pfannenberg Signal tower component 28250368050 BR50-LED-M-RD 24V LED MONITOR. Red 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2181985 Pfannenberg Signal tower component 28250368050 BR50-LED-M-RD 24V LED MONITOR. Red 1 pc(s)
Description
Modular design with robust housing for all indoor and outdoor applications, which are rough
Wherever machine stands need to be displayed and warning signals given
High degree of protection IP 54 (optional IP 65)
Flexible modular system guarantees easy handling
Up to 5 modules with 6 hood colors can be easily combined later by plugging in
Mechanics and electronics are decoupled, resulting in a stable, vibration-insensitive structure
Versatile variation options; attachment by tripod, tube and Direct mounting are possible
Made of environment-friendly materials according to DIN ISO 14000
Monitored module for greater safety; the illuminant is constructed with 2 separate LED strands. If one line fails, the alarm contact is activated and the second line remains lit
This text is machine translated.
Wherever machine stands need to be displayed and warning signals given
High degree of protection IP 54 (optional IP 65)
Flexible modular system guarantees easy handling
Up to 5 modules with 6 hood colors can be easily combined later by plugging in
Mechanics and electronics are decoupled, resulting in a stable, vibration-insensitive structure
Versatile variation options; attachment by tripod, tube and Direct mounting are possible
Made of environment-friendly materials according to DIN ISO 14000
Monitored module for greater safety; the illuminant is constructed with 2 separate LED strands. If one line fails, the alarm contact is activated and the second line remains lit
This text is machine translated.
