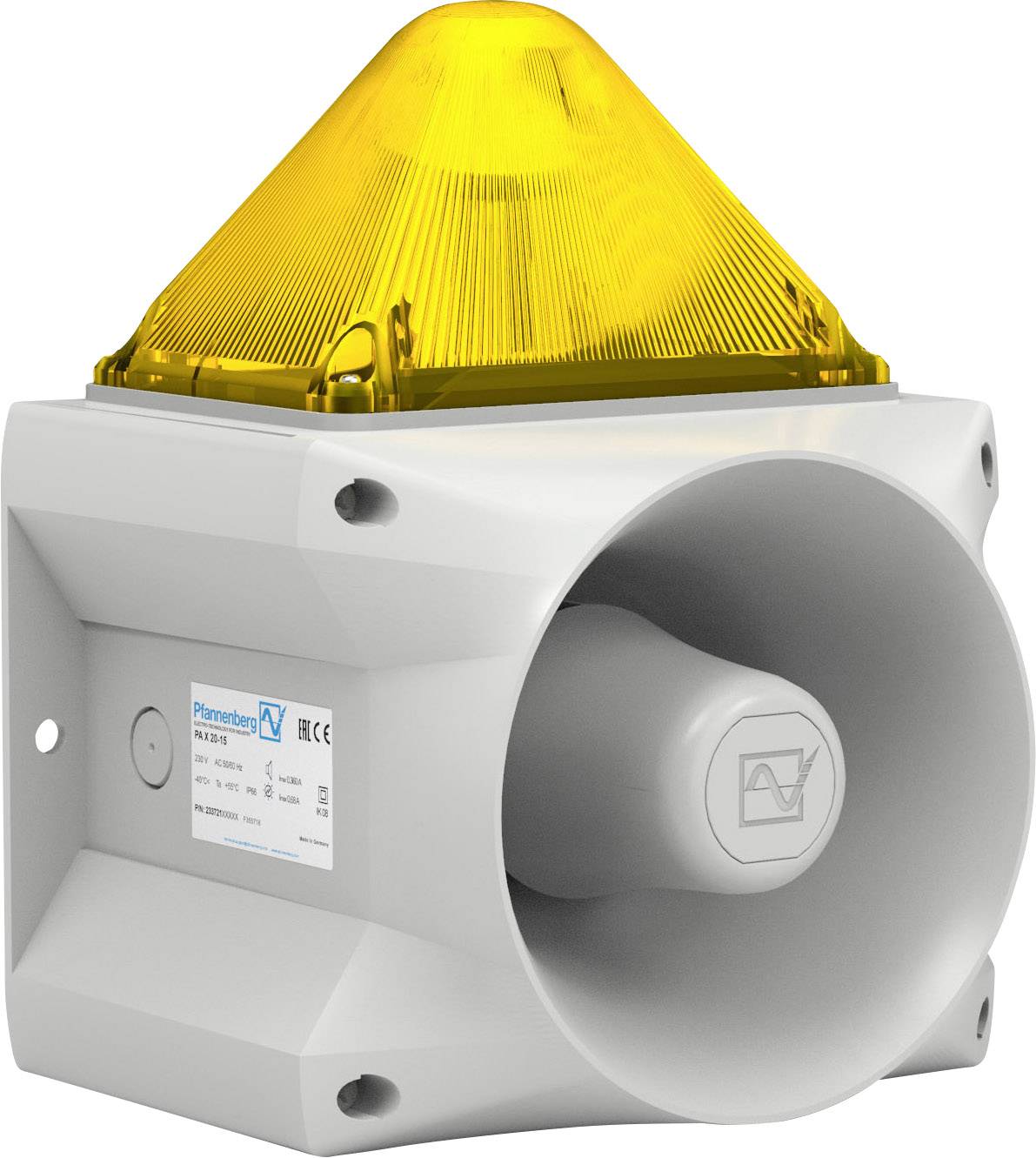

Pfannenberg Visuo-acoustic signalling device PA X 20-15 230 AC YE 7035 Yellow 230 V AC 120 dB
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 903.36 / piece)
€ 903.36
plus VAT.
Technical specifications
- Mounting type: Construction
- Bulb: Xenon
- Type of acoustic signal: Programmable
- Sound pressure level 120 dB
- Product type
Visuo-acoustic signalling device
- Operating voltage
230 V AC
- Max. current consumption
0.42 A
- Factory colour
Yellow
- Colour
Yellow
IP66
- Case colour
Grey
- Type
PA X 20-15 230 AC YE 7035
- Noise emission (max.)
120 dB
- Calotte colour
Yellow
- Acoustic signal
Sound generator
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2181904 Pfannenberg Visuo-acoustic signalling device PA X 20-15 230 AC YE 7035 Yellow 230 V AC 120 dB
User & Safety Instructions
User & Safety Instructions 2181904 Pfannenberg Visuo-acoustic signalling device PA X 20-15 230 AC YE 7035 Yellow 230 V AC 120 dB
Description
Safer; incorrect mounting is practically impossible
Faster; significantly shorter assembly and installation times
More economical, high efficiency and good penetration of acoustic obstacles significantly reduce the number of sound transmitters required
Sound generator and light pre-wired ex works
Different light levels are available for optimal adjustment of the acoustic and visual cover
This text is machine translated.
Faster; significantly shorter assembly and installation times
More economical, high efficiency and good penetration of acoustic obstacles significantly reduce the number of sound transmitters required
Sound generator and light pre-wired ex works
Different light levels are available for optimal adjustment of the acoustic and visual cover
This text is machine translated.
