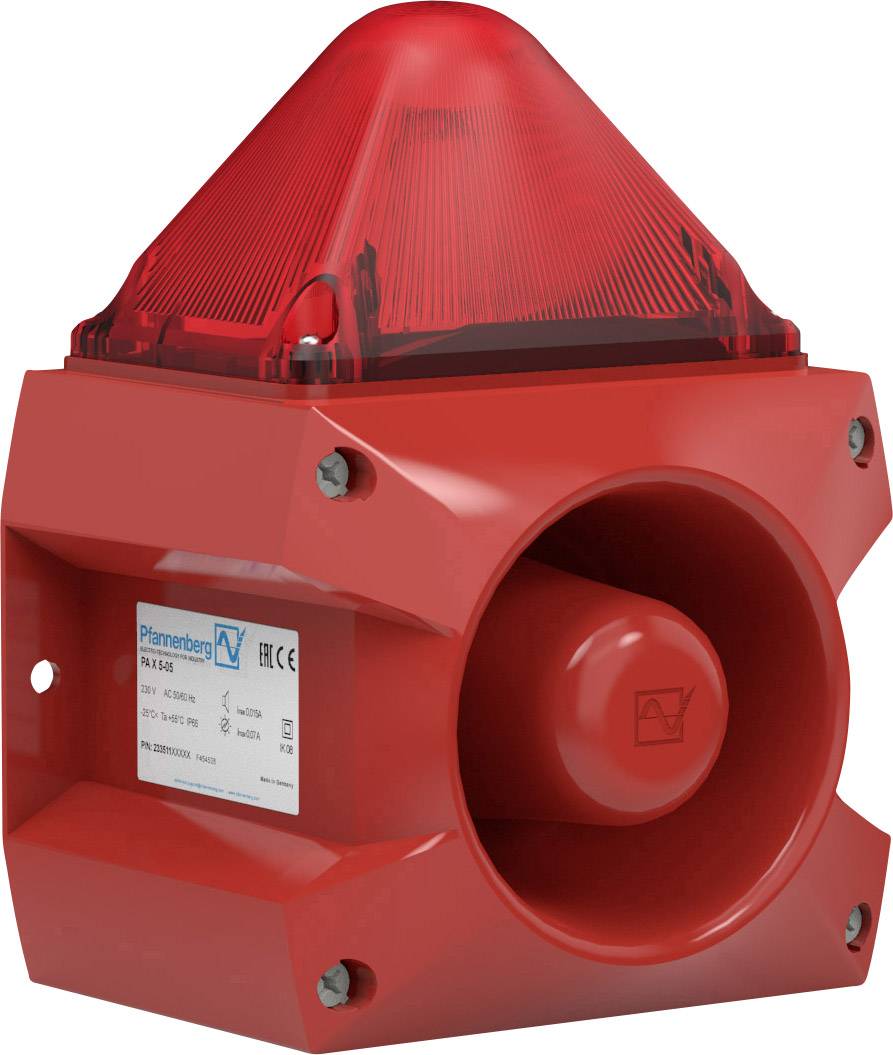

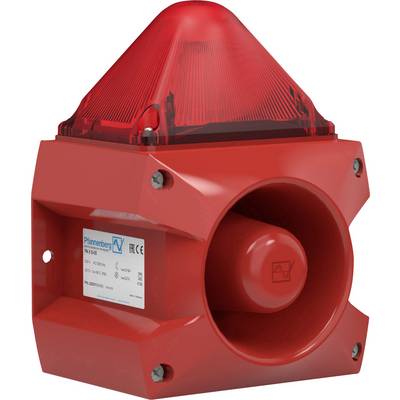

Pfannenberg Visuo-acoustic signalling device Xenon PA X 5-05 230 AC RD Red Programmable 230 V AC 105 dB
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 461.34 / piece)
€ 461.34
plus VAT.
14-day return policy included
Technical specifications
- Mounting type: Construction
- Bulb: Xenon
- Type of acoustic signal: Programmable
- Sound pressure level 105 dB
- Product type
Visuo-acoustic signalling device
- Operating voltage
230 V AC
- Max. current consumption
0.106 A
- Factory colour
Red
- Colour
Red
- Signal type
Programmable
- Features
Xenon
IP66
- Case colour
Red
- Lighted picture
Xenon flash
- Type
PA X 5-05 230 AC RD
- Noise emission (max.)
105 dB
- Calotte colour
Red
- Acoustic signal
Sound generator
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2181875 Pfannenberg Visuo-acoustic signalling device Xenon PA X 5-05 230 AC RD Red Programmable 230 V AC 105 dB
User & Safety Instructions
User & Safety Instructions 2181875 Pfannenberg Visuo-acoustic signalling device Xenon PA X 5-05 230 AC RD Red Programmable 230 V AC 105 dB
Description
Safer; incorrect mounting is practically impossible
Faster; significantly shorter assembly and installation times
More economical, high efficiency and good penetration of acoustic obstacles significantly reduce the number of sound transmitters required
Sound generator and light pre-wired ex works
Different light levels are available for optimal adjustment of the acoustic and visual cover
This text is machine translated.
Faster; significantly shorter assembly and installation times
More economical, high efficiency and good penetration of acoustic obstacles significantly reduce the number of sound transmitters required
Sound generator and light pre-wired ex works
Different light levels are available for optimal adjustment of the acoustic and visual cover
This text is machine translated.
