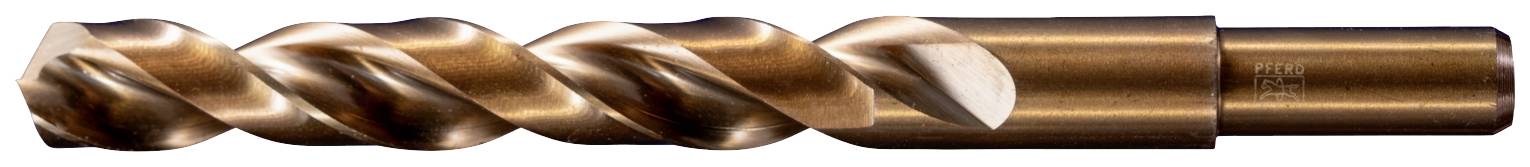

PFERD TOOLS 25203817 SPB DIN 338 HSSE N 16,0 INOX HSSE-Co 5 Twist drill bit 16 mm Total length 178 mm DIN 338 1 pc(s)
EAN:
Part number:
Item no:
Product type
Twist drill bit
Drill hole Ø
16 mm
Content
1 pc(s)
Material
HSSE-Co 5
Material suitability
Metal
Highlights & Details
PFERD spiral drill INOX Ø 16.0 mm HSS-E Co5 N DIN 338 135° for tough and hard materials
- Particularly suitable for tough and hard materials such as alloyed and high-strength steel, stainless steel (INOX)
- Stable tip design
- Very long tool life
- Very good temperature resistance thanks to CO-part
- Excellent chip removal
- High run-out accuracy
- Precise centering and low thrust force thanks to cross-grinding
Technical specifications
- Spiral angle 36°
- RPM of, gray cast iron, white cast iron: 199 RPM
- RPM of, hard non-ferrous metals: 498 RPM
- RPM of stainless and acid-resistant steels: 199 RPM
- RPM of soft non-ferrous metals: 597 RPM
- RPM of, steels above 700 N/mm²: 398 RPM
- RPM of, thermoplastic plastics, fiber-reinforced plastics (GRP/CFK): 299 RPM
- RPM bis, gray cast iron, white cast iron: 498 RPM
- RPM to, hard non-ferrous metals: 995 RPM
- RPM to, rust and acid resistant steels: 398 RPM
- RPM bis, soft non-ferrous metals: 1194 RPM
- RPM bis, steels above 700 N/mm²: 498 RPM
- RPM to, thermopl. Synthetic, fiber-optic. PLASTICS (GRP/CFK) 796 RPM
- Product type
Twist drill bit
- DIN standard
DIN 338
- Type
INOX
- Drill hole Ø
16 mm
- Tip angle
135°
- Content
1 pc(s)
- Material
HSSE-Co 5
- Material properties
M35
- Material suitability
Metal
- Working length
120 mm
- Total length
178 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3047688 PFERD TOOLS 25203817 SPB DIN 338 HSSE N 16,0 INOX HSSE-Co 5 Twist drill bit 16 mm Total length 178 mm DIN 338 1 pc(s)
Information
Information 3047688 PFERD TOOLS 25203817 SPB DIN 338 HSSE N 16,0 INOX HSSE-Co 5 Twist drill bit 16 mm Total length 178 mm DIN 338 1 pc(s)
Information 3047688 PFERD TOOLS 25203817 SPB DIN 338 HSSE N 16,0 INOX HSSE-Co 5 Twist drill bit 16 mm Total length 178 mm DIN 338 1 pc(s)
Description
Drilling tools with cross-grinding for industrial applications Fully ground, right-rotating versions, which generate precise drill holes thanks to their high concentricity and exact centering. Twist drill bits offer PFERD in the STEEL (118° tip angle) and INOX (135° tip angle) versions. High performance drilling tools in the INOX model in HSSE-Co5 (M35) for industrial applications. Fully ground right-hand cut design with cross polished section, which produces accurate boreholes thanks to its high concentricity and exact centering.
Application recommendations
Observe the recommended speeds.
If possible, use high-quality cutting oil or cooling lubricant when drilling metals. This promotes smooth running and extends the lifetime of the drill. Exception: Apply petroleum instead of cutting oil when machining aluminum.
To prevent corrosion, remove the particles from the workpiece when machining stainless steel (INOX). Clean the workpiece chemically or mechanically (etching/polishing, etc.).
Materials
Aluminium
Cast iron
Black temperature casting (GTS, GJMB)
Brass
Bronze
Non-alloy steel
Cast iron
Cast steel
Crust
Plywood
Cobalt base alloys
Copper
Ductile cast iron
Duroplast
Elastomers
Fibre-reinforced thermoplastics (GRP, CFK)
Fibre-reinforced thermoset plastic (GFK, CFK) fiber share ≤ 40 %
Fibre-reinforced thermoset plastic (GRP, CFK) greater/40% fiber content
Grey-iron (GG/GJL, GGG/GJS)
Hard aluminum alloys
Non-ferrous metal, hard
Nickel-based alloys (e.g. Inconell and Hasteloy)
Nickel or titanium super alloys
Other non-ferrous metals
Miscellaneous
Synthetic/plastics
Rolling and ball bearing steels
Soft aluminum alloys
Non-ferrous metal, soft
Soft titanium alloys (tensile strength 500 N/mm²)
Soft wood
Stainless steel
Steel
Steel, cast steel
Steel up to 1,200 N/mm² (less than 38 HRC)
Steel over 700 N/mm² (greater than 220 HB)
Steels up to 700 N/mm² (less than 220 HB)
Thermoplastic
Titanium
Titanium alloys
Tool steels
Tough aluminum alloys
White malleable iron (GTW, GJMW)
Timber
Zinc
Applications
drilling;
Drive types
Bench drill
Machine tool
Core-drilling machine
Robots
Stationary machines
This text is machine translated.
Application recommendations
Observe the recommended speeds.
If possible, use high-quality cutting oil or cooling lubricant when drilling metals. This promotes smooth running and extends the lifetime of the drill. Exception: Apply petroleum instead of cutting oil when machining aluminum.
To prevent corrosion, remove the particles from the workpiece when machining stainless steel (INOX). Clean the workpiece chemically or mechanically (etching/polishing, etc.).
Materials
Aluminium
Cast iron
Black temperature casting (GTS, GJMB)
Brass
Bronze
Non-alloy steel
Cast iron
Cast steel
Crust
Plywood
Cobalt base alloys
Copper
Ductile cast iron
Duroplast
Elastomers
Fibre-reinforced thermoplastics (GRP, CFK)
Fibre-reinforced thermoset plastic (GFK, CFK) fiber share ≤ 40 %
Fibre-reinforced thermoset plastic (GRP, CFK) greater/40% fiber content
Grey-iron (GG/GJL, GGG/GJS)
Hard aluminum alloys
Non-ferrous metal, hard
Nickel-based alloys (e.g. Inconell and Hasteloy)
Nickel or titanium super alloys
Other non-ferrous metals
Miscellaneous
Synthetic/plastics
Rolling and ball bearing steels
Soft aluminum alloys
Non-ferrous metal, soft
Soft titanium alloys (tensile strength 500 N/mm²)
Soft wood
Stainless steel
Steel
Steel, cast steel
Steel up to 1,200 N/mm² (less than 38 HRC)
Steel over 700 N/mm² (greater than 220 HB)
Steels up to 700 N/mm² (less than 220 HB)
Thermoplastic
Titanium
Titanium alloys
Tool steels
Tough aluminum alloys
White malleable iron (GTW, GJMW)
Timber
Zinc
Applications
drilling;
Drive types
Bench drill
Machine tool
Core-drilling machine
Robots
Stationary machines
This text is machine translated.
Hints
Use eye protection!
Observe safety recommendations!
