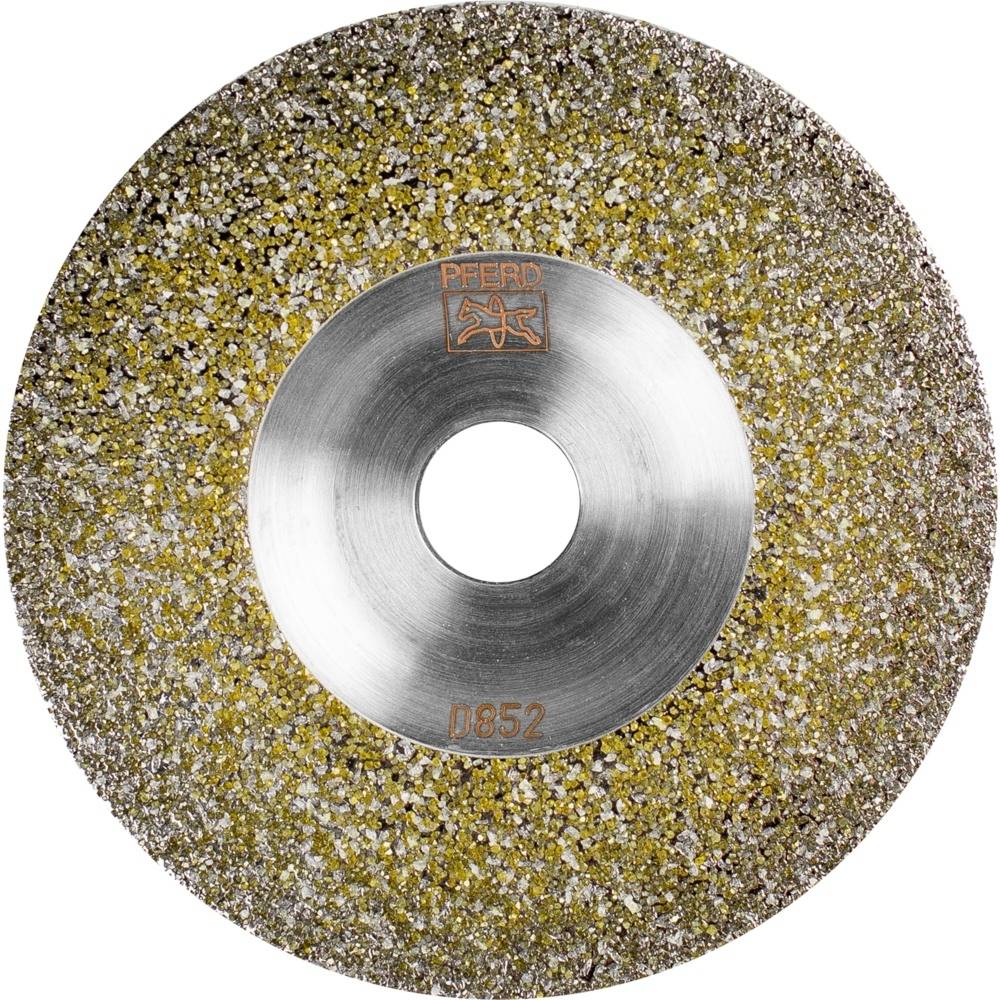

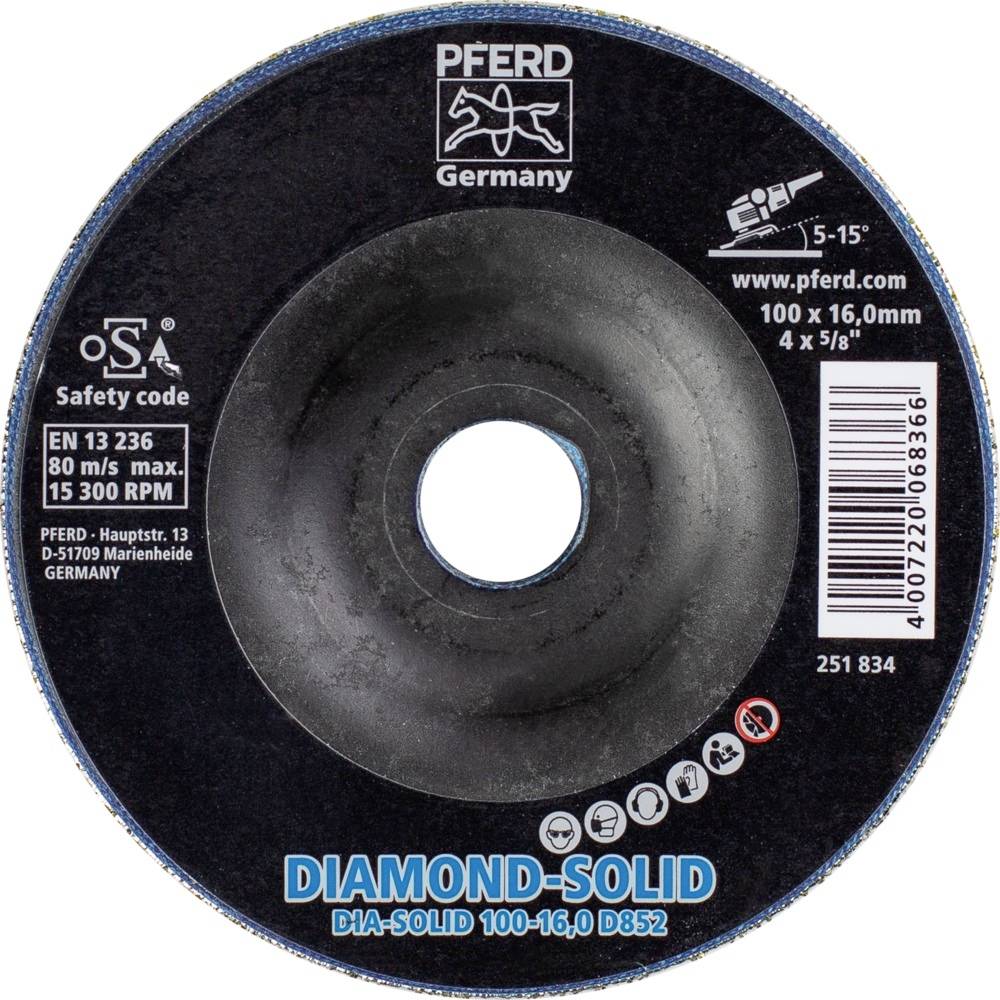

PFERD TOOLS 36610085 Diamond cutting disc Diameter 100 mm Grit size=852 1 pc(s)

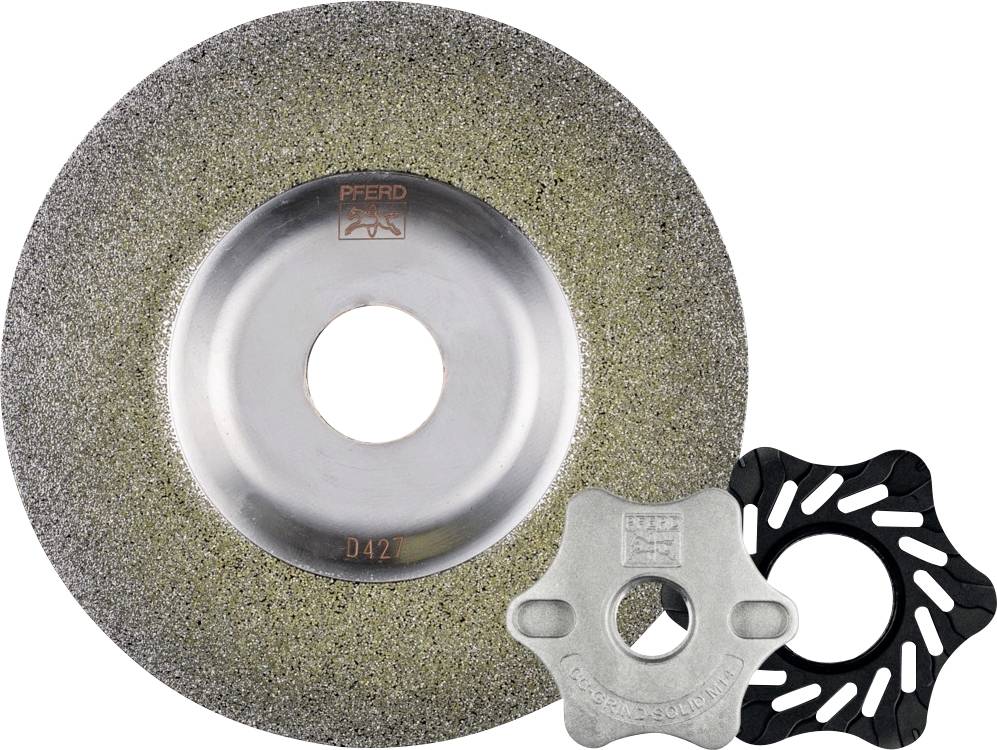

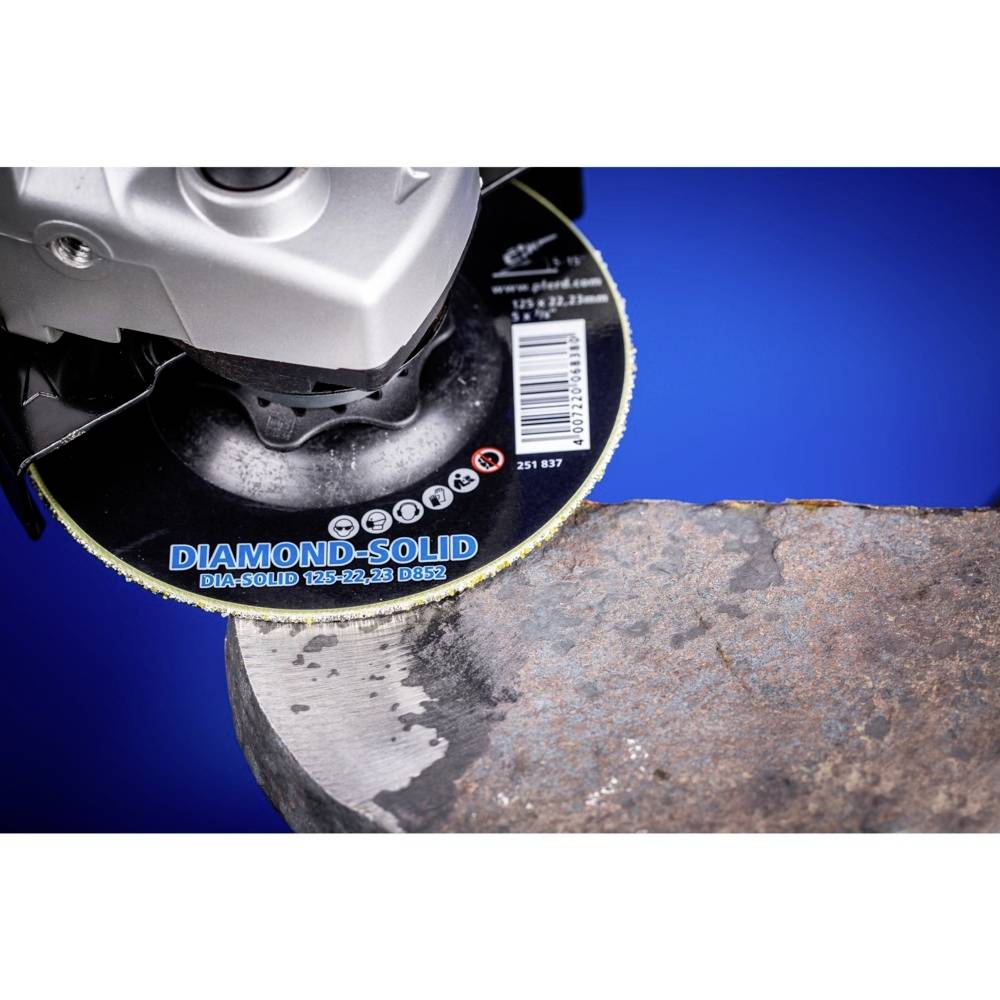

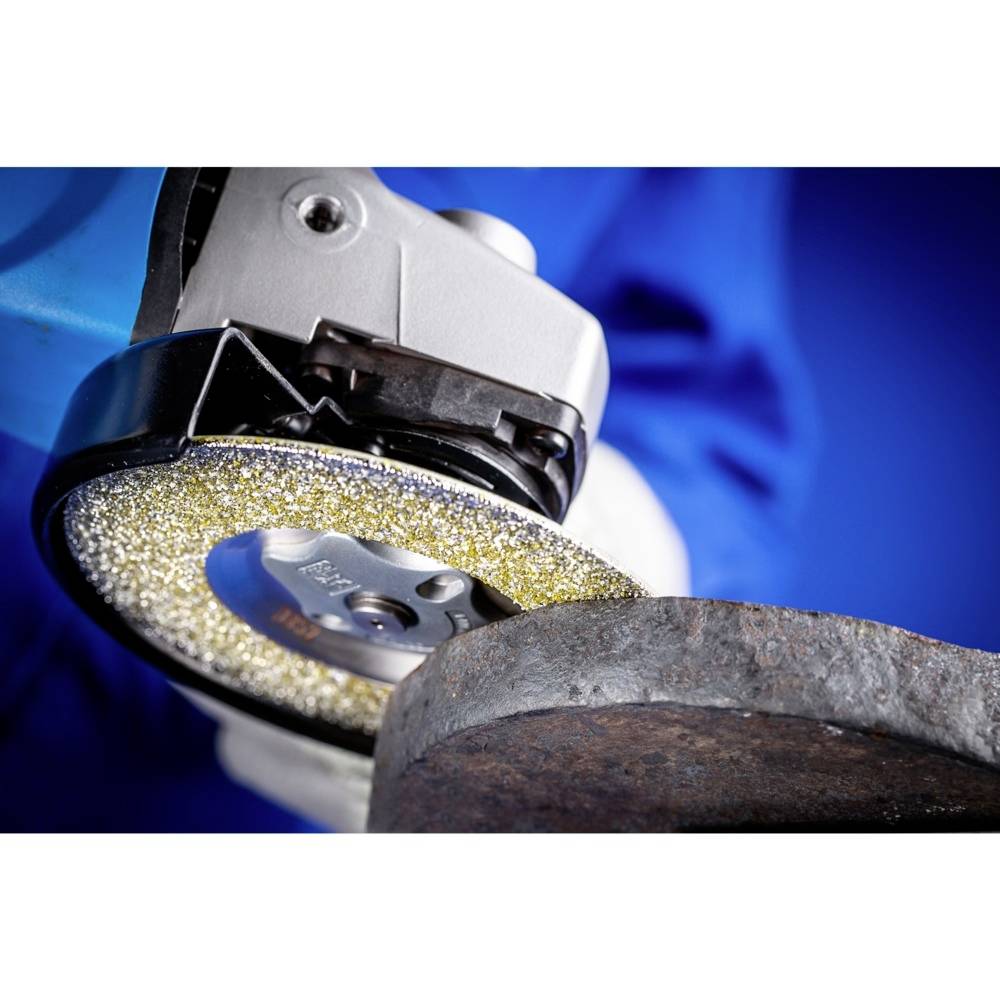

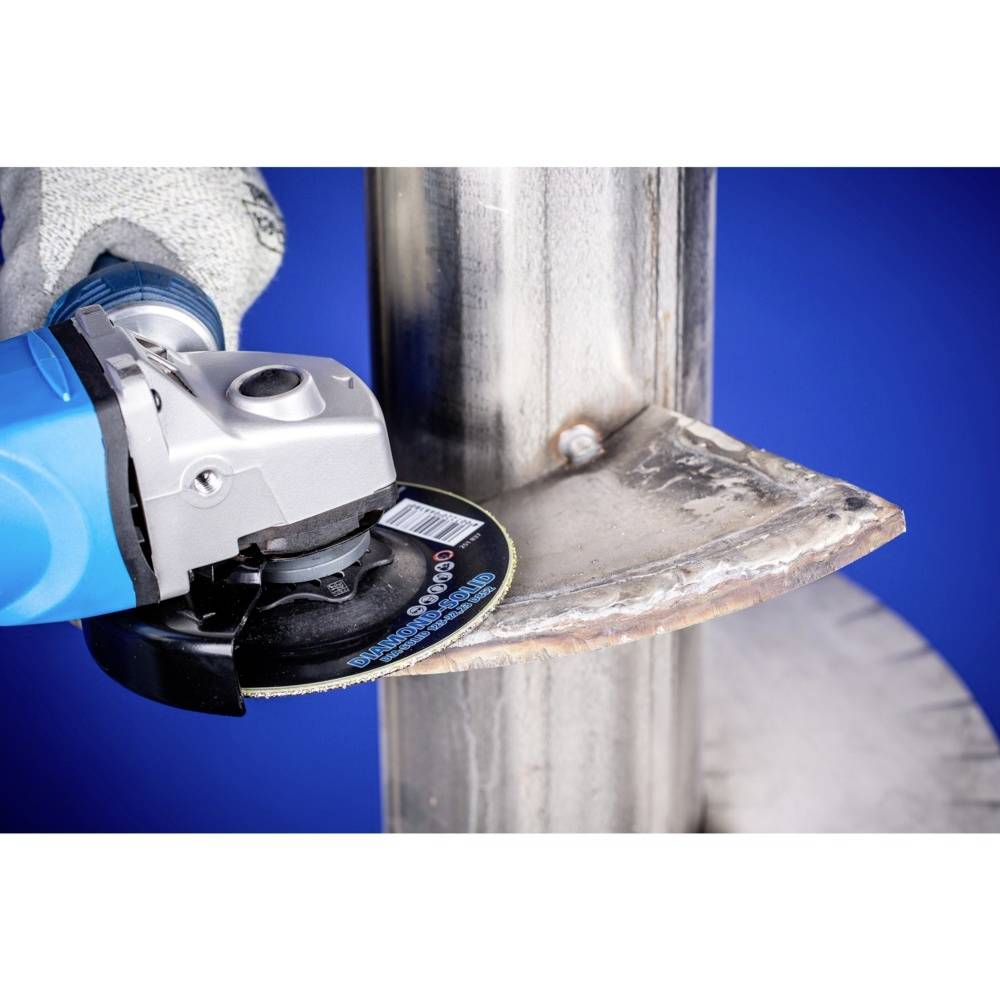

The CC-GRIND SOLID DIAMOND has been specially developed for applications on hard materials that cannot be processed with conventional tools made of corundum or silicon carbide.Drive types:- robots- Angle grinderUses:- Roughing- Sanding- Trim- Elegalize- Deburr- Edge machining- Edge machining (chamfering, rounding)- Lower- Rounding- Discard- Remove oxide layers- Weld seam processingApplication refrence:- Use only with the surface, not suitable for circumferential grinding.- To extend the service life of the grinding wheel on the anti-scaling and wear layers, reduce the cutting speed of the adjustable angle grinder to 30 to 40 m/s.- Use the CC-GRIND-SOLID/FLEX clamping flange set for optimal performance.- If used on an angle grinder with 5/8-11-thread, the appropriate clamping flange set must be ordered separately.Material:- Nickel or titanium super alloys- Grey iron / nodular iron (GG/GJL, GGG/GJS)- Hard metal- Wear protection layers (injection and welding alloys)- Tinder- Technical ceramics

This text is machine translated.
