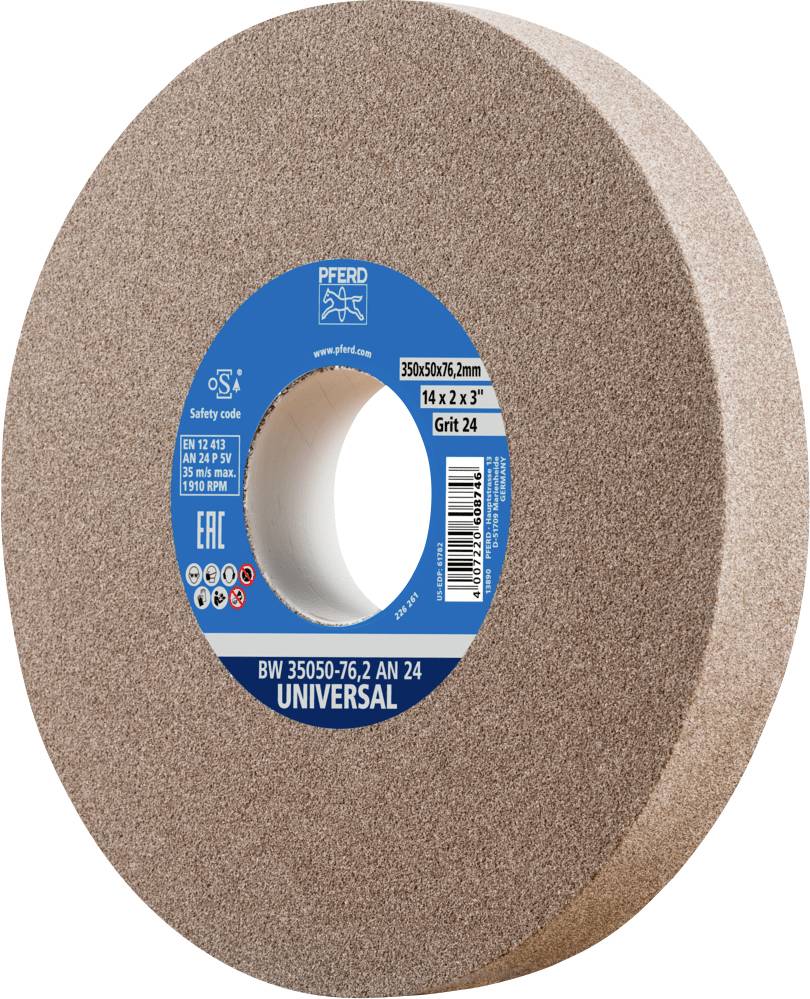

PFERD TOOLS 39010131 Bench grinder disc Diameter 350 mm 24 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
PFERD sanding disc Ø 355x50mm bore Ø 76.2mm A60 for universal grinding tasks
- - Max. RPM 1850 RPM
- - Metric width: 50 mm
- - Ø hole: 76.2 mm
- - ø Outer metric: 350 mm
- - Grain size: 24
Technical specifications
- Product type
Bench grinder disc
- (Ø)
350 mm
- Bore Ø
76.2 mm
- Grit size
24
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374666 PFERD TOOLS 39010131 Bench grinder disc Diameter 350 mm 24 1 pc(s)
Description
The PFERD sanding blocks are designed for use with the common sandstands on the market. The UNIVERSAL design is Ideal for the universal application in the workshop.
Technical data
- Max. RPM 1850 RPM
- Metric width: 50 mm
- Ø hole: 76.2 mm
- ø Outer metric: 350 mm
- Grain size: 24
Benefits:
- High service life.
- High dimensional stability.
- High grinding performance.
- Integrated reducing sleeves for mounting on almost every grinding block spindle.
Application recommendations:
- A regular removal of the disc releases sharp grain and keeps a straight sanding surface.
- Adjust the workpiece support continuously to the grinding disc diameter (gap width max. 3 mm).
Editable materials:
- Cast iron
- Stainless steel (INOX)
- Steel
Processing tasks:
- Deburr
- Sharpen
- Edge machining (chamfering, rounding)
Drive types:
- Grinding block
Safety Instructions:
- The maximum permissible peripheral speed is 35 m/s.
- For safety reasons, the specified maximum permissible speed must never be exceeded.
- Before mounting, the grinding body must be subjected to a sound sample to ensure that it does not have any cracks (undamaged abrasives give a clear sound).
This text is machine translated.
Technical data
- Max. RPM 1850 RPM
- Metric width: 50 mm
- Ø hole: 76.2 mm
- ø Outer metric: 350 mm
- Grain size: 24
Benefits:
- High service life.
- High dimensional stability.
- High grinding performance.
- Integrated reducing sleeves for mounting on almost every grinding block spindle.
Application recommendations:
- A regular removal of the disc releases sharp grain and keeps a straight sanding surface.
- Adjust the workpiece support continuously to the grinding disc diameter (gap width max. 3 mm).
Editable materials:
- Cast iron
- Stainless steel (INOX)
- Steel
Processing tasks:
- Deburr
- Sharpen
- Edge machining (chamfering, rounding)
Drive types:
- Grinding block
Safety Instructions:
- The maximum permissible peripheral speed is 35 m/s.
- For safety reasons, the specified maximum permissible speed must never be exceeded.
- Before mounting, the grinding body must be subjected to a sound sample to ensure that it does not have any cracks (undamaged abrasives give a clear sound).
This text is machine translated.
Features
- Long tool life
- High dimensional stability
- High grinding performance
- Built-in adapter sleeves for mounting on almost every sanding block spindle.
Hints
The maximum permissible circumferential speed is 35 m/s. The stated maximum permissible speed must never be exceeded for safety reasons. Before the grinding body is clamped, it must be subjected to a sound sample to ensure that it does not have any cracks (undamaged abrasives give a clear sound).
