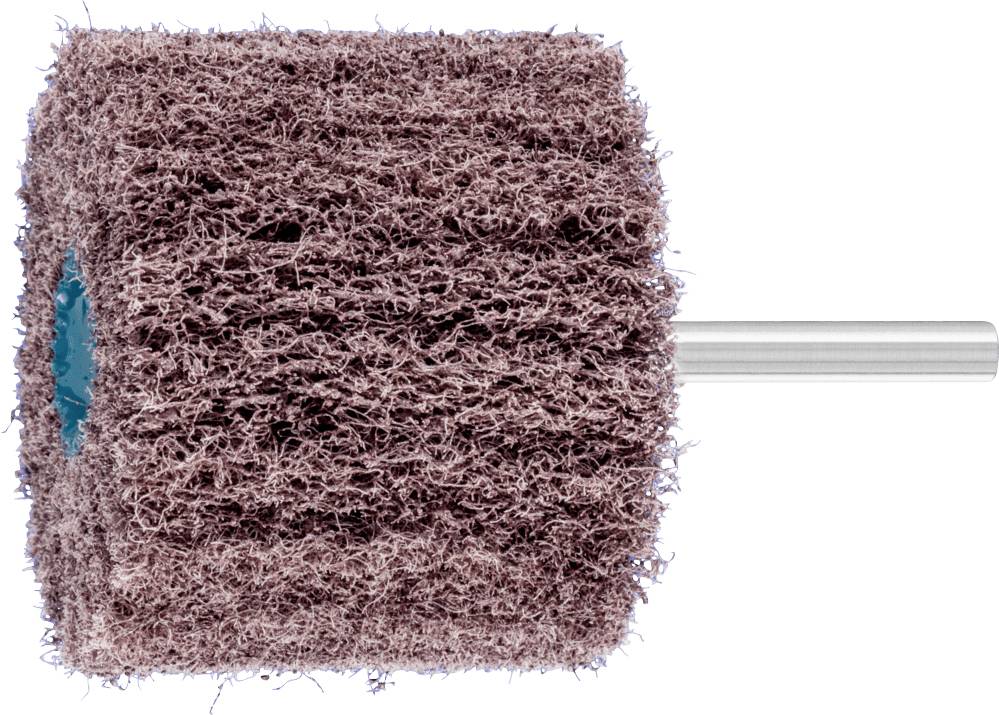

PFERD TOOLS 44661100 Grinding bit Diameter 60 mm 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
PFERD POLINOX fleece-ground pin high performance PNL Ø 60x50mm shaft-Ø 6 mm A100 for fine grinding and finishing
- - Max. RPM 10000 RPM
- - RPM, opt.: 5000 RPM
- - Metric width: 50 mm
- - Abrasives: Corundum A
- - ø Outer metric: 60 mm
- - Ø Shaft metric: 6 mm
- - Grain size: 100
- - Length, shaft: 40 mm
Technical specifications
- Product type
Grinding bit
- Shank Ø
6 mm
- Grit size
100
- (Ø)
60 mm
- Content
10 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374720 PFERD TOOLS 44661100 Grinding bit Diameter 60 mm 10 pc(s)
Description
POLINOX HP grinding pencils are made of polyamide fleece, in which abrasive grain is embedded. The sanding fleece is arranged radial in a lamellar shape. An extremely high service life is achieved through the densely packed lamellas. The tool is mainly used for surface machining.
Technical data
- Max. RPM 10000 RPM
- RPM, opt.: 5000 RPM
- Metric width: 50 mm
- Abrasives: Corundum A
- ø Outer metric: 60 mm
- Ø Shaft metric: 6 mm
- Grain size: 100
- Length, shaft: 40 mm
Benefits:
- Cooler grinding and low thermal load on the workpiece.
- No addition of the tool due to open structure and high flexibility of the nonwovens.
- Particularly aggressive grinding.
Application recommendations:
- For best performance at a recommended cutting speed of 10-20 m/s. An ideal compromise is achieved between removal power, surface quality, thermal load of the workpiece and tool wear.
Editable materials:
- Aluminium
- Brass
- Bronze
- Cast steel
- Cobalt base alloys
- Copper
- Fibre-reinforced thermoplastics (GRP, CFK)
- Hardened, tempered steels over 1,200 N/mm² (less than 38 HRC)
- Stainless steel (INOX)
- Steel materials with a hardness greater than 54 HRC
- Steels up to 1,200 N/mm² (less than 38 HRC)
- Thermoplastic
- Titanium
- Titanium alloys
- Zinc
Processing tasks:
- Clean
- Deburr
- Step-by-step fine grinding
- Roughing
- Structuring (matting, line matting and satinating)
- Surface treatment
Drive types:
- Flexible shaft drive
- Straight grinder
Safety Instructions:
- The maximum permissible peripheral speed is 32 m/s.
- For safety reasons, the specified maximum permissible speed must never be exceeded.
This text is machine translated.
Technical data
- Max. RPM 10000 RPM
- RPM, opt.: 5000 RPM
- Metric width: 50 mm
- Abrasives: Corundum A
- ø Outer metric: 60 mm
- Ø Shaft metric: 6 mm
- Grain size: 100
- Length, shaft: 40 mm
Benefits:
- Cooler grinding and low thermal load on the workpiece.
- No addition of the tool due to open structure and high flexibility of the nonwovens.
- Particularly aggressive grinding.
Application recommendations:
- For best performance at a recommended cutting speed of 10-20 m/s. An ideal compromise is achieved between removal power, surface quality, thermal load of the workpiece and tool wear.
Editable materials:
- Aluminium
- Brass
- Bronze
- Cast steel
- Cobalt base alloys
- Copper
- Fibre-reinforced thermoplastics (GRP, CFK)
- Hardened, tempered steels over 1,200 N/mm² (less than 38 HRC)
- Stainless steel (INOX)
- Steel materials with a hardness greater than 54 HRC
- Steels up to 1,200 N/mm² (less than 38 HRC)
- Thermoplastic
- Titanium
- Titanium alloys
- Zinc
Processing tasks:
- Clean
- Deburr
- Step-by-step fine grinding
- Roughing
- Structuring (matting, line matting and satinating)
- Surface treatment
Drive types:
- Flexible shaft drive
- Straight grinder
Safety Instructions:
- The maximum permissible peripheral speed is 32 m/s.
- For safety reasons, the specified maximum permissible speed must never be exceeded.
This text is machine translated.
Features
- Cool sanding and low thermal load on the workpiece
- No adding of the tool thanks to the open structure and high flexibility of the fleece material
- Particularly aggressive grinding.
Hints
The maximum permissible circumferential speed is 32 m/s. The stated maximum permissible speed must never be exceeded for safety reasons.
