PFERD TOOLS 44698515 Grinding bit Diameter 80 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

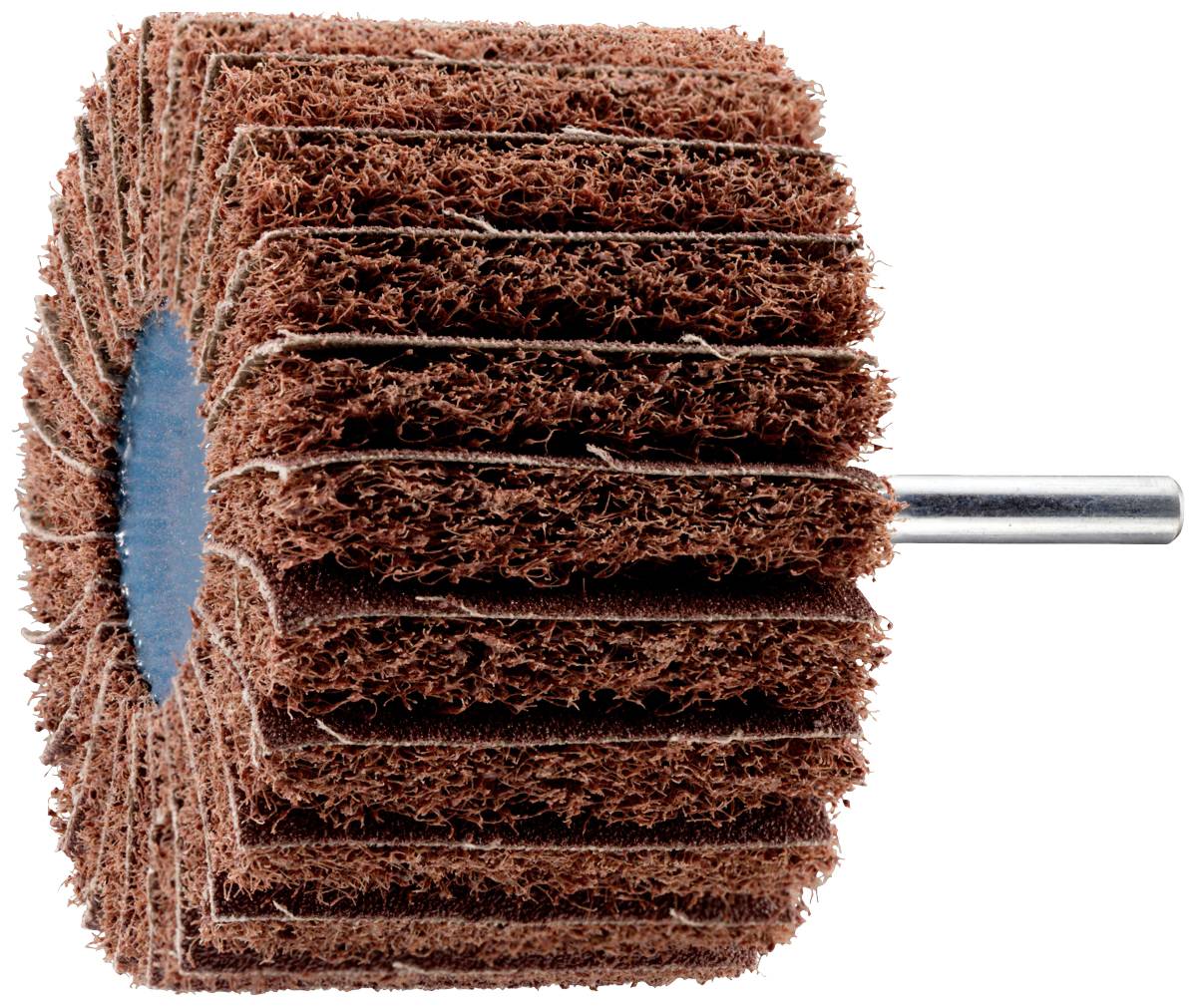

PFERD POLINOX fleece/grinding pin PNZ Ø 80x50mm Shaft-Ø 6 mm A80 for fine grinding and finish
- Optimum contour adjustment through high flexibility
- Cool sanding and low thermal load on the workpiece
- No adding of the tool thanks to the open structure and high flexibility of the fleece material
Technical specifications
- RPM, 7500 RPM max.
- RPM, opt. 4000 RPM
- Metric width 50 mm
- Length, shaft 40 mm
- Product type
Grinding bit
- Shank Ø
6 mm
- Grit size
80
- Material
Fleece
- (Ø)
80 mm
- Content
1 pc(s)
- Height
50 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3047864 PFERD TOOLS 44698515 Grinding bit Diameter 80 mm 1 pc(s)
Information
Information 3047864 PFERD TOOLS 44698515 Grinding bit Diameter 80 mm 1 pc(s)
Description
POLINOX grinding pins are made of polyamide fleece, in which grinding grain is embedded. The sanding fleece is arranged radially in the shape of a leaf, with grinding tissue between the blades. The ribbed design results in a higher material removal rate and a coarser cut pattern.
Application recommendations
For best performance at a recommended cutting speed of 10-20 m/s. An ideal compromise is achieved between removal power, surface quality, thermal load of the workpiece and tool wear.
HORSE VALUE
PFERDERGONOMICS recommends POLINOX grinding pins to sustainably reduce vibration and noise development and improve working comfort.
This text is machine translated.
Application recommendations
For best performance at a recommended cutting speed of 10-20 m/s. An ideal compromise is achieved between removal power, surface quality, thermal load of the workpiece and tool wear.
HORSE VALUE
PFERDERGONOMICS recommends POLINOX grinding pins to sustainably reduce vibration and noise development and improve working comfort.
This text is machine translated.
Hints
The maximum permissible circumferential speed is 32 m/s.
The stated maximum permissible speed must never be exceeded for safety reasons.
