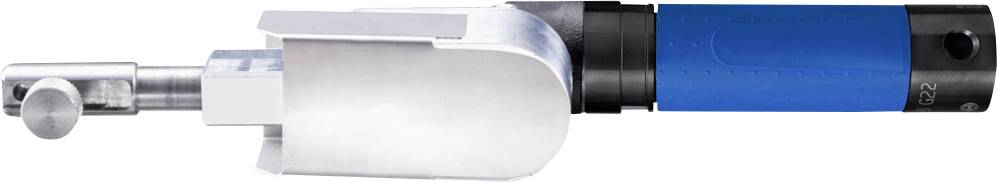

PFERD TOOLS BHA 7 G22 OVA 86400002 Belt sander handle
EAN:
Part number:
Item no:
Highlights & Details
PFERD belt grinding hand piece BHA 7 G22 OVA
- - Max. RPM 17100 RPM
- - Speed range, from: 11000 RPM
- - Speed range, up to: 17100 RPM
- - Belt speed of 13.3 m/s.
- - Belt speed, up to: 20.6 m/s.
- - Gear ratio: 1:1
- - Metric width: 45 mm
- - Usable bandwidth: 520, 610
- - Handpiece coupling G: 22
- - Length metric: 300 mm
- - Net weight: 0,766 kg
- - Height: 75 mm
Technical specifications
- Product type
Belt sander handle
- Length
300 mm
- Weight
0.766 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374837 PFERD TOOLS BHA 7 G22 OVA 86400002 Belt sander handle
Description
Tape grinding hand piece with belt grinding attachment and friction clutch G22/Ø 22 mm, suitable for BW 7 DIN 10/G22, BW 7 DIN 10/G22 2 m, BW 7 DIN 10/G22 OHA, BW 7 DIN 10/G22 OHA 2 m. Band grinding attachment without attached arm. Belt grinding attachment holder suitable for belt grinding attachment arm BVA 9/25 x 520, BVA 9/25-1 x 520, BVA 4/16 x 520, BVA 9/16 x 520, BVA 12/19 x 520 and BVA 18/23 x 520. Per spanner 1x SKS SW 2.5 mm and 1x SKS SW 4 mm, 1 protective cover.
Technical data
- Max. RPM 17100 RPM
- Speed range, from: 11000 RPM
- Speed range, up to: 17100 RPM
- Belt speed of 13.3 m/s.
- Belt speed, up to: 20.6 m/s.
- Gear ratio: 1:1
- Metric width: 45 mm
- Usable bandwidth: 520, 610
- Handpiece coupling G: 22
- Length metric: 300 mm
- Net weight: 0,766 kg
- Height: 75 mm
This text is machine translated.
Technical data
- Max. RPM 17100 RPM
- Speed range, from: 11000 RPM
- Speed range, up to: 17100 RPM
- Belt speed of 13.3 m/s.
- Belt speed, up to: 20.6 m/s.
- Gear ratio: 1:1
- Metric width: 45 mm
- Usable bandwidth: 520, 610
- Handpiece coupling G: 22
- Length metric: 300 mm
- Net weight: 0,766 kg
- Height: 75 mm
This text is machine translated.
