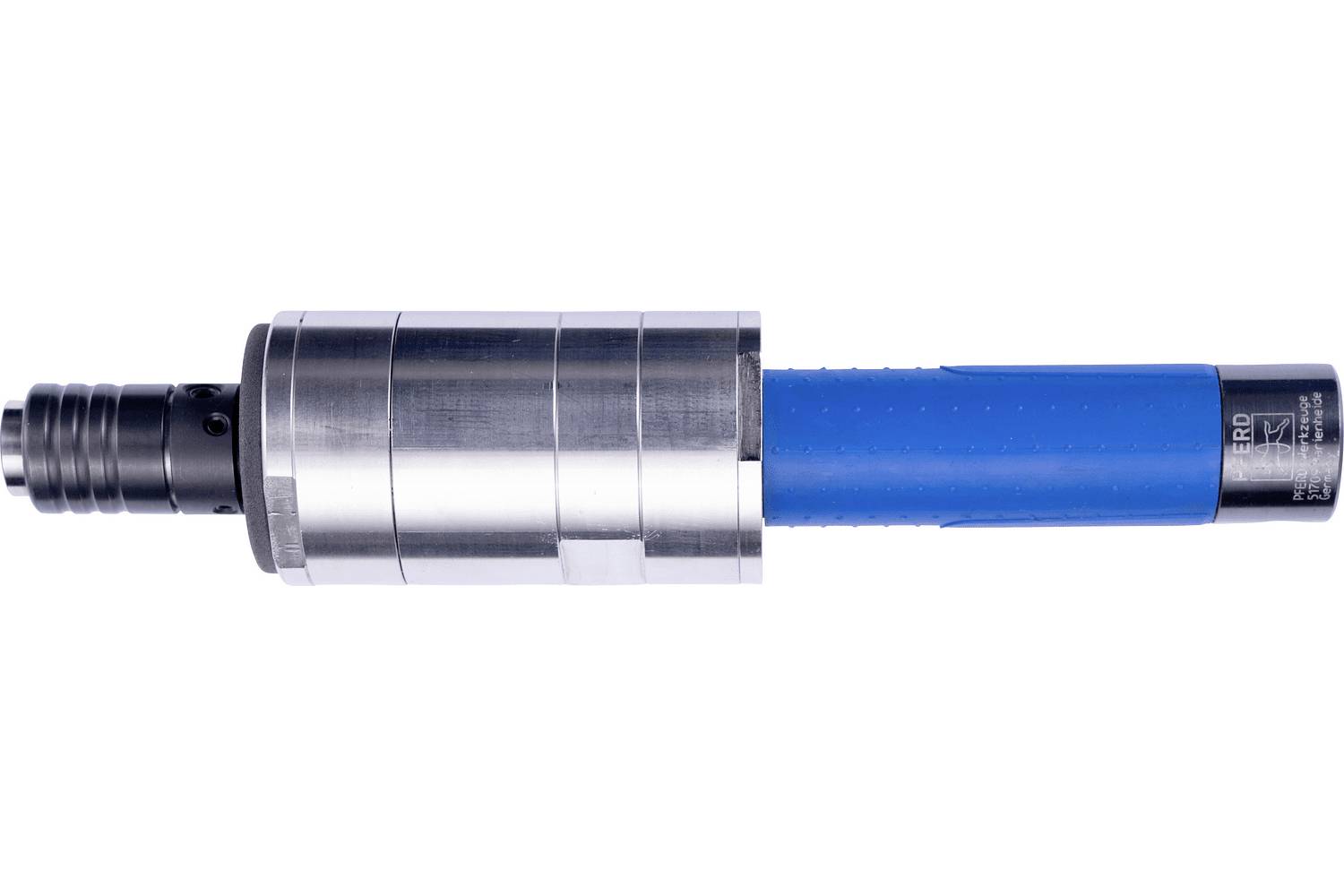

PFERD TOOLS HAQ 10 G28 RS 87101807 Robot spindle 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS robot spindle HAQ 10 G28 RS max. 18,000 RPM
- Design: System flexible shaft 10
Technical specifications
- - Max. RPM 18000 RPM
- - Speed range, from: 750 RPM
- - Speed range, up to: 18000 RPM
- - Gear ratio: 1:1
- - Design: System flexible shaft 10
- - Metric width: 60 mm
- - Direction of rotation: Clockwise
- - Handpiece coupling G: 28
- - Length metric: 286.8 mm
- - Net weight: 3,425 kg
- - Workpiece-side coupling Ø [mm]: 28 mm
- - Ambient temperature in operation: -10 | + 40
- - Maximum reliable speed: 18000 RPM
- - ø Outer metric: 60 mm
- - Height: 60 mm
- Product type
Robot spindle
- Length
286.8 mm
- Weight
3.425 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773114 PFERD TOOLS HAQ 10 G28 RS 87101807 Robot spindle 1 pc(s)
Description
Straight hand-piece for the stationary use. Can be connected to all flexible shafts with sliding connection G28. The maximum drive speed is 18,000 RPM. 2 spanner (DM SW 15/20 mm ).
Benefits:
- Maximum flexibility through the quick-change tool holder.

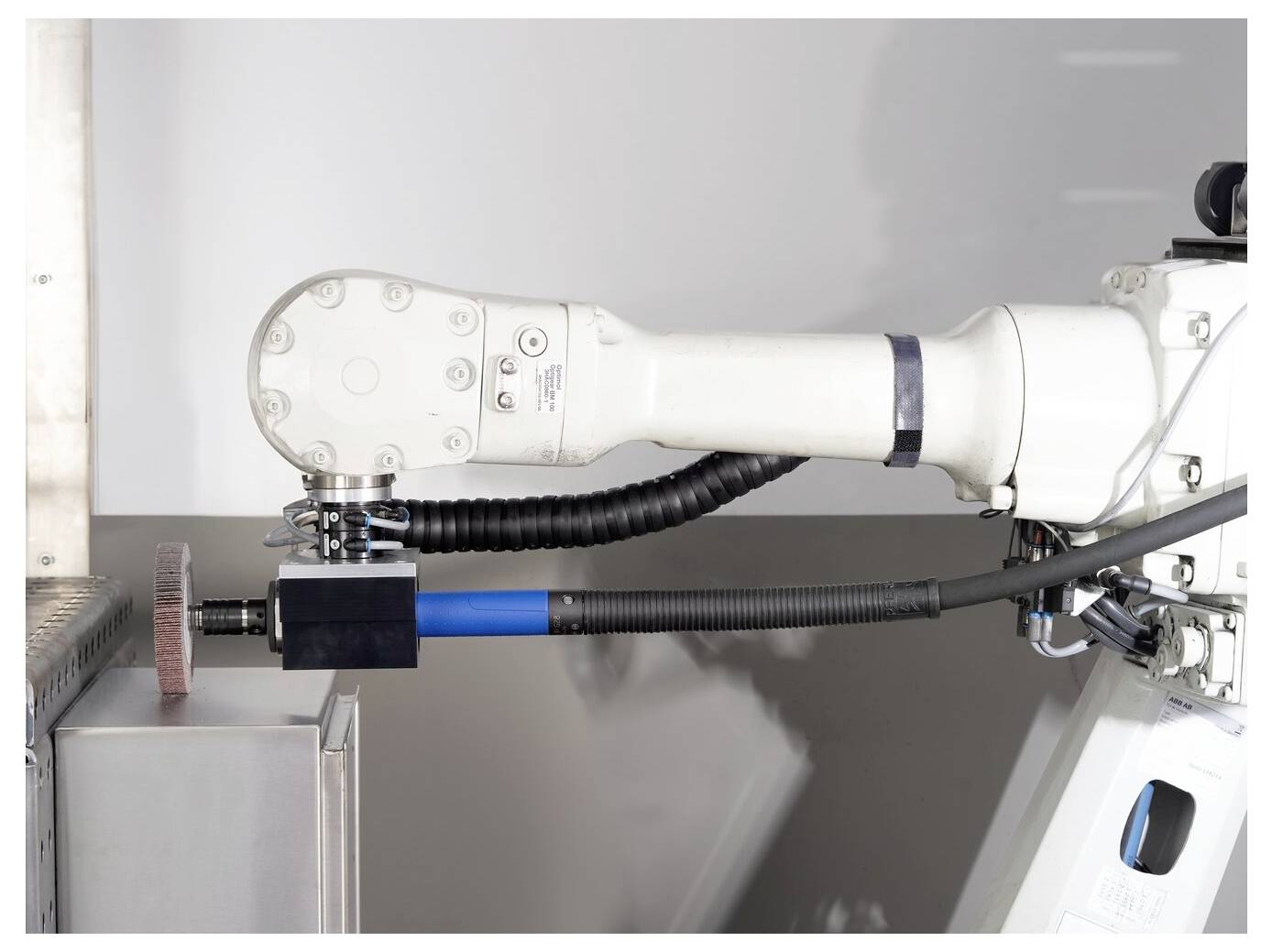

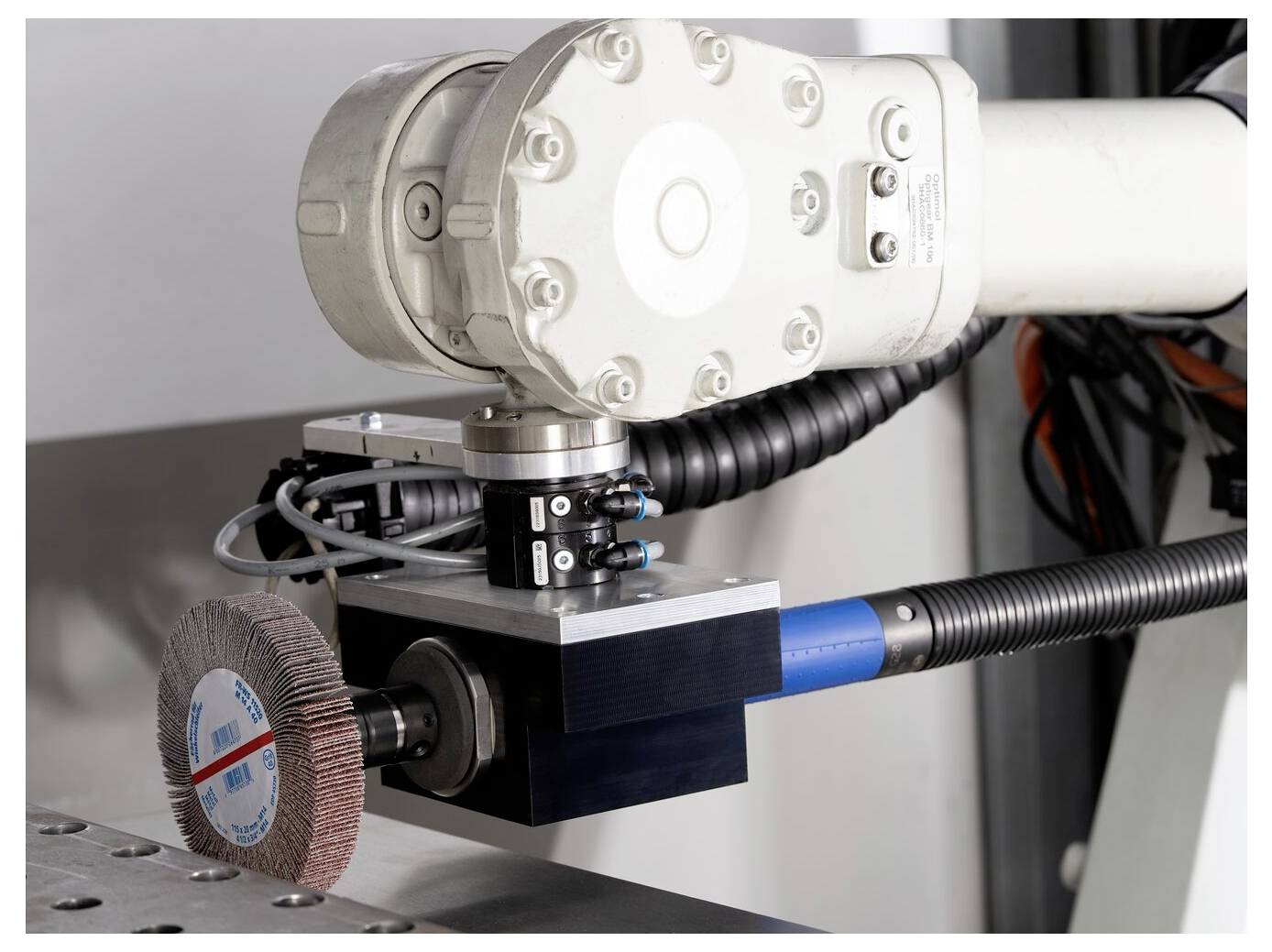

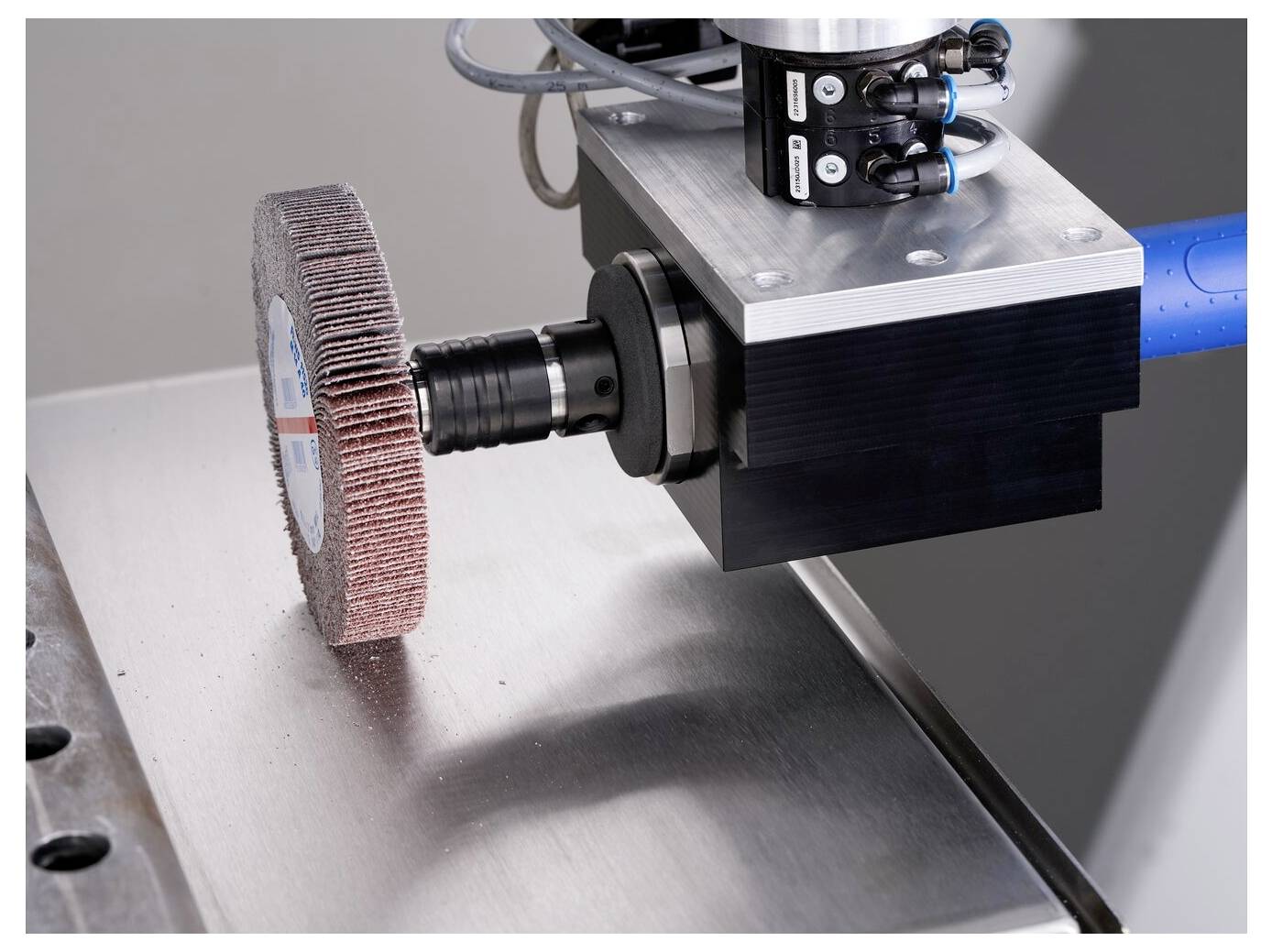

- Allows the use of flexible shaft drives as straight grinder in robot cells.
This text is machine translated.
Benefits:
- Maximum flexibility through the quick-change tool holder.
- Allows the use of flexible shaft drives as straight grinder in robot cells.
This text is machine translated.
