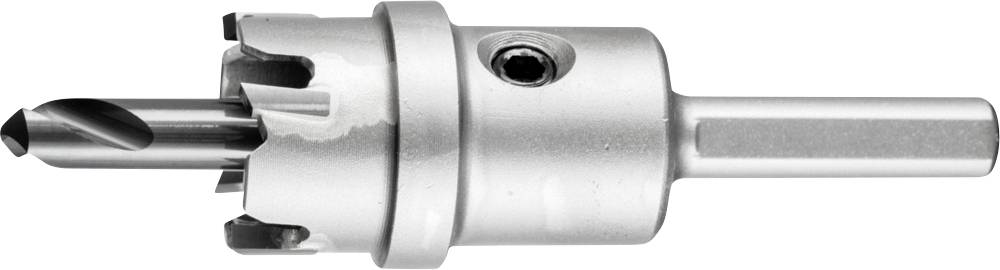

PFERD TOOLS LOS HM 2008 25402008 Hole cutter 20 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Hole cutter
Drill hole Ø
20 mm
Material
Carbide metal
Material suitability
Aluminium
Non-ferrous metal
Stainless steel
Plastic
Steel
Cast steel
Shank Ø
7 mm
Technical specifications
- Opt RPM Stainless Steel (INOX) from: 320 RPMOpt RPM stainless steel (INOX) up to 800 RPMOpt RPM plastic by: 700 RPMOpt RPM plastic up to: 1050 RPMOpt RPM NE-Metals of: 700 RPMOpt RPM NE-metals up to: 1050 RPMOpt RPM Steel of: 630 RPMOpt RPM Steel up to 950 RPM
- Product type
Hole cutter
- Drill hole Ø
20 mm
- Material
Carbide metal
- Material suitability
Aluminium
Non-ferrous metal
Stainless steel
Plastic
Steel
Cast steel
- Shank Ø
7 mm
- Height
8 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2439026 PFERD TOOLS LOS HM 2008 25402008 Hole cutter 20 mm 1 pc(s)
Description

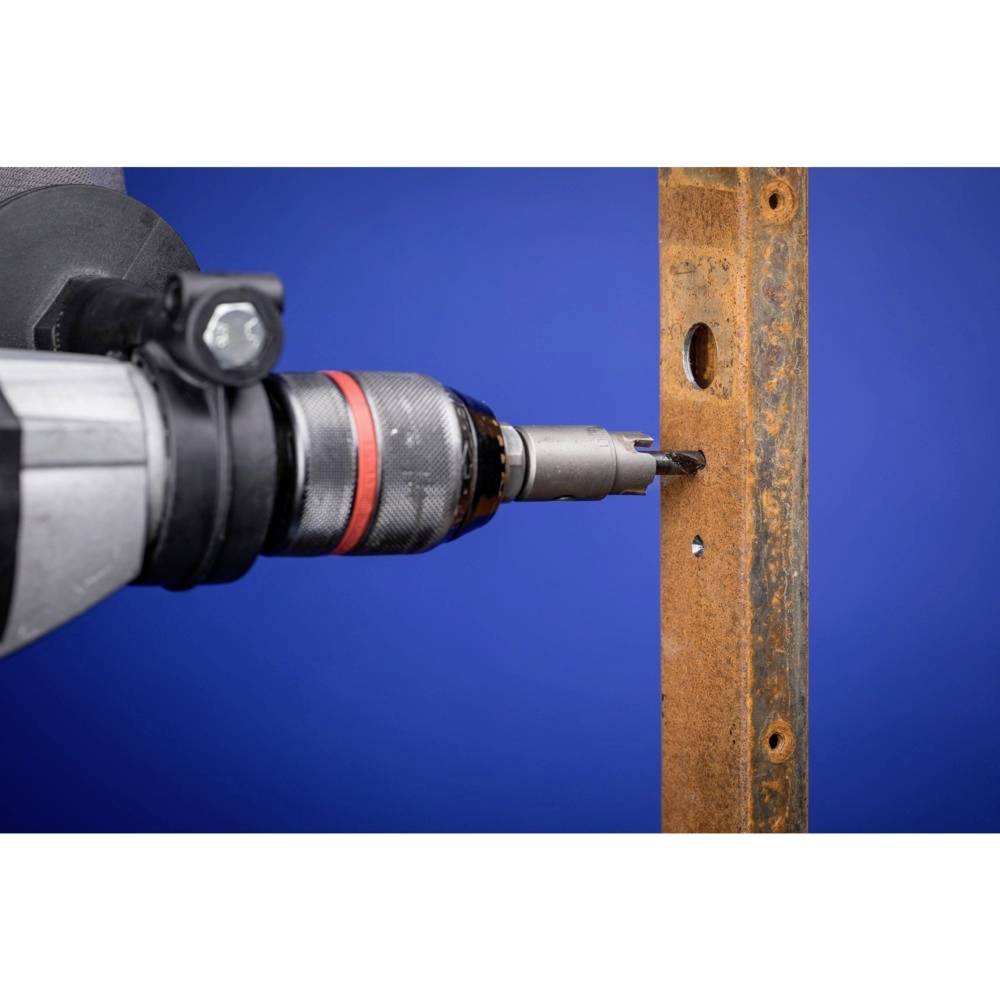

The flat version (tool height 8 mm) is used for machining flat material up to a max. Suitable material thickness of 4 mmDrive types:- Drill- Stator drillUses:- Drilling- Create breakthroughsMaterial:- Aluminium- Non-ferrous metal- Non-ferrous metal soft- Stainless steel (INOX)- Plastics- Steel, cast steel
