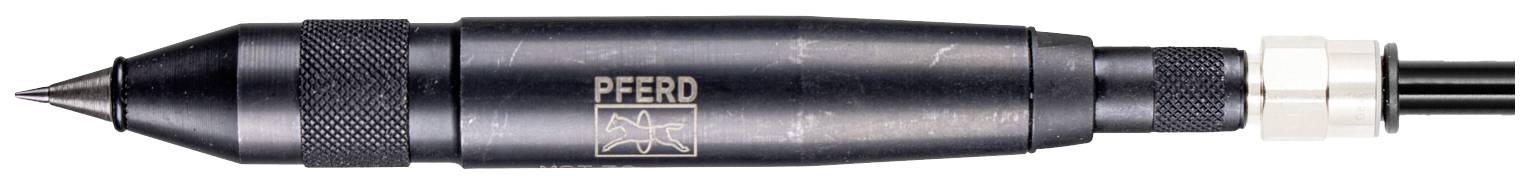

PFERD TOOLS MST 32 DV G 80600150 Pneumatic marker 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DL-Mach. And accessories MST 32 DV G
- Through its exhaust duct to the front, it can blow away the removed dirt in the frontVery high lift frequencyEasy to guide thanks to its slim and light designThe drive is suitable for longer use as a rotary valve version
Technical specifications
- Exhaust outlet: FrontFrequency up to 32000 stroke/min.Height: 17 mmInner-Ø Supply air hose: 4 mmAir consumption (idling): 0.03 m³/min.Air consumption (at load): 0.02 m³/min.Needle width: G (coarse)Valve design: Rotation
- Product type
Pneumatic marker
- External thread
1/4" (6.3 mm)
- (Ø)
4 mm
- Length
162 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632123 PFERD TOOLS MST 32 DV G 80600150 Pneumatic marker 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2632123 PFERD TOOLS MST 32 DV G 80600150 Pneumatic marker 1 pc(s)
Description
The high stroke rate marker pen is suitable for marking and marking. The exhaust duct is located at the front. The compressed air drive with rotary valve must be used with oil. 2.5 m supply air hose with thread connection 1/4" outside and plug-in socket with thread (STGI), HM-engraving needle. The design has a fine engraving needle.
