PFERD TOOLS PBA 2/200 HV OVA Pneumatic straight grinder 6.3 bar
EAN:
Part number:
Item no:
Highlights & Details
PFERD compressed air belt grinder PBA 2/200 HV OVA Band length: 305 mm x Width: 3-16 mm
- - Operating pressure: 6.3 bar
- - Power output: 230 watts
- - Belt speed of 22 m/s.
- - Valve version: Lever
- - Design: Without belt grinding attachment arm
- - Metric width: 30 mm
- - Air consumption, idle: 0.55 m³/min.
- - Air consumption, with load: 0.45 m³/min.
- - Length metric: 210 mm
- - Number of oil drops [min]: 3 drops
- - Net weight: 0,604 kg
- - Inner ø supply hose: 6 mm
- - Exhaust air outlet: Rear
- - Height: 75 mm
Technical specifications
- Design: Without belt grinding attachment arm
- Product type
Pneumatic straight grinder
- Air consumption
0.55 m³/min
- Max. operating pressure
6.3 bar
- Operation pressure
6.3 bar
- Weight
0.604 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374821 PFERD TOOLS PBA 2/200 HV OVA Pneumatic straight grinder 6.3 bar
Description

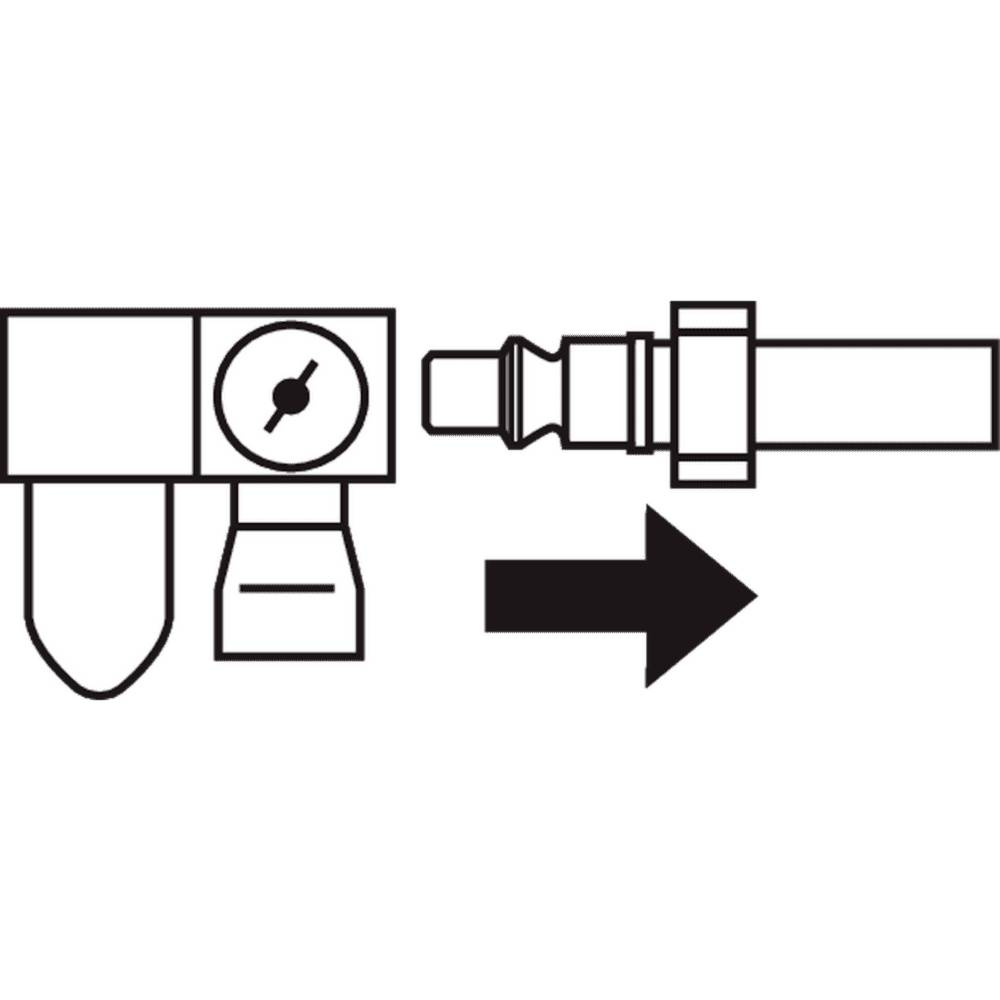

The air outlet duct from the compressed air drive is located at the rear. Technically sophisticated compressed air belt sander with a belt length of 305 mm x belt width 3 - 16 mm, exhaust outlet at the rear and dead man circuit by safety lever valve. 1 m and 2.5 m air supply hose with threaded connection 1/4" external and plug-in socket with thread (STGI), 1 wrench, protective cover. Belt sander suitable for belt grinding attachment arms BSVAK 9/25 x 305, BSVAK 9/25-1 x 305, BSVAK 4/16 x 305, BSVAK 9/9 x 305 and BSVAK 9/16 x 305.
Technical data
- Operating pressure: 6.3 bar
- Power output: 230 watts
- Belt speed of 22 m/s.
- Valve version: Lever
- Design: Without belt grinding attachment arm
- Metric width: 30 mm
- Air consumption, idle: 0.55 m³/min.
- Air consumption, with load: 0.45 m³/min.
- Length metric: 210 mm
- Number of oil drops [min]: 3 drops
- Net weight: 0,604 kg
- Inner ø supply hose: 6 mm
- Exhaust air outlet: Rear
- Height: 75 mm
Benefits:
- No dust swirling on the workpiece side.
- Safe working by dead man connection.
- Handy, compact shape.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Technical data
- Operating pressure: 6.3 bar
- Power output: 230 watts
- Belt speed of 22 m/s.
- Valve version: Lever
- Design: Without belt grinding attachment arm
- Metric width: 30 mm
- Air consumption, idle: 0.55 m³/min.
- Air consumption, with load: 0.45 m³/min.
- Length metric: 210 mm
- Number of oil drops [min]: 3 drops
- Net weight: 0,604 kg
- Inner ø supply hose: 6 mm
- Exhaust air outlet: Rear
- Height: 75 mm
Benefits:
- No dust swirling on the workpiece side.
- Safe working by dead man connection.
- Handy, compact shape.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Features
- No dust swirling on the workpiece side
- Safe working with dead man's circuit
- Handy, compact design.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure.
