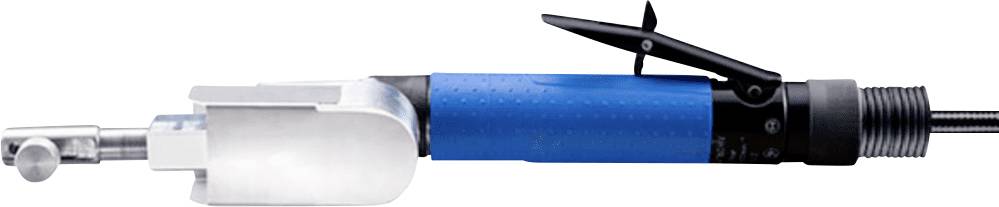

PFERD TOOLS PBA 4/160 HV OVA Pneumatic straight grinder 6.3 bar
EAN:
Part number:
Item no:
Highlights & Details
PFERD compressed air belt grinder PBA 4/160 HV OVA Band length: 520mm x width: 3-20 mm
- - Operating pressure: 6.3 bar
- - Power output: 370 watts
- - Belt speed of 19.3 m/s.
- - Valve version: Lever
- - Design: Without belt grinding attachment arm
- - Metric width: 39 mm
- - Air consumption, idle: 0.55 m³/min.
- - Air consumption, with load: 0.6 m³/min.
- - Length metric: 365 mm
- - Number of oil drops [min]: 3 drops
- - Net weight: 1,191 kg
- - Inner ø supply hose: 8 mm
- - Exhaust air outlet: Rear
- - Height: 75 mm
Technical specifications
- Design: Without belt grinding attachment arm
- Product type
Pneumatic straight grinder
- Air consumption
0.55 m³/min
- Max. operating pressure
6.3 bar
- Operation pressure
6.3 bar
- Weight
1.191 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374820 PFERD TOOLS PBA 4/160 HV OVA Pneumatic straight grinder 6.3 bar
Description

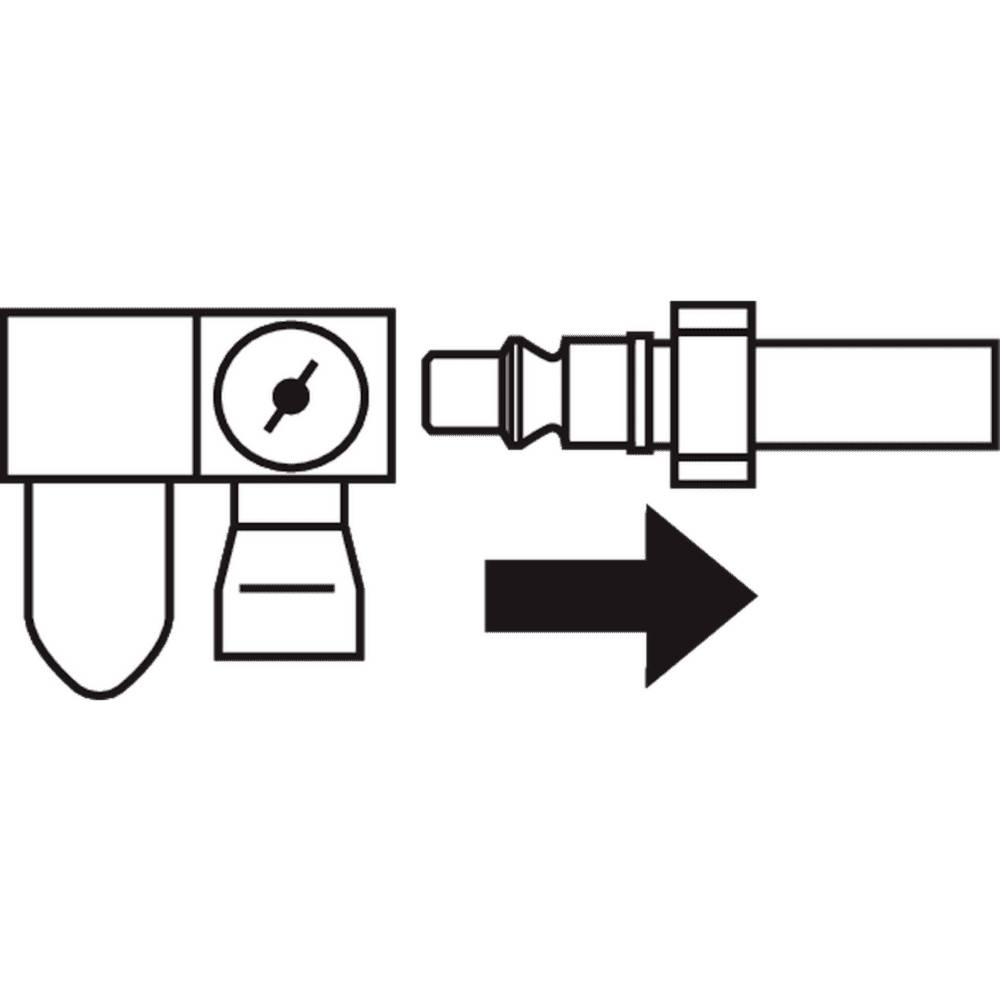

The air outlet duct from the compressed air drive is located at the rear. Technically sophisticated compressed air belt grinder with a belt length of 520 mm (*610 mm) x bandwidth 3 – 20 mm, exhaust air outlet at the rear and dead man circuit by safety lever valve. 1 m and 2.5 m air supply hose with 1/4" thread connection and plug-in socket with thread (STGI), protective cover, 2 wrench. Belt sander suitable for belt grinding attachment arms BVA 9/25 x 520, BVA 9/25-1 x 520, BVA 4/16 x 520, BVA 9/16 x 520, BVA 12/19 x 520 and BVA 18/23 x 520.
Technical data
- Operating pressure: 6.3 bar
- Power output: 370 watts
- Belt speed of 19.3 m/s.
- Valve version: Lever
- Design: Without belt grinding attachment arm
- Metric width: 39 mm
- Air consumption, idle: 0.55 m³/min.
- Air consumption, with load: 0.6 m³/min.
- Length metric: 365 mm
- Number of oil drops [min]: 3 drops
- Net weight: 1,191 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 75 mm
Benefits:
- No dust swirling on the workpiece side.
- Safe working by dead man connection.
- The belt grinding attachment can be swiveled on the drive machine.
Application recommendations:
- The belt grinding adapter BSAD 41/36 x 610 achieves a belt length of 610 mm.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Technical data
- Operating pressure: 6.3 bar
- Power output: 370 watts
- Belt speed of 19.3 m/s.
- Valve version: Lever
- Design: Without belt grinding attachment arm
- Metric width: 39 mm
- Air consumption, idle: 0.55 m³/min.
- Air consumption, with load: 0.6 m³/min.
- Length metric: 365 mm
- Number of oil drops [min]: 3 drops
- Net weight: 1,191 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 75 mm
Benefits:
- No dust swirling on the workpiece side.
- Safe working by dead man connection.
- The belt grinding attachment can be swiveled on the drive machine.
Application recommendations:
- The belt grinding adapter BSAD 41/36 x 610 achieves a belt length of 610 mm.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Features
- No dust swirling on the workpiece side
- Safe working with dead man's circuit
- The belt grinding attachment can be swiveled on the drive machine.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure.
