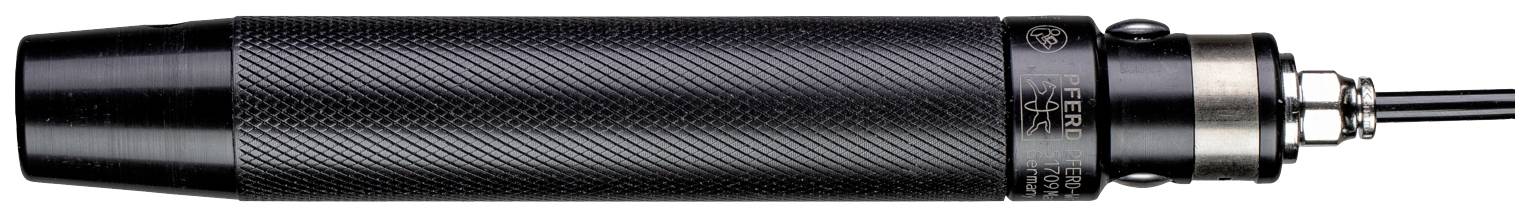

PFERD TOOLS PF 4/84 SV 80600210 Pneumatic air file 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DL-Mach. And accessories PF 4/84 SV
- Through its exhaust duct to the front, it can blow away the removed dirt in the frontThe drive is suitable for files with round shankSmooth running and high precisionVery low vibration valuesThe drive is suitable as a sliding valve version for continuous use
Technical specifications
- Exhaust outlet: FrontFrequency up to 8400 stroke/min.Stroke length 4 mmHeight: 30 mmInternal Ø Supply air hose: 3 mmAir consumption (idling): 0.03 m³/min.Air consumption (at load): 0.03 m³/min.Valve design: Slide
- Product type
Pneumatic air file
- External thread
1/4" (6.3 mm)
- (Ø)
3 mm
- Length
200 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632125 PFERD TOOLS PF 4/84 SV 80600210 Pneumatic air file 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2632125 PFERD TOOLS PF 4/84 SV 80600210 Pneumatic air file 1 pc(s)
Description
File machine for machining processes of filing, grinding and polishing with smooth running and high precision. The exhaust duct is located at the front. The compressed air file system is suitable for tools with mounting ø 3 to 4 mm. The drive must be used with oil. 1.5 m supply air hose with 1/4" thread connection on the outside and plug-in socket with thread (STGI), 1 clamping key. The sliding valve makes the drive suitable for comfortable continuous use.
