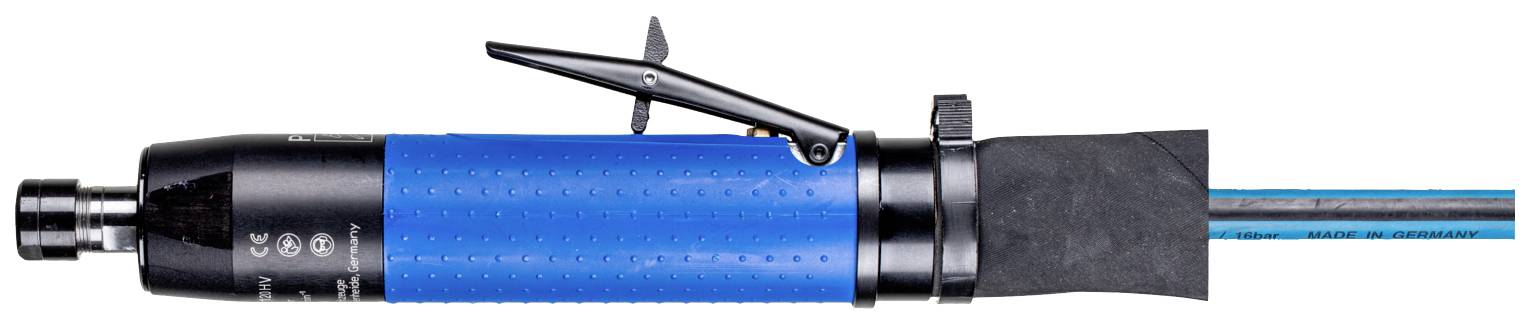

PFERD TOOLS PGAS 10/120 HV 80101061 Pneumatic straight grinder 1000 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Compressed air pneumatic wheel grinder
- No dust swirling on the workpiece side;Thanks to the collet chuck holder optimally suitable for the recommended shank tools;safe working by dead man switching;easy to guide at high power;
Technical specifications
- Exhaust outlet: RearSpeed: 12000 RPMCollet chuck Ø 6 mmHeight: 46 mmInner Ø Inlet air hose: 13 mmAir consumption (idle): 0.5 m³/min.Air consumption (at load): 0.9 m³/min.
- Product type
Pneumatic straight grinder
1000 W
- Recess diameter
6 mm
- Length
263 mm
- Idle speed
12000 U/min
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632081 PFERD TOOLS PGAS 10/120 HV 80101061 Pneumatic straight grinder 1000 W
User & Safety Instructions
User & Safety Instructions 2632081 PFERD TOOLS PGAS 10/120 HV 80101061 Pneumatic straight grinder 1000 W
Description
The drive is equipped with a collet chuck tool holder for shank tools. The air outlet duct of the compressed air drive is located at the rear. The compressed air drive must be used with oil. The drive is equipped with a dead man circuit through the lever valve. The built-in centrifugal regulator ensures a constant pulling power. 1 m from and 2.5 m supply air hose with 1/2" external thread connection, 6 mm collet chuck, 2 clamping keys. Powerful drive in compact design.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2x clamping key
- 1x collet chuck 6 mm
- 1 m from and 2.5 m supply air hose
