PFERD TOOLS PGAS 10/160 V-HV 80101050 Pneumatic straight grinder 1000 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

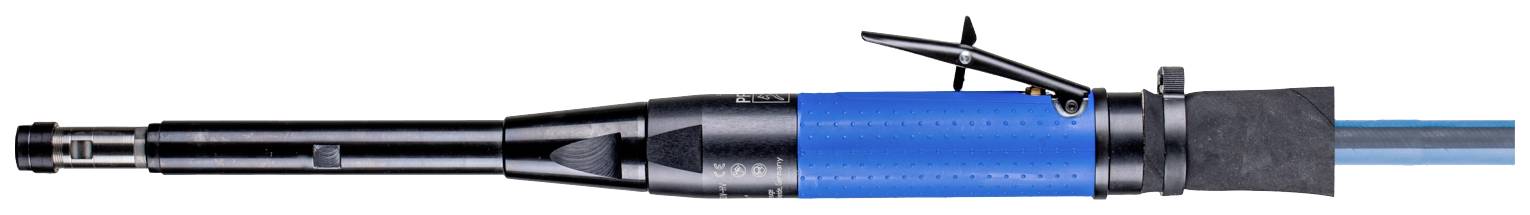

Pneumatic straight grinder 10/160 V-HV upgrade
- No dust swirling on the workpiece sideIdeal for the recommended shank tools thanks to the collet chuck mountSafe working with dead man's circuitIdeal for use in awkward spaces
Technical specifications
- Exhaust air outlet: RearSpeed 16000 RPMCollet Ø 6 mmHeight: 46 mmInner-Ø Supply hose: 13 mmAir consumption (idle): 0.7 m³/min.Air consumption (with load): 0.9 m³/min.
- Product type
Pneumatic straight grinder
1000 W
- Length
503 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2626827 PFERD TOOLS PGAS 10/160 V-HV 80101050 Pneumatic straight grinder 1000 W
User & Safety Instructions
User & Safety Instructions 2626827 PFERD TOOLS PGAS 10/160 V-HV 80101050 Pneumatic straight grinder 1000 W
Description
The drive is equipped with a collet chuck tool mount for shank tools. The air outlet duct from the compressed air drive is located at the rear. The compressed air drive must be used with oil. Through the lever valve, the drive has a dead man gear. The built-in centrifugal control ensures a constant traction power. 1 m and 2.5 m air supply hose with 1/2" external thread connection, chuck 6 mm, 2 clamping wrench. Through its extended design the drive is optimally suitable for working in hard to reach places.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2x box wrench
- 1x collet 6 mm
- 1 m AB and 2.5 m air hose
