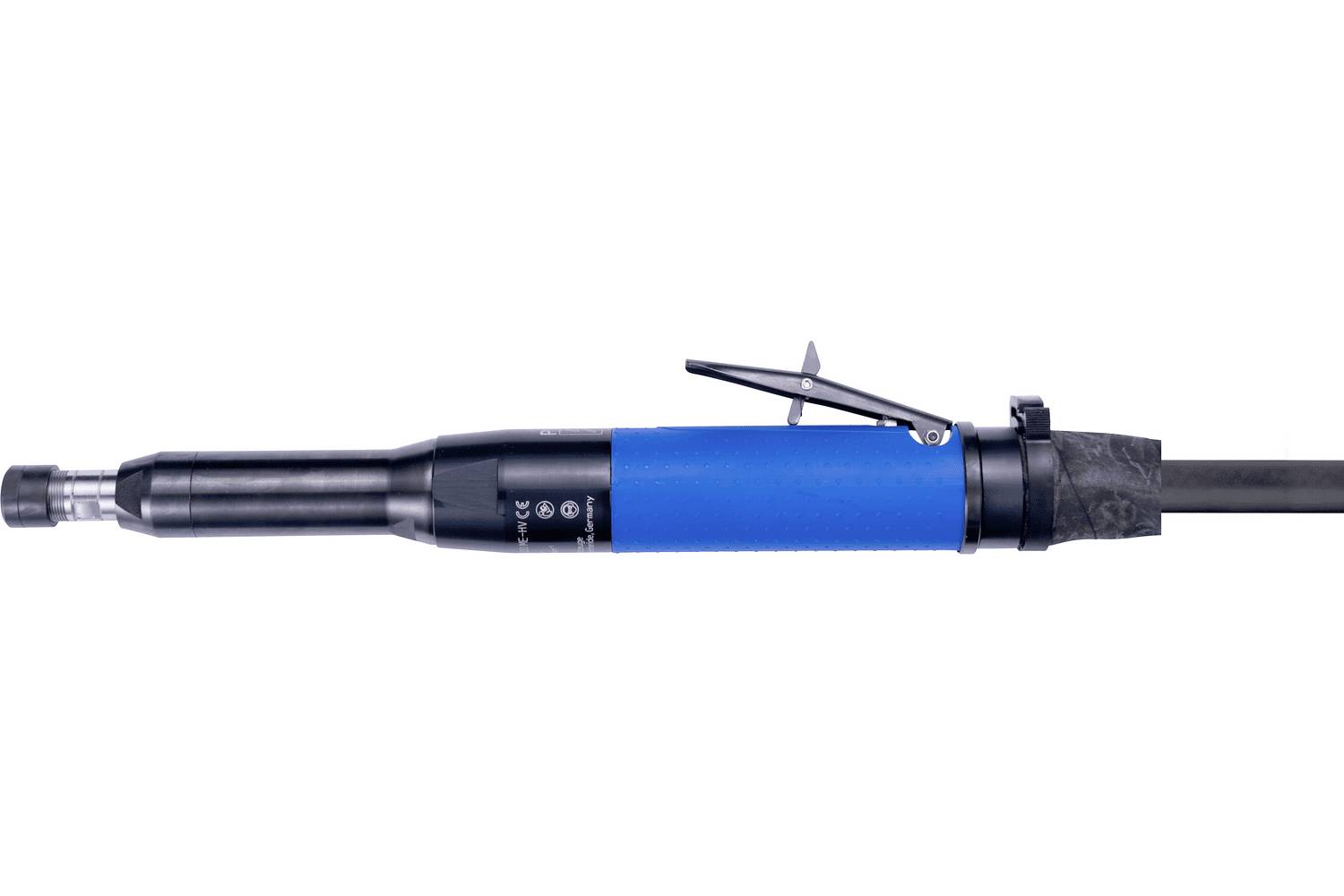

PFERD TOOLS PGAS 10/200 ME-HV Pneumatic straight grinder
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS compressed air straight grinder PGAS 10/200 ME-HV 20,000 RPM/1,000 Watt
- Power: 1000 watts
- Speed 20000 RPM
- Collet Group: 16
- Valve version: Lever
- Design: With medium-length extension and elastic storage
Technical specifications
- Operating pressure 6.3 bar
- PFERD TOOLS type PGAS 10/200 ME-HV
- Power: 1000 watts
- Speed 20000 RPM
- Collet Group: 16
- Valve version: Lever
- Design: With medium-length extension and elastic storage
- Metric width 46 mm
- Air consumption, idle: 1.38 m³/min.
- Air consumption, at load: 1.1 m³/min.
- With 6 bits. Ø Collet [mm]: 6 mm
- Length metric 383 mm
- Number of oil drops [min]: 7 pieces
- Net weight: 1,307 kg
- Inner-ø Supply hose: 13 mm
- Exhaust air outlet: Rear
- Height: 46 mm
- Product type
Pneumatic straight grinder
- Rotational speed (max.)
20000 U/min
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3772994 PFERD TOOLS PGAS 10/200 ME-HV Pneumatic straight grinder
Description
The drive is equipped with a collet chuck tool mount for shank tools. The air outlet of the compressed air drive is located at the rear. The compressed air drive must be used with oil. Through the lever valve, the drive has a dead man gear. 1 m and 2.5 m air hose with threaded connection 1/2" external, SPZ size 16 6 mm, 2 wrench (1x EM size 17 mm, 1x DM size 20/22 mm ).
This text is machine translated.
This text is machine translated.
Features
- Powerful drive for heavy use.
- Medium-length design for use in restricted accessibility.
- The elastic mounted spindle ensures low-vibration operation.
- No dust swirling on the workpiece side.
- Safe working with dead man's circuit.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure.
