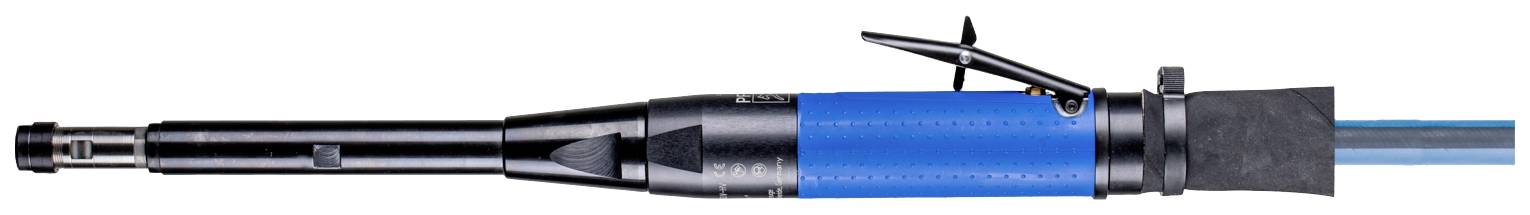

PFERD TOOLS PGAS 10/200 V-HV 80101045 Pneumatic straight grinder 1000 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Compressed air pneumatic wheel grinder upgrade
- No dust on the workpiece sideThanks to the collet chuck holder, it is optimally suitable for the recommended shank toolsSafe working by dead man switchingIdeal for use in hard to reach places
Technical specifications
- Exhaust outlet: RearSpeed: 20000 RPMCollet chuck Ø 6 mmHeight: 46 mmInner Ø Inlet air hose: 13 mmAir consumption (idling): 1.38 m³/min.Air consumption (under load): 1.1 m³/min.
- Product type
Pneumatic straight grinder
1000 W
- Recess diameter
6 mm
- Length
503 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632077 PFERD TOOLS PGAS 10/200 V-HV 80101045 Pneumatic straight grinder 1000 W
User & Safety Instructions
User & Safety Instructions 2632077 PFERD TOOLS PGAS 10/200 V-HV 80101045 Pneumatic straight grinder 1000 W
Description
The drive is equipped with a collet chuck tool holder for shank tools. The air outlet duct of the compressed air drive is located at the rear. The compressed air drive must be used with oil. The drive is equipped with a dead man circuit through the lever valve. 1 m from and 2.5 m supply air hose with 1/2" external thread connection, 6 mm collet chuck, 2 clamping keys. Due to its extended design, the drive is optimally suitable for working in difficult accessible places.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2x clamping key
- 1x collet chuck 6 mm
- 1 m from and 2.5 m supply air hose
