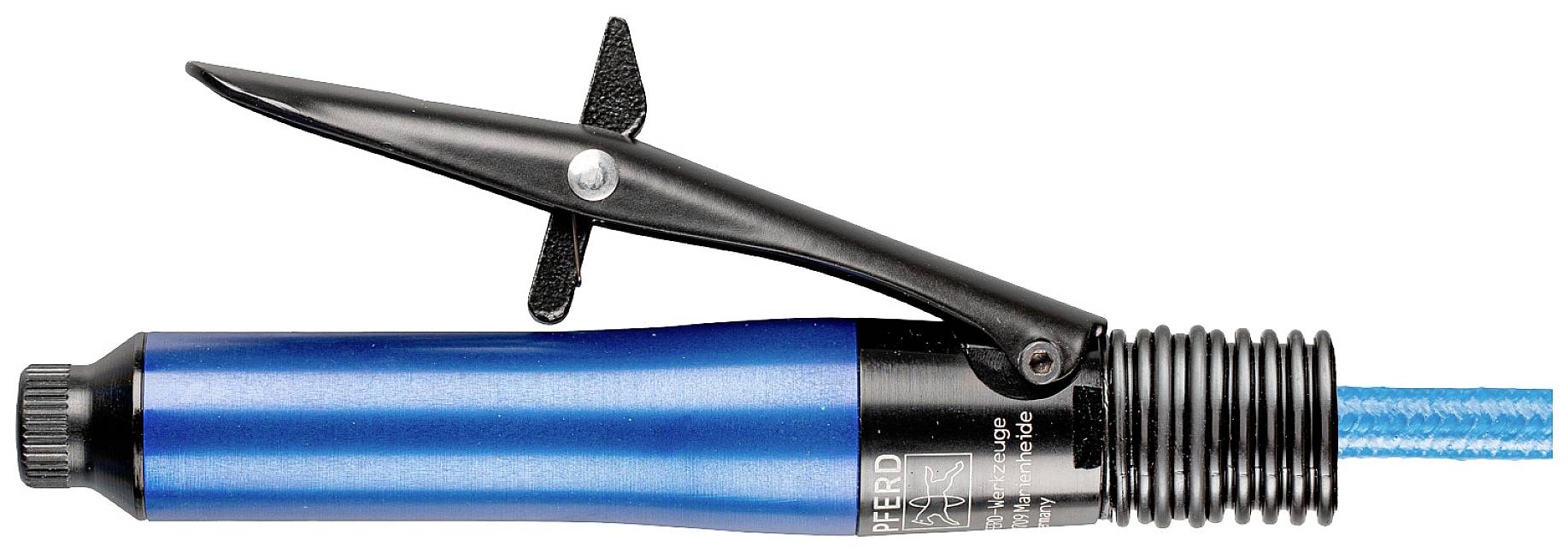

PFERD TOOLS PGAS 2/800 E-HV 80105022 Pneumatic straight grinder 110 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Compressed air pneumatic wheel grinder
- No dust on the workpiece sideThanks to the collet chuck holder, it is optimally suitable for the recommended shank toolsDue to the high speed, the drive has a high cutting speed for carbide milling pins and grinding pinsRemoving the spindle protective sleeve makes it easier to reach tighter and difficult-to-access working areasSafe working by dead man switchingEasy to guide thanks to its slim and light designThe elastically supported spindle provides for low vibration work
Technical specifications
- Exhaust outlet: RearSpeed: 80000 RPMCollet chuck Ø: 3 mmHeight: 23 mmInner Ø Supply air hose 4.8 mmAir consumption (idle): 0.27 m³/min.Air consumption (at load): 0.26 m³/min.
- Product type
Pneumatic straight grinder
110 W
- Recess diameter
3 mm
- Length
145 mm
- Idle speed
80000 U/min
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632083 PFERD TOOLS PGAS 2/800 E-HV 80105022 Pneumatic straight grinder 110 W
User & Safety Instructions
User & Safety Instructions 2632083 PFERD TOOLS PGAS 2/800 E-HV 80105022 Pneumatic straight grinder 110 W
Description
The drive is equipped with a collet chuck tool holder for shank tools. The air outlet duct of the compressed air drive is located at the rear. The light and handy compressed air drive is characterized by a high speed. It has a removable spindle protection sleeve. The drive must only be used with oil. 0.75 m starting and 1.5 m supply air hose with thread connection 1/4" outside and plug-in socket with thread (STGI), collet chuck 3 mm, 2 clamping keys. The drive is equipped with a dead man circuit through the lever valve.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2x clamping key
- 1x collet chuck 3 mm
- 0.75 m from and 1.5 m supply air hose
