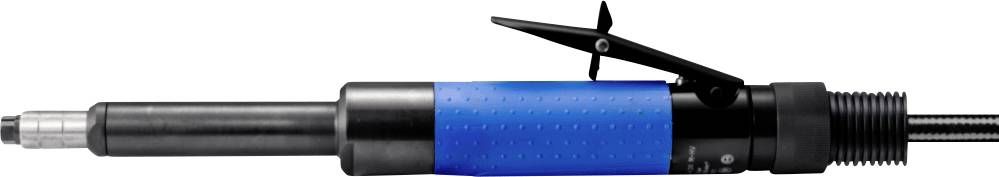

PFERD TOOLS PGAS 3/35 M-HV Pneumatic straight grinder 6.3 bar
EAN:
Part number:
Item no:
Highlights & Details
PFERD compressed air straight grinder PGAS 3/35 M-HV 3,500 RPM/320 Watt
- - Operating pressure: 6.3 bar
- - Power: 320 watts
- - Speed: 3500 RPM
- - Clamp clamp group: 6
- - Valve version: Lever
- - Design: With medium length extension
- - Metric width: 39 mm
- - Air consumption, idle: 0.6 m³/min.
- - Air consumption, with load: 0.5 m³/min.
- - Incl. Ø Collet [mm]: 6 mm
- - Length metric: 335 mm
- - Number of oil drops [min]: 3 drops
- - Net weight: 1,198 kg
- - Inner ø supply hose: 8 mm
- - Exhaust air outlet: Rear
- - Height: 39 mm
Technical specifications
- Design: With medium-length extension
- Product type
Pneumatic straight grinder
- Air consumption
0.6 m³/min
- Max. operating pressure
6.3 bar
- Rotational speed (max.)
3500 U/min
- Weight
1.198 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374808 PFERD TOOLS PGAS 3/35 M-HV Pneumatic straight grinder 6.3 bar
Description
The drive is equipped with a collet chuck tool mount for shank tools. The air outlet duct from the compressed air drive is located at the rear. Due to the planetary gear, the compressed air drive has a high torque. 1 m and 2.5 m air supply hose with 1/4" external thread connection and plug-in socket with thread (STGI), chuck 6 mm, 2 wrench. The compact and handy compressed air drive can only be used with oil.
Technical data
- Operating pressure: 6.3 bar
- Power: 320 watts
- Speed: 3500 RPM
- Clamp clamp group: 6
- Valve version: Lever
- Design: With medium length extension
- Metric width: 39 mm
- Air consumption, idle: 0.6 m³/min.
- Air consumption, with load: 0.5 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 335 mm
- Number of oil drops [min]: 3 drops
- Net weight: 1,198 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 39 mm
Benefits:
- Due to its medium-length design, the drive is ideally suited for use in restricted accessibility.
- No dust swirling on the workpiece side.
- Safe working by dead man connection.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Technical data
- Operating pressure: 6.3 bar
- Power: 320 watts
- Speed: 3500 RPM
- Clamp clamp group: 6
- Valve version: Lever
- Design: With medium length extension
- Metric width: 39 mm
- Air consumption, idle: 0.6 m³/min.
- Air consumption, with load: 0.5 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 335 mm
- Number of oil drops [min]: 3 drops
- Net weight: 1,198 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 39 mm
Benefits:
- Due to its medium-length design, the drive is ideally suited for use in restricted accessibility.
- No dust swirling on the workpiece side.
- Safe working by dead man connection.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Features
- Through its medium-length design the drive is best suitable for use in restricted accessibility
- No dust swirling on the workpiece side
- Safe working with dead man's circuit.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure.
