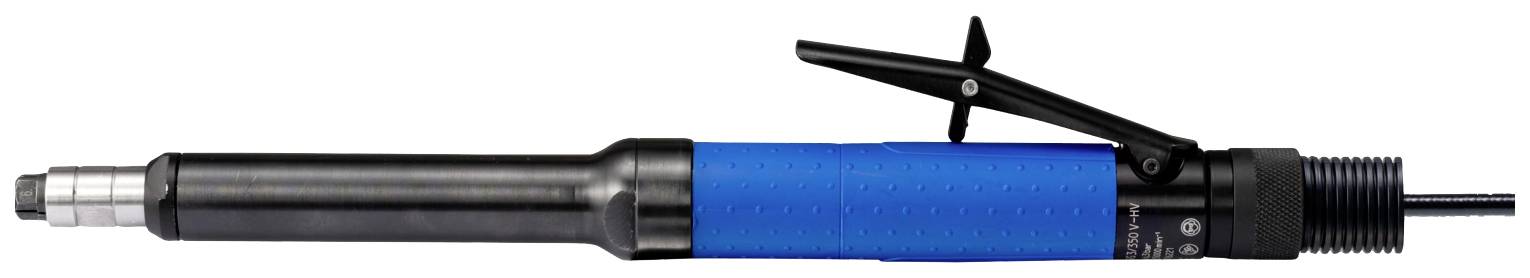

PFERD TOOLS PGAS 3-350 V-HV 80105155 Pneumatic straight grinder 290 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Compressed air pneumatic wheel grinder
- No dust on the workpiece sideThanks to the collet chuck holder, it is optimally suitable for the recommended shank toolsThe compact design enables easy accessibilitySafe working by dead man switchingThe elastically supported spindle provides for low vibration workThe compact design enables easy accessibility
Technical specifications
- Exhaust outlet: RearSpeed: 35000 RPMCollet chuck Ø 6 mmHeight: 30 mmInner-Ø Supply air hose: 6 mmAir consumption (idling): 0.6 m³/min.Air consumption (at load): 0.5 m³/min.
- Product type
Pneumatic straight grinder
- Features
incl. accessories
290 W
- Recess diameter
6 mm
- Length
335 mm
- Idle speed
35000 RPM U/min
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632085 PFERD TOOLS PGAS 3-350 V-HV 80105155 Pneumatic straight grinder 290 W
User & Safety Instructions
User & Safety Instructions 2632085 PFERD TOOLS PGAS 3-350 V-HV 80105155 Pneumatic straight grinder 290 W
Description
The drive is equipped with a collet chuck tool holder for shank tools. The air outlet duct of the compressed air drive is located at the rear. The powerful compressed air drive in extended design is characterized by its compact design. It must be used with oil. 1 m from and 2.5 m supply air hose with 1/4" external thread connection and plug-in socket with thread (STGI), collet chuck 6 mm, 2 clamping keys. The drive is equipped with a dead man circuit through the lever valve.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2x clamping key
- 1x collet chuck 6 mm
- 1 m from and 2.5 m supply air hose
