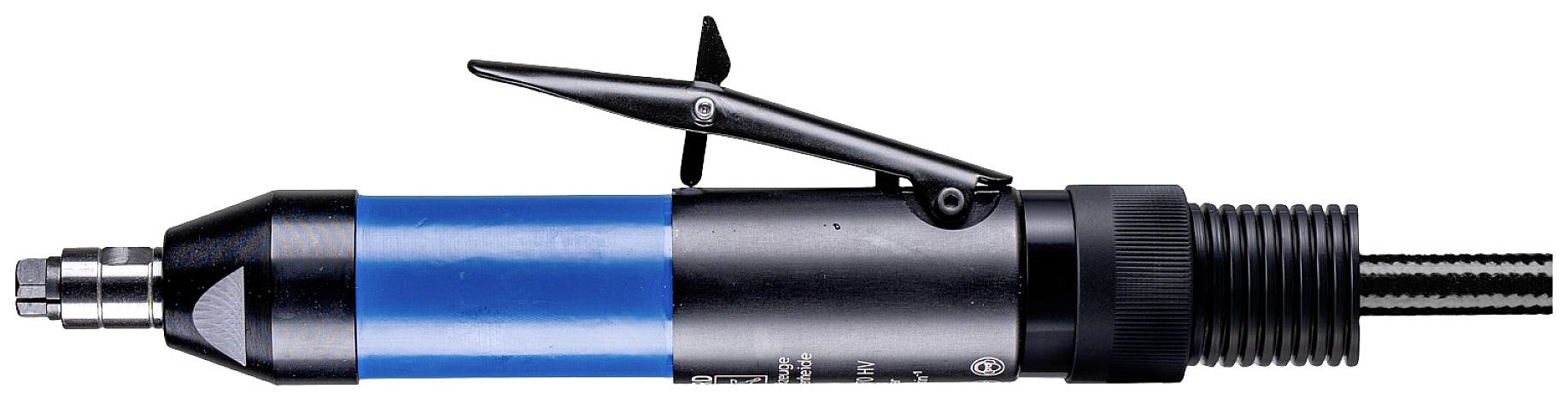

PFERD TOOLS PGAS 3/70 HV 80106050 Pneumatic straight grinder 320 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Compressed air pneumatic wheel grinder
- No dust on the workpiece sideThanks to the collet chuck holder, it is optimally suitable for the recommended shank toolsSafe working by dead man switching
Technical specifications
- Exhaust outlet: RearSpeed 7000 RPMCollet chuck Ø 6 mmHeight: 38 mmInternal Ø Supply air hose 8 mmAir consumption (idling): 0.6 m³/min.Air consumption (at load): 0.5 m³/min.
- Product type
Pneumatic straight grinder
320 W
- Length
224 mm
- Idle speed
7000 U/min
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632096 PFERD TOOLS PGAS 3/70 HV 80106050 Pneumatic straight grinder 320 W
User & Safety Instructions
User & Safety Instructions 2632096 PFERD TOOLS PGAS 3/70 HV 80106050 Pneumatic straight grinder 320 W
Description
The drive is equipped with a collet chuck tool holder for shank tools. The air outlet duct of the compressed air drive is located at the rear. The compact and handy compressed air drive may only be used with oil. Due to the planetary gear, it has a high torque. 1 m from and 2.5 m supply air hose with 1/4" external thread connection and plug-in socket with thread (STGI), collet chuck 6 mm, 2 clamping keys.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2x clamping key
- 1x collet chuck 6 mm
- 1 m from and 2.5 m supply air hose
