Buy PFERD TOOLS PGAS 4/190 M-HV Pneumatic straight grinder

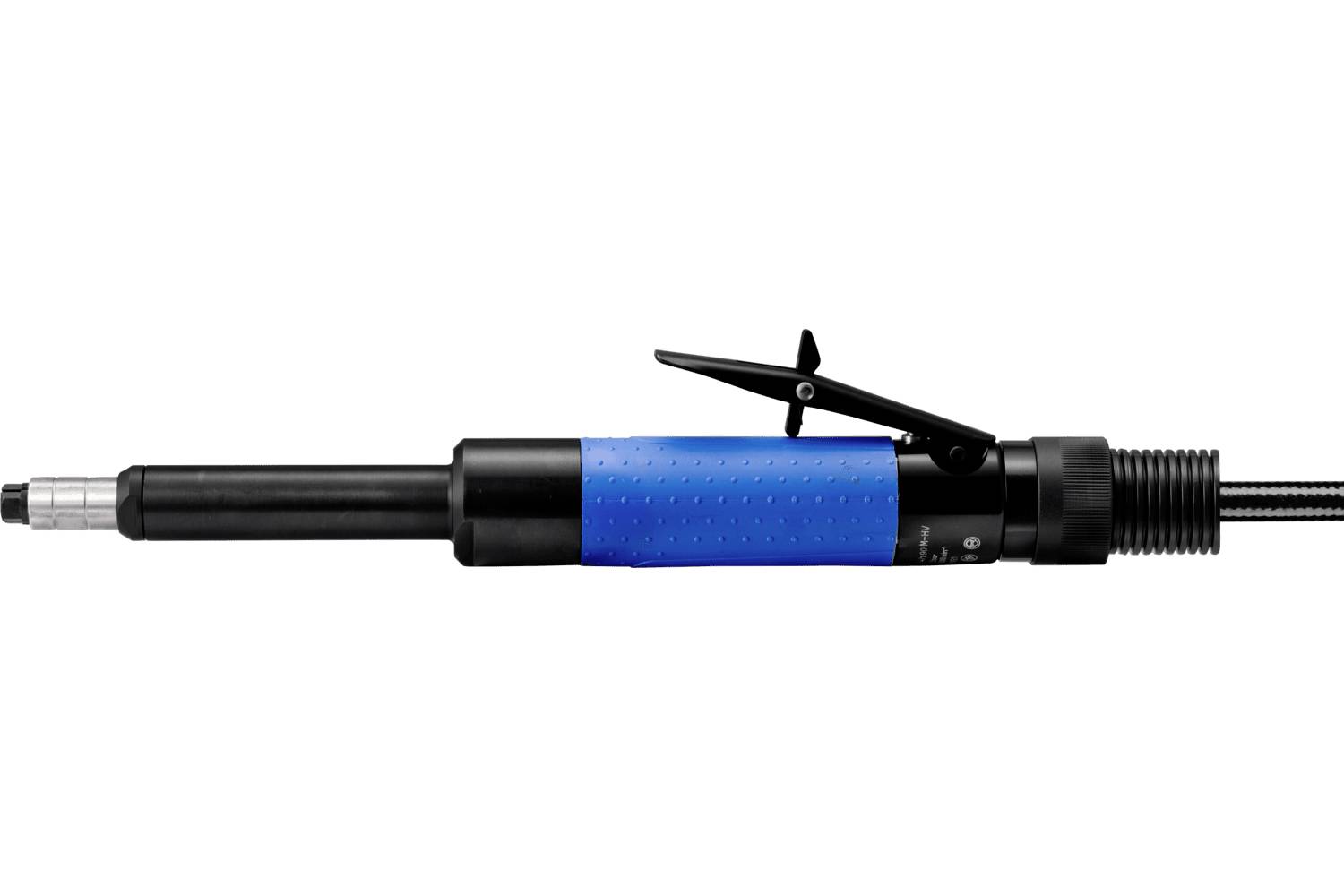

Handheld pneumatic tool with a black body and blue grip, shown side view against a white background.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PFERD TOOLS compressed air straight grinder PGAS 4/190 M-HV 19,000 RPM/370 Watt

Power: 370 watts
Speed 19000 RPM
Collet Group: 6
Valve version: Lever
Design: With medium-length extension and elastic storage

Technical specifications

Operating pressure 6.3 bar
PFERD TOOLS type PGAS 4/190 M-HV
Power: 370 watts
Speed 19000 RPM
Collet Group: 6
Valve version: Lever
Design: With medium-length extension and elastic storage
Metric width 39 mm
Air consumption, idle: 0.78 m³/min.
Air consumption, at load: 0.72 m³/min.
With 6 bits. Ø Collet [mm]: 6 mm
Length metric 335 mm
Number of oil drops [min]: 4 drops
Net weight: 1,198 kg
Inner-ø Supply hose: 8 mm
Exhaust air outlet: Rear
Height: 39 mm

Product type: Pneumatic straight grinder

Rotational speed (max.): 19000 U/min

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3772995 PFERD TOOLS PGAS 4/190 M-HV Pneumatic straight grinder

Description

The drive is equipped with a collet chuck tool mount for shank tools. The air outlet of the compressed air drive is located at the rear. The compressed air drive must only be used with oil. Through its medium-length design the drive is best suitable for use in restricted accessibility. 1 m and 2.5 m air supply hose with 1/4" thread and plug-in socket with thread (STGI), SPZ size.6 6 mm, 2 mm spanner ( 1x EM SW 11 mm, 1x EM SW 14 mm ).

Application recommendations:
- The drive can also be operated without oil, but this results in reduced service life as well as reduced speed and power.

This text is machine translated.
