Buy PFERD TOOLS PGAS 4/250 M-HV Pneumatic straight grinder

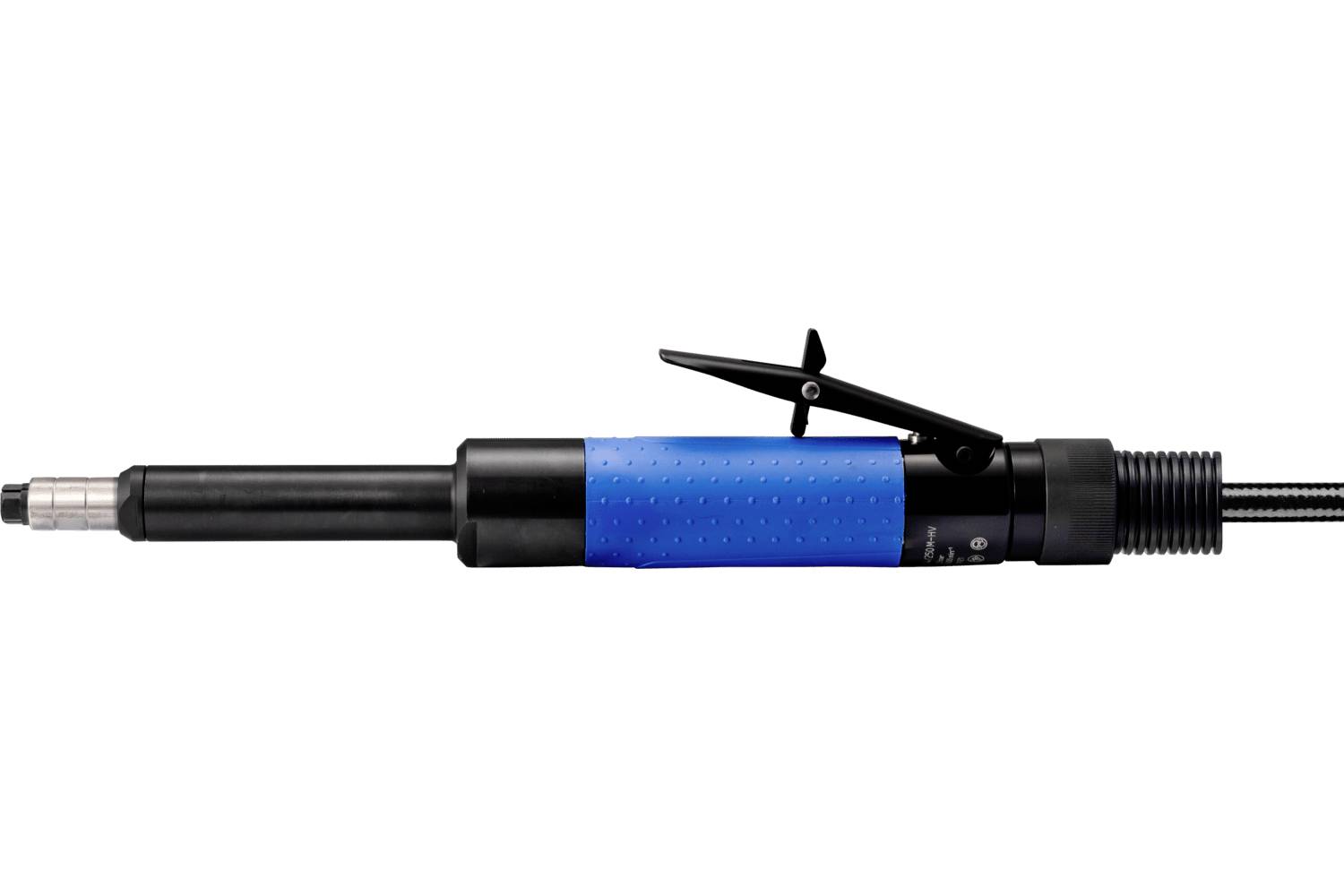

Black and blue industrial pen-like tool with a side lever, shown horizontally on a white background.

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

PFERD TOOLS compressed air straight grinder PGAS 4/250 M-HV 25.000 RPM/0.59 HP

Power: 440 watts
Speed 25000 RPM
Collet Group: 6
Valve version: Lever
Design: With medium-length extension and elastic storage

Technical specifications

Operating pressure 6.3 bar
PFERD TOOLS type PGAS 4/250 M-HV
Power: 440 watts
Speed 25000 RPM
Collet Group: 6
Valve version: Lever
Design: With medium-length extension and elastic storage
Metric width 39 mm
Air consumption, idle: 0.98 m³/min.
Air consumption, at load: 0.87 m³/min.
With 6 bits. Ø Collet [mm]: 6 mm
Length metric 335 mm
Number of oil drops [min]: 4 drops
Net weight: 1,198 kg
Inner-ø Supply hose: 8 mm
Exhaust air outlet: Rear
Height: 39 mm

Product type: Pneumatic straight grinder

Rotational speed (max.): 25000 U/min

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3772996 PFERD TOOLS PGAS 4/250 M-HV Pneumatic straight grinder

Description

The drive is equipped with a collet chuck tool mount for shank tools. The air outlet of the compressed air drive is located at the rear. Through the lever valve, the drive has a dead man gear. Through its medium-length design the drive is best suitable for use in restricted accessibility. 1 m and 2.5 m air supply hose with 1/4" thread and plug-in socket with thread (STGI), SPZ size.6 6 mm, 2 mm spanner ( 1x EM SW 11 mm, 1x EM SW 14 mm ).

Application recommendations:
- The drive can also be operated without oil, but this results in reduced service life as well as reduced speed and power.

This text is machine translated.
