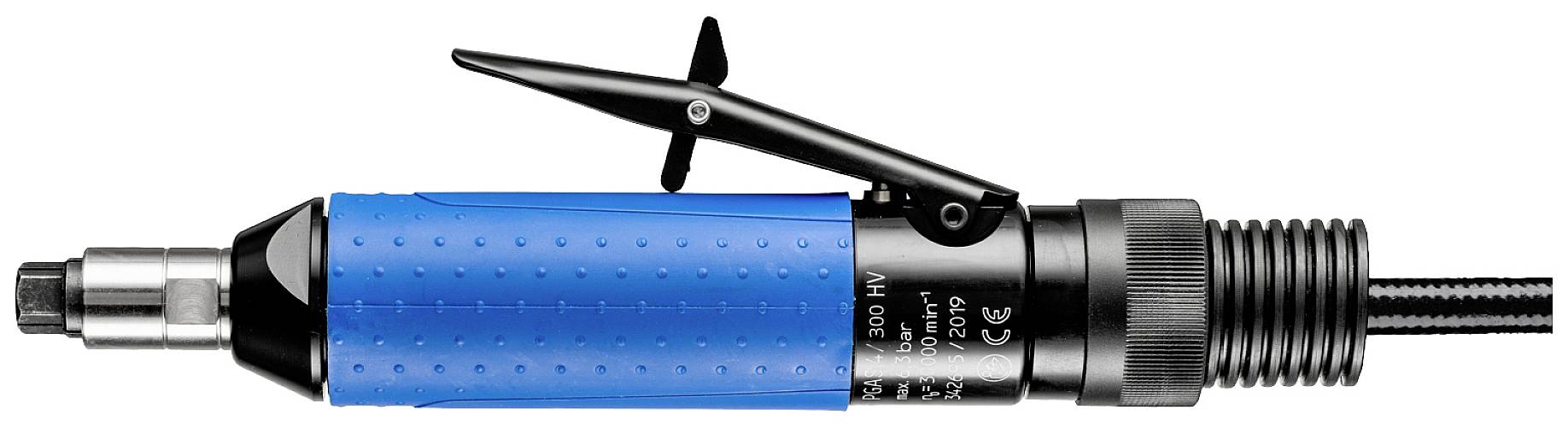

PFERD TOOLS PGAS 4/300 HV 80106021 Pneumatic straight grinder 440 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Compressed air pneumatic wheel grinder
- No dust on the workpiece sideThanks to the collet chuck holder, it is optimally suitable for the recommended shank toolsSafe working by dead man switchingEasy to run at medium power
Technical specifications
- Exhaust outlet: RearSpeed: 30000 RPMCollet chuck Ø 6 mmHeight: 39 mmInternal Ø Supply air hose 8 mmAir consumption (idling): 0.88 m³/min.Air consumption (at load): 0.84 m³/min.
- Product type
Pneumatic straight grinder
440 W
- Recess diameter
6 mm
- Length
245 mm
- Idle speed
30000 U/min
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2632092 PFERD TOOLS PGAS 4/300 HV 80106021 Pneumatic straight grinder 440 W
User & Safety Instructions
User & Safety Instructions 2632092 PFERD TOOLS PGAS 4/300 HV 80106021 Pneumatic straight grinder 440 W
Description
The drive is equipped with a collet chuck tool holder for shank tools. The air outlet duct of the compressed air drive is located at the rear. The compressed air drive must be used with oil. The drive is equipped with a dead man circuit through the lever valve. Powerful drive in compact design. 1 m from and 2.5 m supply air hose with 1/4" external thread connection and plug-in socket with thread (STGI), collet chuck 6 mm, 2 clamping keys.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 2x clamping key
- 1x collet chuck 6 mm
- 1 m from and 2.5 m supply air hose
