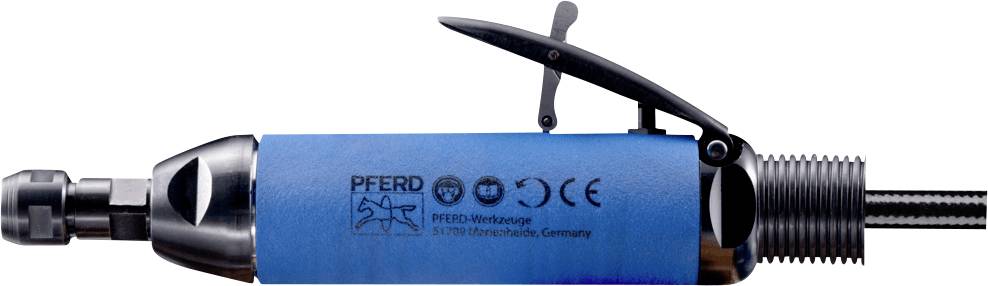

PFERD TOOLS PGAS 6/120 HV Pneumatic straight grinder 6.3 bar
EAN:
Part number:
Item no:
Highlights & Details
PFERD compressed air straight grinder PGAS 6/120 HV 12,000 RPM/650 Watt
- - Operating pressure: 6.3 bar
- - Power: 650 watts
- - Speed: 12000 RPM
- - Clamp clamp group: 7
- - Valve version: Lever
- - Design: Without extension
- - Metric width: 41 mm
- - Air consumption, idle: 0.22 cfm
- - Air consumption, with load: 0.71 m³/min.
- - Incl. Ø Collet [mm]: 6 mm
- - Length metric: 218 mm
- - Number of oil drops [min]: 6 pieces
- - Net weight: 0.75 kg
- - Inner ø supply hose: 8 mm
- - Exhaust air outlet: Rear
- - Height: 41 mm
Technical specifications
- Design: Without extension
- Product type
Pneumatic straight grinder
- Tool holder
Collets
- Air consumption
0.71 m³/min
- Max. operating pressure
6.3 bar
- Operation pressure
6.3 bar
- Rotational speed (max.)
12000 U/min
- Weight
0.75 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374811 PFERD TOOLS PGAS 6/120 HV Pneumatic straight grinder 6.3 bar
Description
The drive is equipped with a collet chuck tool mount for shank tools. The air outlet duct from the compressed air drive is located at the rear. The powerful drive has a built-in centrifugal control. The lever valve also allows the drive to have a dead man circuit. The compressed air drive must be used with oil. 1 m and 2 m air supply hose with 1/4" external thread connection and plug-in socket with thread (STGI), chuck 6 mm, 2 wrench.
Technical data
- Operating pressure: 6.3 bar
- Power: 650 watts
- Speed: 12000 RPM
- Clamp clamp group: 7
- Valve version: Lever
- Design: Without extension
- Metric width: 41 mm
- Air consumption, idle: 0.22 cfm
- Air consumption, with load: 0.71 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 218 mm
- Number of oil drops [min]: 6 pieces
- Net weight: 0.75 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 41 mm
Benefits:
- Compact design.
- No dust swirling on the workpiece side.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Technical data
- Operating pressure: 6.3 bar
- Power: 650 watts
- Speed: 12000 RPM
- Clamp clamp group: 7
- Valve version: Lever
- Design: Without extension
- Metric width: 41 mm
- Air consumption, idle: 0.22 cfm
- Air consumption, with load: 0.71 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 218 mm
- Number of oil drops [min]: 6 pieces
- Net weight: 0.75 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 41 mm
Benefits:
- Compact design.
- No dust swirling on the workpiece side.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Features
- Compact design
- No dust swirling on the workpiece side.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure.
