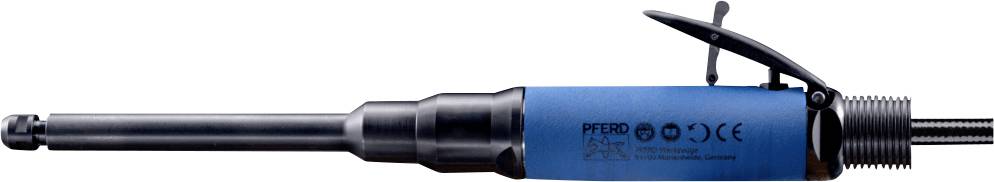

PFERD TOOLS PGAS 6/160 V-HV Pneumatic straight grinder 6.3 bar
EAN:
Part number:
Item no:
Highlights & Details
PFERD compressed air straight grinder PGAS 6/160 V-HV 16,000 RPM/650 Watt
- - Operating pressure: 6.3 bar
- - Power: 650 watts
- - Speed: 16000 RPM
- - Clamp clamp group: 7
- - Valve version: Lever
- - Design: Without extension
- - Metric width: 41 mm
- - Air consumption, idle: 0.39 m³/min.
- - Air consumption, with load: 0.71 m³/min.
- - Incl. Ø Collet [mm]: 6 mm
- - Length metric: 380 mm
- - Number of oil drops [min]: 6 pieces
- - Net weight: 1,091 kg
- - Inner ø supply hose: 8 mm
- - Exhaust air outlet: Rear
- - Height: 41 mm
Technical specifications
- Design: Without extension
- Product type
Pneumatic straight grinder
- Air consumption
0.39 m³/min
- Max. operating pressure
6.3 bar
- Rotational speed (max.)
16000 U/min
- Weight
1.091 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374823 PFERD TOOLS PGAS 6/160 V-HV Pneumatic straight grinder 6.3 bar
Description
The drive is equipped with a collet chuck tool mount for shank tools. The air outlet duct from the compressed air drive is located at the rear. The handy compressed air drive must be operated with oil. 2 m air supply hose with 1/4" thread connection and plug-in socket with thread (STGI), chuck 6 mm, 2 wrench.
Technical data
- Operating pressure: 6.3 bar
- Power: 650 watts
- Speed: 16000 RPM
- Clamp clamp group: 7
- Valve version: Lever
- Design: Without extension
- Metric width: 41 mm
- Air consumption, idle: 0.39 m³/min.
- Air consumption, with load: 0.71 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 380 mm
- Number of oil drops [min]: 6 pieces
- Net weight: 1,091 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 41 mm
Benefits:
- Extended design, making it ideal for working in hard to reach places.
- No dust swirling on the workpiece side.
- Safe working by dead man connection.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Technical data
- Operating pressure: 6.3 bar
- Power: 650 watts
- Speed: 16000 RPM
- Clamp clamp group: 7
- Valve version: Lever
- Design: Without extension
- Metric width: 41 mm
- Air consumption, idle: 0.39 m³/min.
- Air consumption, with load: 0.71 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 380 mm
- Number of oil drops [min]: 6 pieces
- Net weight: 1,091 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 41 mm
Benefits:
- Extended design, making it ideal for working in hard to reach places.
- No dust swirling on the workpiece side.
- Safe working by dead man connection.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Features
- Extended design, thereby optimally suitable for working in hard to reach places
- No dust swirling on the workpiece side
- Safe working with dead man's circuit.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure.
