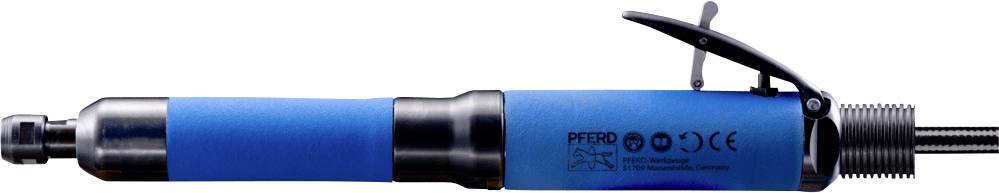

PFERD TOOLS PGAS 6/250 VB-HV Pneumatic straight grinder 6.3 bar
EAN:
Part number:
Item no:
Highlights & Details
PFERD compressed air straight grinder PGAS 6/250 VB-HV 25,000 RPM/650 Watt
- - Operating pressure: 6.3 bar
- - Power: 650 watts
- - Speed: 25000 RPM
- - Clamp clamp group: 7
- - Valve version: Lever
- - Design: Without extension
- - Metric width: 41 mm
- - Air consumption, idle: 0.95 m³/min.
- - Air consumption, with load: 0.71 m³/min.
- - Incl. Ø Collet [mm]: 6 mm
- - Length metric: 348 cm
- - Number of oil drops [min]: 6 pieces
- - Net weight: 1,316 kg
- - Inner ø supply hose: 8 mm
- - Exhaust air outlet: Rear
- - Height: 41 mm
Technical specifications
- Design: Without extension
- Product type
Pneumatic straight grinder
- Air consumption
0.95 m³/min
- Max. operating pressure
6.3 bar
- Rotational speed (max.)
25000 U/min
- Weight
1.316 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374816 PFERD TOOLS PGAS 6/250 VB-HV Pneumatic straight grinder 6.3 bar
Description
The drive is equipped with a collet chuck tool mount for shank tools. The air outlet duct from the compressed air drive is located at the rear. Technically sophisticated compressed air straight grinder with rear exhaust outlet and dead man circuit through safety lever valve. The compressed air drive must only be used with oil. 1 m and 2 m air supply hose with 1/4" external thread connection and plug-in socket with thread (STGI), chuck 6 mm, 2 wrench.
Technical data
- Operating pressure: 6.3 bar
- Power: 650 watts
- Speed: 25000 RPM
- Clamp clamp group: 7
- Valve version: Lever
- Design: Without extension
- Metric width: 41 mm
- Air consumption, idle: 0.95 m³/min.
- Air consumption, with load: 0.71 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 348 cm
- Number of oil drops [min]: 6 pieces
- Net weight: 1,316 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 41 mm
Benefits:
- Due to its wide extension design, the drive is ideal for working in hard to reach places.
- No dust swirling on the workpiece side.
- The built-in centrifugal control ensures a constant speed when used.
- Safe working by dead man connection.
- Easy to run at medium power.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Technical data
- Operating pressure: 6.3 bar
- Power: 650 watts
- Speed: 25000 RPM
- Clamp clamp group: 7
- Valve version: Lever
- Design: Without extension
- Metric width: 41 mm
- Air consumption, idle: 0.95 m³/min.
- Air consumption, with load: 0.71 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 348 cm
- Number of oil drops [min]: 6 pieces
- Net weight: 1,316 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 41 mm
Benefits:
- Due to its wide extension design, the drive is ideal for working in hard to reach places.
- No dust swirling on the workpiece side.
- The built-in centrifugal control ensures a constant speed when used.
- Safe working by dead man connection.
- Easy to run at medium power.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Features
- Through the design with broad extension the drive is optimally suitable for working in hard to reach places
- No dust swirling on the workpiece side
- A constant speed is ensured by the built-in centrifugal control
- Safe working with dead man's circuit
- Easy to run at average power.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure.
