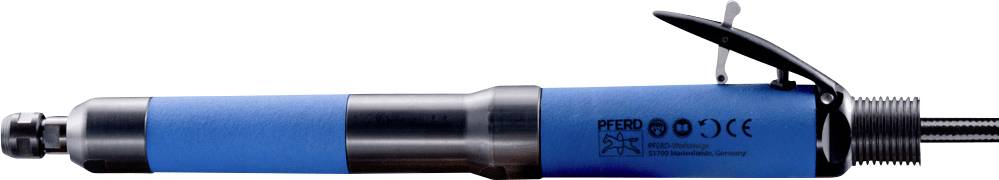

PFERD TOOLS PGAS 6/50 V-HV Pneumatic straight grinder 6.3 bar
EAN:
Part number:
Item no:
Highlights & Details
PFERD compressed air straight grinder PGAS 6/50 V-HV 5,000 RPM/650 Watt
- - Operating pressure: 6.3 bar
- - Power: 650 watts
- - Speed: 5000 RPM
- - Clamp clamp group: 7
- - Valve version: Lever
- - Design: Without extension
- - Metric width: 41 mm
- - Air consumption, idle: 0.95 cfm
- - Air consumption, with load: 0.71 m³/min.
- - Incl. Ø Collet [mm]: 6 mm
- - Length metric: 388 mm
- - Number of oil drops [min]: 6 pieces
- - Net weight: 2 kg
- - Inner ø supply hose: 8 mm
- - Exhaust air outlet: Rear
- - Height: 41 mm
Technical specifications
- Design: Without extension
- Product type
Pneumatic straight grinder
- Tool holder
Collets
- Air consumption
0.71 m³/min
- Max. operating pressure
6.3 bar
- Operation pressure
6.3 bar
- Rotational speed (max.)
5000 U/min
- Weight
2 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374809 PFERD TOOLS PGAS 6/50 V-HV Pneumatic straight grinder 6.3 bar
Description
The drive is equipped with a collet chuck tool mount for shank tools. The air outlet duct from the compressed air drive is located at the rear. The powerful drive is suitable for heavy duty use. It has a built-in centrifugal control. The lever valve also allows the drive to have a dead man circuit. The fixed speed compressed air drive must be used with oil.
Technical data
- Operating pressure: 6.3 bar
- Power: 650 watts
- Speed: 5000 RPM
- Clamp clamp group: 7
- Valve version: Lever
- Design: Without extension
- Metric width: 41 mm
- Air consumption, idle: 0.95 cfm
- Air consumption, with load: 0.71 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 388 mm
- Number of oil drops [min]: 6 pieces
- Net weight: 2 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 41 mm
Benefits:
- No dust swirling on the workpiece side.
- The built-in centrifugal control ensures a constant speed when used.
- The machine with wide extension is suitable for use in hard to reach places.
- Safe working by dead man connection.
- Robust machine for heavy duty use.
This text is machine translated.
Technical data
- Operating pressure: 6.3 bar
- Power: 650 watts
- Speed: 5000 RPM
- Clamp clamp group: 7
- Valve version: Lever
- Design: Without extension
- Metric width: 41 mm
- Air consumption, idle: 0.95 cfm
- Air consumption, with load: 0.71 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 388 mm
- Number of oil drops [min]: 6 pieces
- Net weight: 2 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Rear
- Height: 41 mm
Benefits:
- No dust swirling on the workpiece side.
- The built-in centrifugal control ensures a constant speed when used.
- The machine with wide extension is suitable for use in hard to reach places.
- Safe working by dead man connection.
- Robust machine for heavy duty use.
This text is machine translated.
Features
- No dust swirling on the workpiece side
- The built-in centrifugal control ensures a constant speed while working
- The machine with wide extension is suitable for use in hard to reach places
- Safe working with dead man connection
- Robust design machine for heavy duty use.
