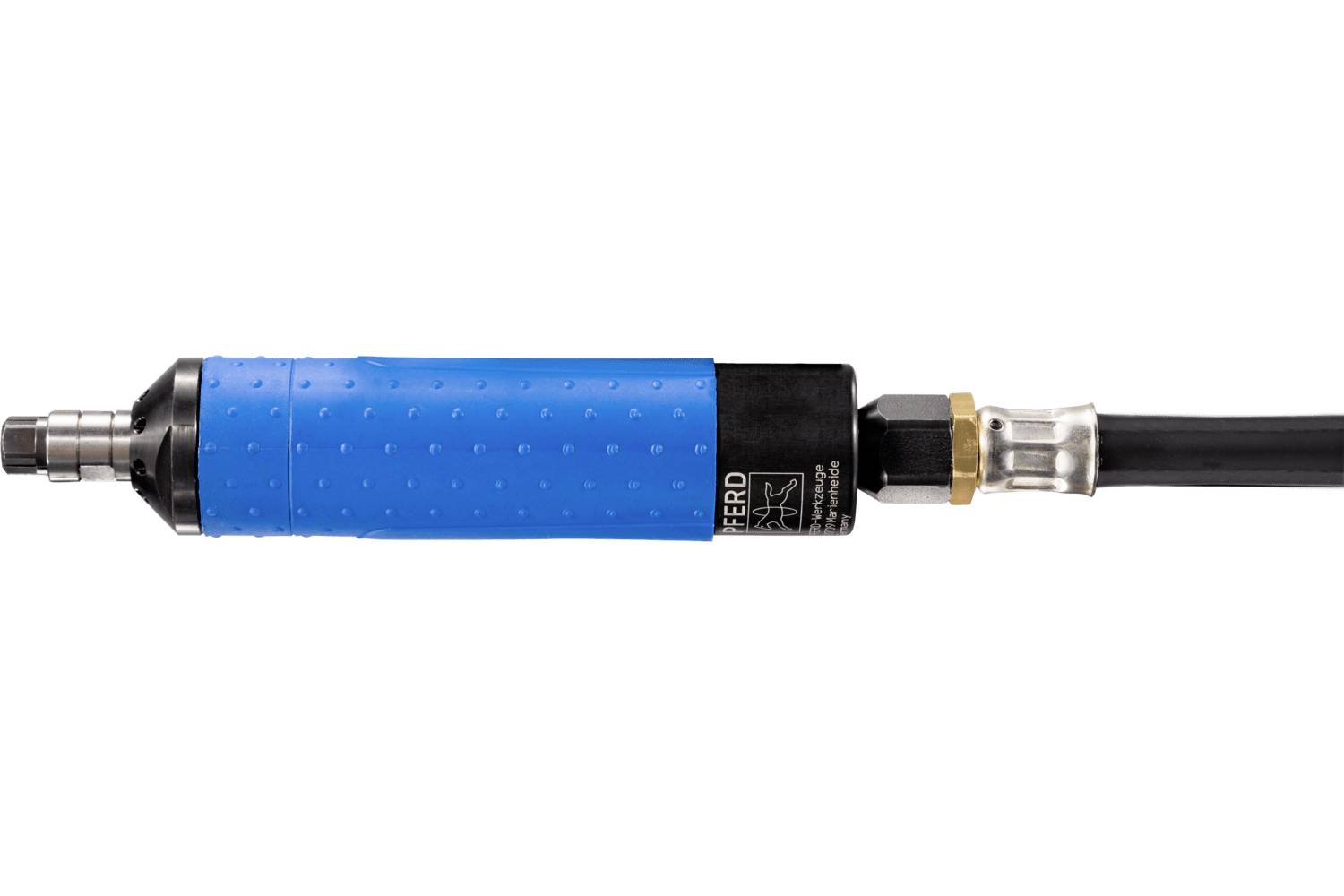

PFERD TOOLS PGS 3/300 DV Pneumatic straight grinder
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS compressed air straight grinder PGS 3/300 DV 30,000 RPM/240 W.
- Power: 240 watts
- Speed 30000 RPM
- Collet Group: 10
- Valve version: Turn
Technical specifications
- Operating pressure 6.3 bar
- PFERD TOOLS type PGS 3/300 DV
- Power: 240 watts
- Speed 30000 RPM
- Collet Group: 10
- Valve version: Turn
- Metric width 30 mm
- Air consumption, idle: 0.6 m³/min.
- Air consumption, at load: 0.5 m³/min.
- With 6 bits. Ø Collet [mm]: 6 mm
- Length metric 160 mm
- Number of oil drops [min]: 2 drops
- Net weight: 0,348 kg
- Inner-ø Supply hose: 8 mm
- Exhaust air outlet: Front
- Height: 30 mm
- Product type
Pneumatic straight grinder
- Rotational speed (max.)
30000 U/min
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3772999 PFERD TOOLS PGS 3/300 DV Pneumatic straight grinder
Description
The drive is equipped with a collet chuck tool mount for shank tools. The exhaust air outlet is at the front. The handy compressed air drive must be operated with oil. 2.5 m air supply hose with 1/4" external thread and plug-in socket with thread (STGI) , SPZ size.10 6 mm , 2 mm spanner (1x EM SW 9 mm, 1x EM SW 10 mm). The drive has a rotating valve version.
This text is machine translated.
This text is machine translated.
Features
- The drive is suitable as rotating valve version for longer use.
- Easy manageability thanks to the handy design.
- Through its exhaust outlet to the front, it can blow away the worn dirt from the front in employment.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure.
