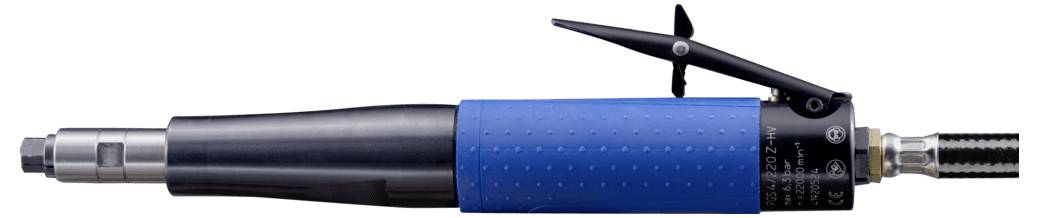

PFERD TOOLS PGS 4/220 Z-HV Pneumatic straight grinder 6.3 bar
EAN:
Part number:
Item no:
Highlights & Details
PFERD Compressed air straight grinder PGS 4/220 Z-HV 22,000 RPM/400 Watt
- - Operating pressure: 6.3 bar
- - Power: 400 watts
- - Speed: 22000 RPM
- - Clamp clamp group: 20
- - Valve version: Lever
- - Metric width: 39 mm
- - Air consumption, idle: 0.98 m³/min.
- - Air consumption, with load: 0.87 m³/min.
- - Incl. Ø Collet [mm]: 6 mm
- - Length metric: 320 mm
- - Number of oil drops [min]: 4 drops
- - Net weight: 1.17 kg
- - Inner ø supply hose: 8 mm
- - Exhaust air outlet: Front
- - Height: 39 mm
Technical specifications
- Product type
Pneumatic straight grinder
- Air consumption
0.98 m³/min
- Max. operating pressure
6.3 bar
- Rotational speed (max.)
22000 U/min
- Weight
1.17 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374819 PFERD TOOLS PGS 4/220 Z-HV Pneumatic straight grinder 6.3 bar
Description

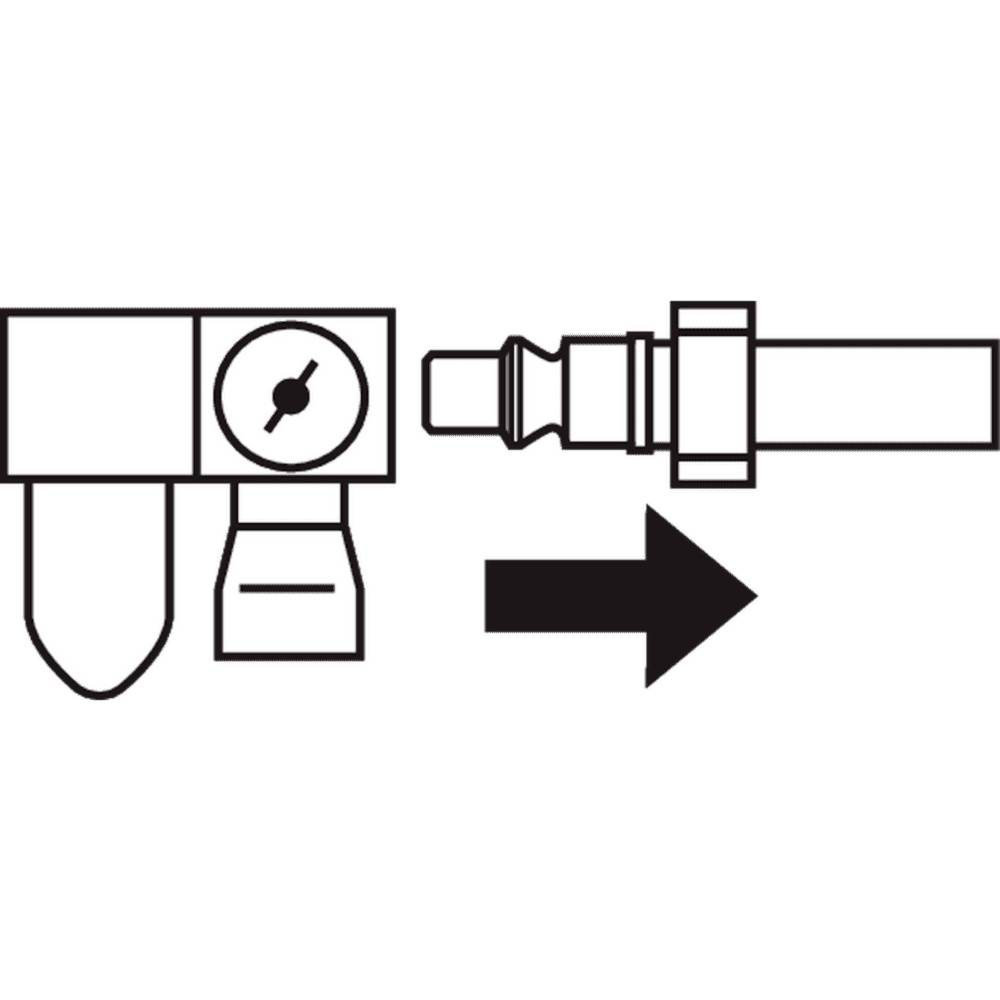

The drive is equipped with a collet chuck tool mount for shank tools. The exhaust air duct is at the front. The narrow two-hand compressed air drive must be used with oil. Through the lever valve, the drive has a dead man gear. 2 m air supply hose with 1/4" thread connection and plug-in socket with thread (STGI), chuck 6 mm, 2 wrench.
Technical data
- Operating pressure: 6.3 bar
- Power: 400 watts
- Speed: 22000 RPM
- Clamp clamp group: 20
- Valve version: Lever
- Metric width: 39 mm
- Air consumption, idle: 0.98 m³/min.
- Air consumption, with load: 0.87 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 320 mm
- Number of oil drops [min]: 4 drops
- Net weight: 1.17 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Front
- Height: 39 mm
Benefits:
- The exhaust air duct forwards allows it to blow away the dirt from the front when it is being used.
- Precise guidance by convenient two-handed operation.
Application recommendations:
- The drive can also be operated without oil, but this results in reduced service life as well as reduced speed and power.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Technical data
- Operating pressure: 6.3 bar
- Power: 400 watts
- Speed: 22000 RPM
- Clamp clamp group: 20
- Valve version: Lever
- Metric width: 39 mm
- Air consumption, idle: 0.98 m³/min.
- Air consumption, with load: 0.87 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 320 mm
- Number of oil drops [min]: 4 drops
- Net weight: 1.17 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Front
- Height: 39 mm
Benefits:
- The exhaust air duct forwards allows it to blow away the dirt from the front when it is being used.
- Precise guidance by convenient two-handed operation.
Application recommendations:
- The drive can also be operated without oil, but this results in reduced service life as well as reduced speed and power.
Safety Instructions:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Features
- Through its exhaust duct toward the front, it can blow away the worn dirt from the front in employment
- Precise guidance by comfortable two-handed operation.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure.
