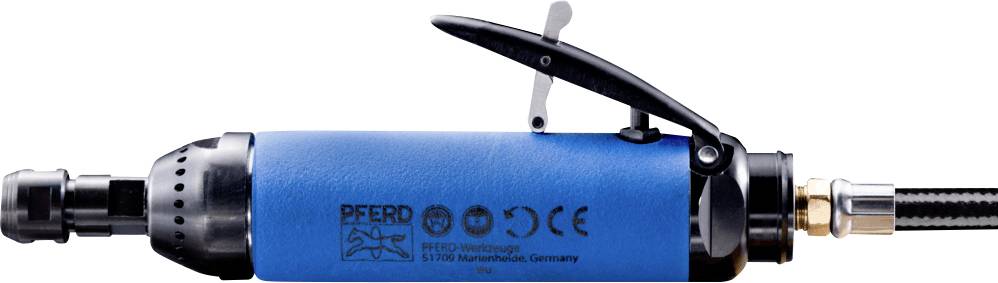

PFERD TOOLS PGS 6/160 HV Pneumatic straight grinder 6.3 bar
EAN:
Part number:
Item no:
Highlights & Details
PFERD compressed air straight grinder PGS 6/160 HV 16,000 RPM/650 watt
- - Operating pressure: 6.3 bar
- - Power: 650 watts
- - Speed: 16000 RPM
- - Clamp clamp group: 7
- - Valve version: Lever
- - Design: Without extension
- - Metric width: 41 mm
- - Air consumption, idle: 0.39 m³/min.
- - Air consumption, with load: 0.71 m³/min.
- - Incl. Ø Collet [mm]: 6 mm
- - Length metric: 218 mm
- - Number of oil drops [min]: 6 pieces
- - Net weight: 0.75 kg
- - Inner ø supply hose: 8 mm
- - Exhaust air outlet: Front
- - Height: 41 mm
Technical specifications
- Design: Without extension
- Product type
Pneumatic straight grinder
- Air consumption
0.39 m³/min
- Max. operating pressure
6.3 bar
- Rotational speed (max.)
16000 U/min
- Weight
0.75 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3374813 PFERD TOOLS PGS 6/160 HV Pneumatic straight grinder 6.3 bar
Description
The drive is equipped with a collet chuck tool mount for shank tools. The exhaust air duct is at the front. The handy compressed air drive must be operated with oil. 2 m air supply hose with 1/4" thread connection and plug-in socket with thread (STGI), chuck 6 mm, 2 wrench. Through the lever valve, the drive has a dead man gear.
Technical data
- Operating pressure: 6.3 bar
- Power: 650 watts
- Speed: 16000 RPM
- Clamp clamp group: 7
- Valve version: Lever
- Design: Without extension
- Metric width: 41 mm
- Air consumption, idle: 0.39 m³/min.
- Air consumption, with load: 0.71 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 218 mm
- Number of oil drops [min]: 6 pieces
- Net weight: 0.75 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Front
- Height: 41 mm
Benefits:
- Safe working by dead man connection.
- The exhaust air duct forwards allows it to blow away the dirt from the front when it is being used.
Ordering Information:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Technical data
- Operating pressure: 6.3 bar
- Power: 650 watts
- Speed: 16000 RPM
- Clamp clamp group: 7
- Valve version: Lever
- Design: Without extension
- Metric width: 41 mm
- Air consumption, idle: 0.39 m³/min.
- Air consumption, with load: 0.71 m³/min.
- Incl. Ø Collet [mm]: 6 mm
- Length metric: 218 mm
- Number of oil drops [min]: 6 pieces
- Net weight: 0.75 kg
- Inner ø supply hose: 8 mm
- Exhaust air outlet: Front
- Height: 41 mm
Benefits:
- Safe working by dead man connection.
- The exhaust air duct forwards allows it to blow away the dirt from the front when it is being used.
Ordering Information:
- The drive must be operated at the specified oil drop rate to prevent premature failure.
This text is machine translated.
Features
- Safe working with dead man's circuit
- The exhaust air duct forwards allows it to blow away the dirt from the front when it is being used.
Scope of delivery
- The drive must be operated at the specified oil drop rate to prevent premature failure.
