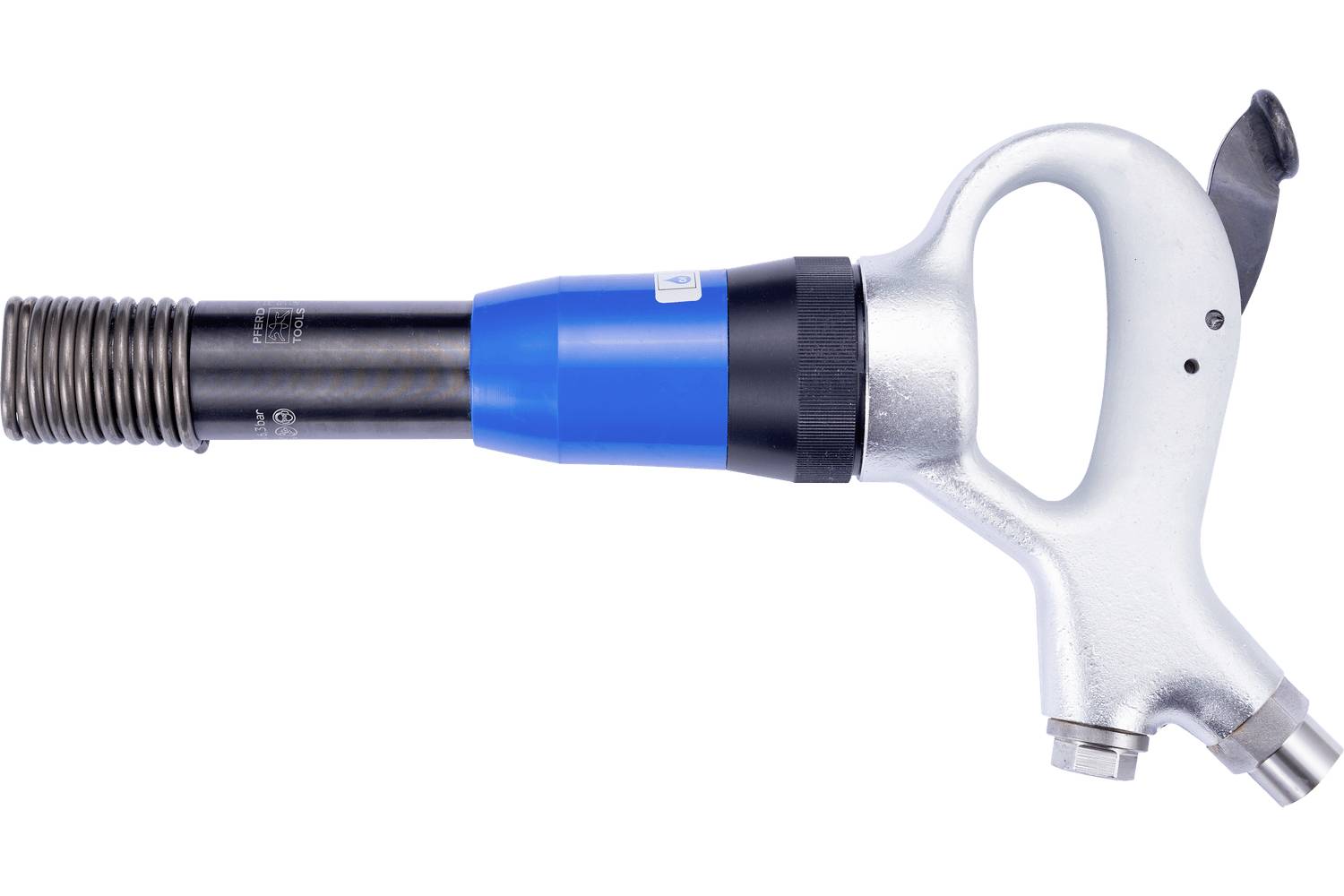

PFERD TOOLS PH 34 F EG05 Pneumatic hammer drill chisel
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS compressed air hammer PH 34 with fist grip Unit EG05 easily up to 3.4 kg
- Design: Fist grip closed
Technical specifications
- - Version: Floss handle closed
- - Metric width: 60 mm
- - Air consumption, idle: 0.4 m³/min.
- - Air consumption, with load: 0.4 m³/min.
- - Length metric: 344 mm
- - Number of oil drops [min]: 5 drops
- - Net weight: 3.4 kg
- - Air quality [DIN ISO]: 8573-1
- - Air quality [Particles/Water/Oil]: 2/2/4
- - Ambient temperature in operation: -10 | + 40
- - Minimum ø Inner inlet hose: 10 mm
- - ø piston: 20 mm
- - Exposure time: 1.8 hrs
- - Impact energy: 9.2 J
- - Plug-in group: EG05
- - Oil viscosity: 22-32 cSt
- - Max. Operating pressure 6.3 bar
- - Min. Operating pressure 3 bar
- - Silencer: Plastic
- - Hammer stroke rate: 2300 min¹
- - Uncertainty K - noise: 3 db(A)
- - Uncertainty K - vibration: 0.3 m/s²
- - Vibration emission values ah/ah, SG: 28927-9
- - Vibration emission values ah/ah, SG: 10.5 m/s²
- - Exhaust air outlet: Front
- - Height: 188 mm
- - Stroke length: 90 mm
- Product type
Pneumatic hammer drill chisel
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773012 PFERD TOOLS PH 34 F EG05 Pneumatic hammer drill chisel
Description
The compressed air hammer with handle has an exhaust air guide at the front. It is one of the light pneumatic chisel hammers of up to 3.4 kg. The drive is equipped with a socket for chisel tools. The lightweight pneumatic chisel hammers from PFERD TOOLS are suitable Ideal for cleaning foundry products, for easy work in the construction industry as well as for body construction – for example, for splitting the crimping or welding seams. Thanks to their light stop, the finely adjustable impact strength and the low recoil in combination with round guide bushes, they are also ideally suited for light to very light rivet work. Their light weight makes them ideal for renovation work at large heights. The chisel hammer with air outlet at the front and plastic silencer is suitable for all chisels of the insertion group EG05 and has a chisel holding spring to hold the chisel. 1x chisel holding spring MHF 31, 1x damping ring DR D15X7.
Benefits:
- Controllable from three bar.
- A well-thought-out overall concept makes the hammers powerful and versatile.
- Ideal handling thanks to closed thumb grip.
Ordering Information:
- The drive is supplied without the supply hose and grommet.
This text is machine translated.
Benefits:
- Controllable from three bar.
- A well-thought-out overall concept makes the hammers powerful and versatile.
- Ideal handling thanks to closed thumb grip.
Ordering Information:
- The drive is supplied without the supply hose and grommet.
This text is machine translated.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure. Steel sleeves are mandatory for the safe use of compressed air hammers.
