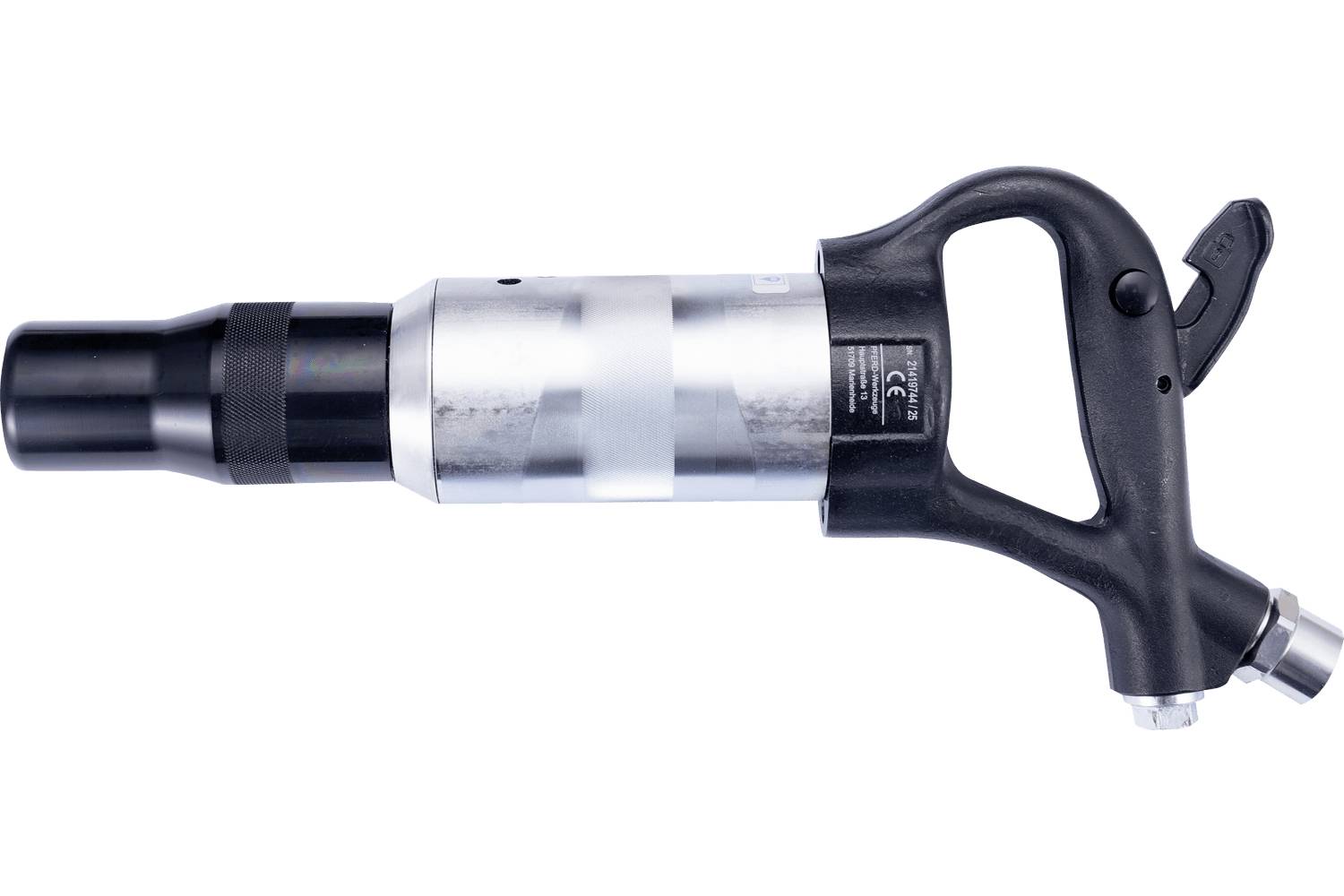

PFERD TOOLS PH 66 F-SK EG08 Pneumatic hammer drill chisel
EAN:
Part number:
Item no:
Highlights & Details
PFERD TOOLS compressed air chisel hammer PH 66 with handle SK plug-in group EG08 up to 6.6 kg for heavy use
- Design: Fist grip closed
- Chisel holder: Screw cap
Technical specifications
- - Version: Floss handle closed
- - Metric width: 75 mm
- - Air consumption, idle: 0.4 cfm
- - Air consumption, for load: 0.4 cfm
- - Length metric: 430 mm
- - Number of oil drops [min]: 5 drops
- - Net weight: 6.6 kg
- - Air quality [DIN ISO]: 8573-1
- - Air quality [Particles/Water/Oil]: 2/2/4
- - Ambient temperature in operation: -10 | + 40
- - Chisel holder: Screw cap
- - Minimum ø Inner inlet hose: 13 cm
- - ø piston: 29 mm
- - Exposure time: 5.4 hrs
- - Impact energy: 16 J
- - Plug-in unit: EG08
- - Oil viscosity: 22-32 cSt
- - Max. Operating pressure 6.3 bar
- - Min. Operating pressure 3 bar
- - Silencer: Metal
- - Hammer stroke rate: 1930 min¹
- - Uncertainty K - noise: 3 db(A)
- - Uncertainty K - vibration: 0.3 m/s²
- - Vibration emission values ah/ah, SG: 28927-9
- - Vibration emission values ah/ah, SG: 6.1 m/s²
- - Exhaust air outlet: Front
- - Height: 190 mm
- - Stroke length: 95 mm
- Product type
Pneumatic hammer drill chisel
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773015 PFERD TOOLS PH 66 F-SK EG08 Pneumatic hammer drill chisel
Description
The compressed air hammer with handle has an exhaust air guide at the front. It is one of the pneumatic chisel hammers of up to 6.6 kg and is suitable for heavy use. The drive is equipped with a socket for chisel tools. Chisel hammers with metal sound absorber from PFERD TOOLS are extremely vibration-damped. An integrated air cushion protects against wear in case of idling - even with an operating pressure of up to 9 bar. The robust design is also Ideal for use in hot and melting operations. High-quality tool for wiping metal melts as well as for breaking out and cleaning of converters, casting pans, induction furnaces, cupolas and melting pots. The chisel hammer with air outlet at the front and metal silencer is suitable for all chisels of the insertion group EG08 and has a protective cap to hold the chisel instead of a chisel holding spring. Suitable for hot and melting applications. 1x screw cap SK PH 66 F-SK, 1x damping ring D24.7X45.
Benefits:
- Controllable from three bar.
- Vibration and noise-damped.
- Durable thanks to robust design.
- Safe working with a reliable lock.
- Ideal handling thanks to closed thumb grip.
Ordering Information:
- The drive is supplied without the supply hose and grommet.
This text is machine translated.
Benefits:
- Controllable from three bar.
- Vibration and noise-damped.
- Durable thanks to robust design.
- Safe working with a reliable lock.
- Ideal handling thanks to closed thumb grip.
Ordering Information:
- The drive is supplied without the supply hose and grommet.
This text is machine translated.
Hints
The drive must be operated at the specified oil drop rate to prevent premature failure. Steel sleeves are mandatory for the safe use of compressed air hammers.
